Открытый узел

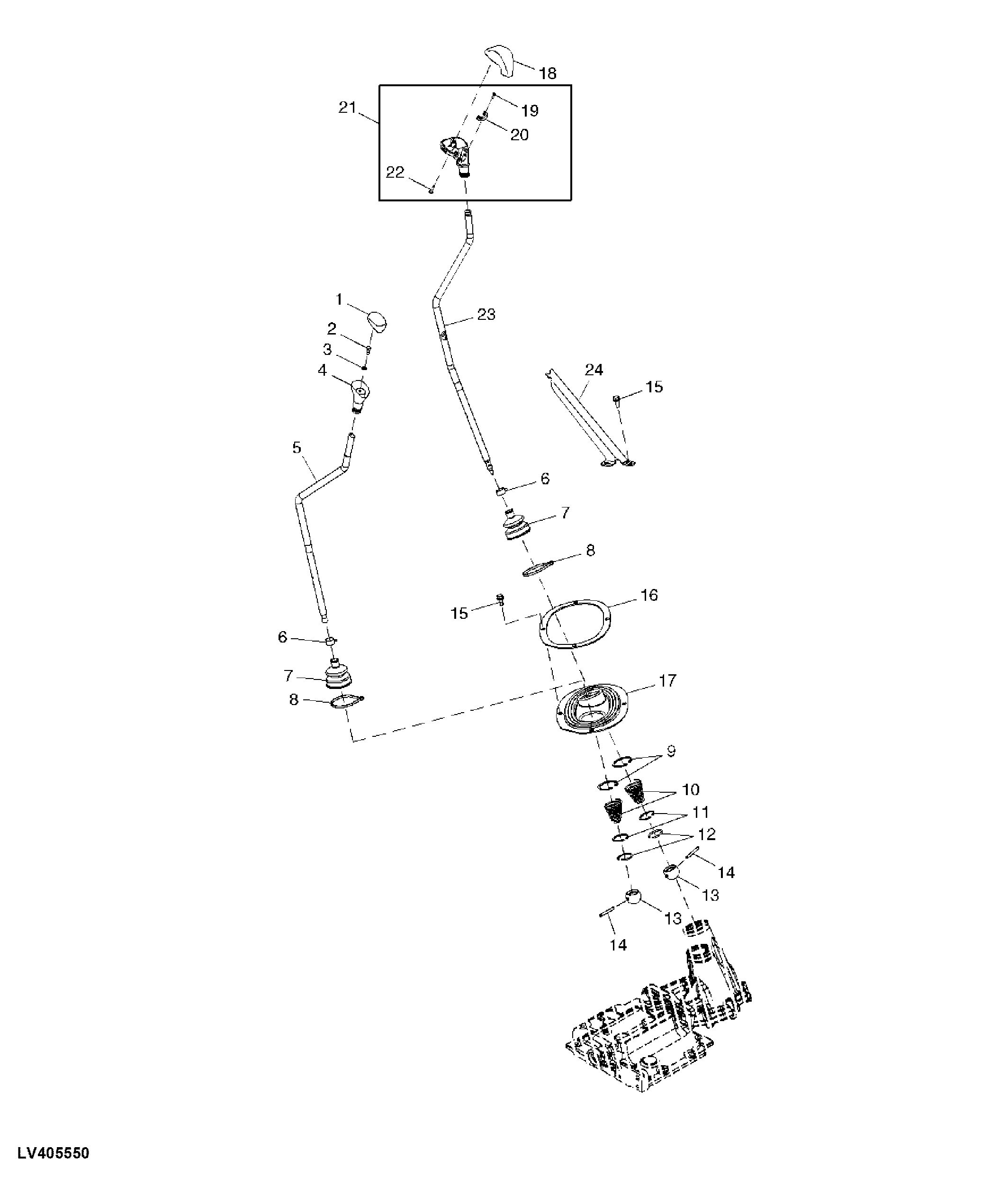

Gear / Range Shift (SyncShuttle™ / PowrReverser™ Transmission Without Electro-Hydraulic HI/LO)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R137725	1	Insert	(ISOLATED OPEN OPERATOR STATION / CAB) (WITH CREEPER)
1	R252584	1	Insert	(ISOLATED OPEN OPERATOR STATION / CAB) (WITHOUT CREEPER) (SUB FOR R137724)
2	19M7560	1	Cap Screw	(ISOLATED OPEN OPERATOR STATION / CAB) M6 X 16
3	24M7088	1	Washer	(ISOLATED OPEN OPERATOR STATION / CAB) 6.600 X 12 X 1.600 mm
4	L77805	1	Knob	(ISOLATED OPEN OPERATOR STATION / CAB)
5	R184004	1	Lever	(ISOLATED OPEN OPERATOR STATION / CAB)
6	R137939	2	Clamp	(ISOLATED OPEN OPERATOR STATION / CAB)
7	SU293622	2	Boot	(ISOLATED OPEN OPERATOR STATION / CAB) (SUB FOR R137144)
8	R105388	2	Tie Band	(ISOLATED OPEN OPERATOR STATION / CAB)
9	40M7227	2	Snap Ring	(ISOLATED OPEN OPERATOR STATION / CAB)
10	R137142	2	Compression Spring	(ISOLATED OPEN OPERATOR STATION / CAB)
11	40M1860	2	Snap Ring	(ISOLATED OPEN OPERATOR STATION / CAB)
12	R137143	2	Ring	(ISOLATED OPEN OPERATOR STATION / CAB)
13	R183921	2	Ball	(ISOLATED OPEN OPERATOR STATION / CAB)
14	R183865	2	Pin	(ISOLATED OPEN OPERATOR STATION / CAB)
15	19M7866	6	Screw	(ISOLATED OPEN OPERATOR STATION / CAB) M8 X 20, HS=10.9
16	R140933	1	Retainer	(ISOLATED OPEN OPERATOR STATION / CAB)
17	R140932	1	Boot	(ISOLATED OPEN OPERATOR STATION / CAB)
18	R199554	1	Insert	(ISOLATED OPEN OPERATOR STATION / CAB) (POWRREVERSER™ TRANSMISSION WITHOUT ELECTRO-HYDRAULIC HI LO)
18	R218826	1	Insert	(ISOLATED OPEN OPERATOR STATION / CAB) (SYNCSHUTTLE™ TRANSMISSION)
19	37M7340	2	Bolt	(ISOLATED OPEN OPERATOR STATION / CAB)
20	AL162803	1	Clamp	(ISOLATED OPEN OPERATOR STATION / CAB) (SUB FOR L157162)
21	AL162799	1	Grip	(ISOLATED OPEN OPERATOR STATION / CAB) (SUB FOR L157144
22	37M7389	3	Screw	(ISOLATED OPEN OPERATOR STATION / CAB)
23	R200298	1	Gearshift Lever	(ISOLATED OPEN OPERATOR STATION / CAB)
24	R182219	1	Indicator	(ISOLATED OPEN OPERATOR STATION / CAB)

Gear / Range Shift (SyncShuttle™ / PowrReverser™ Transmission Without Electro-Hydraulic HI/LO)

Нет текстового описания
