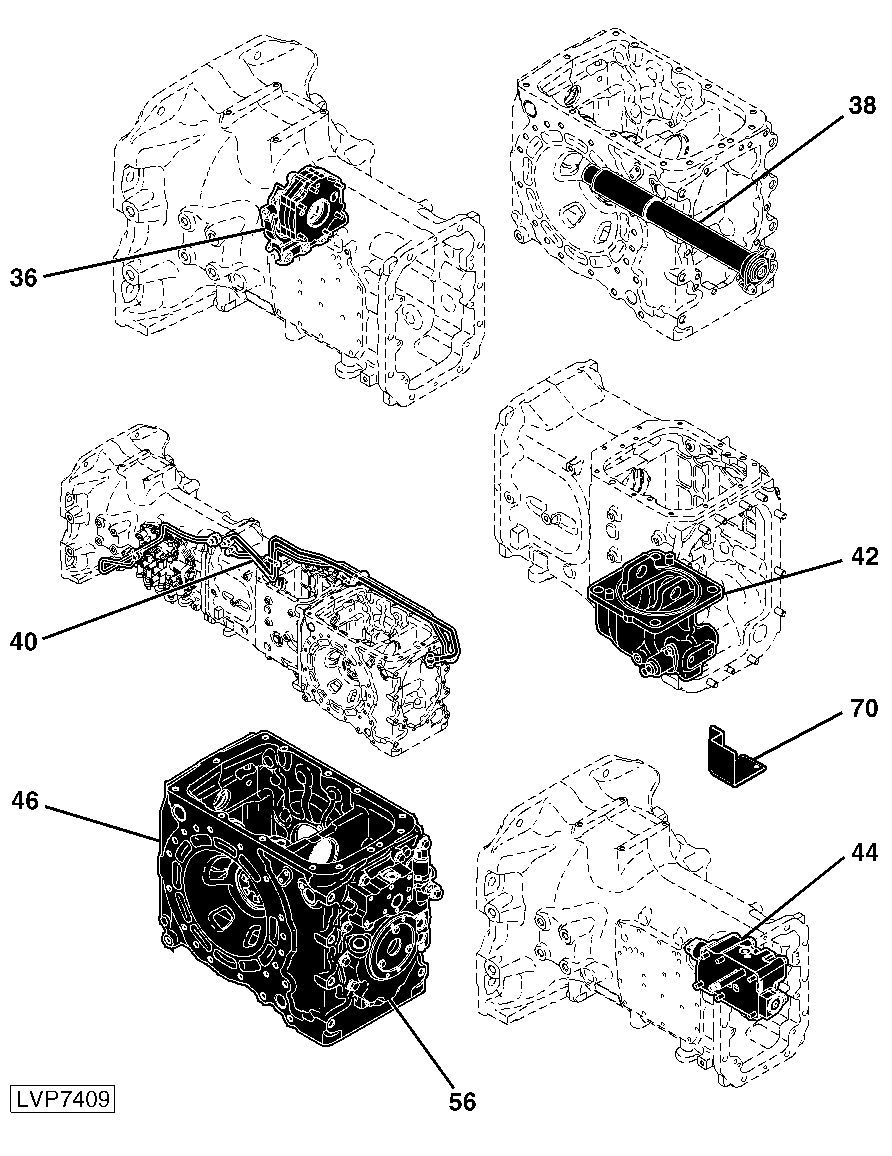

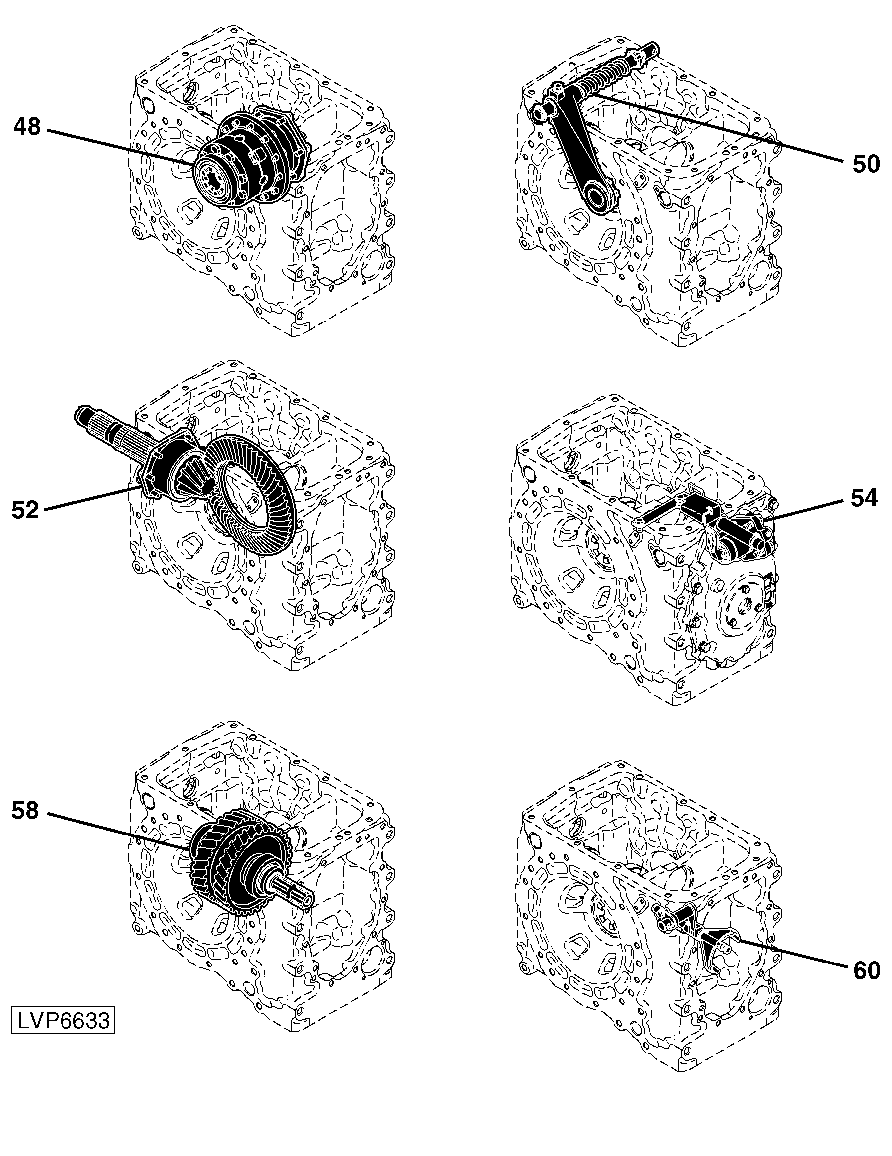

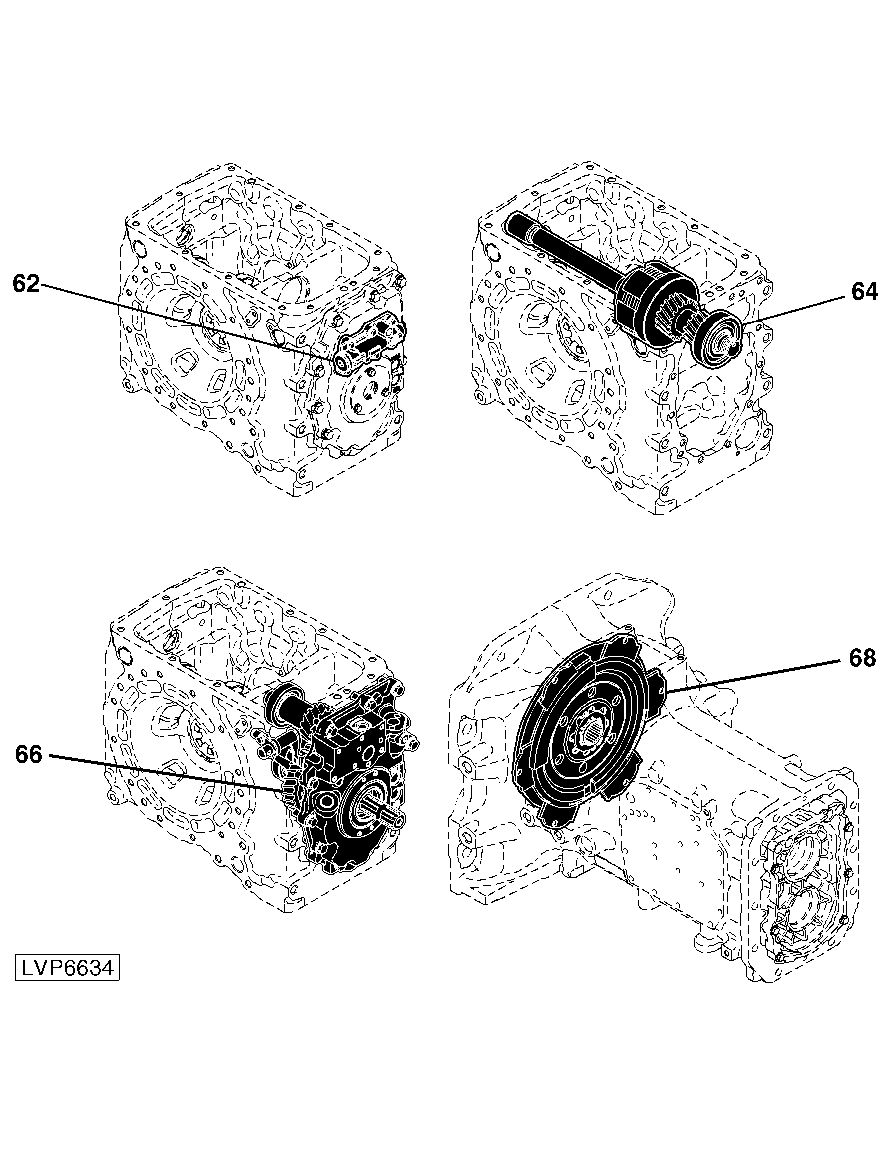

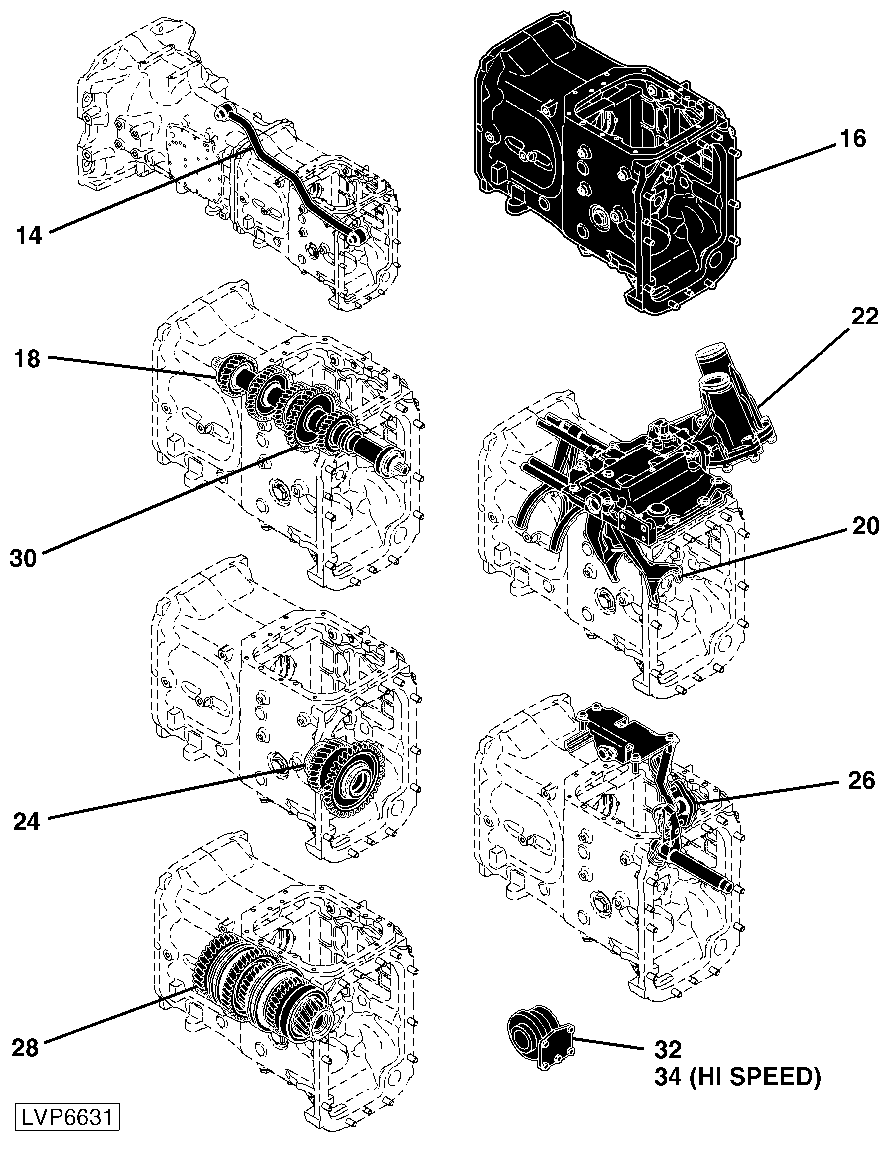

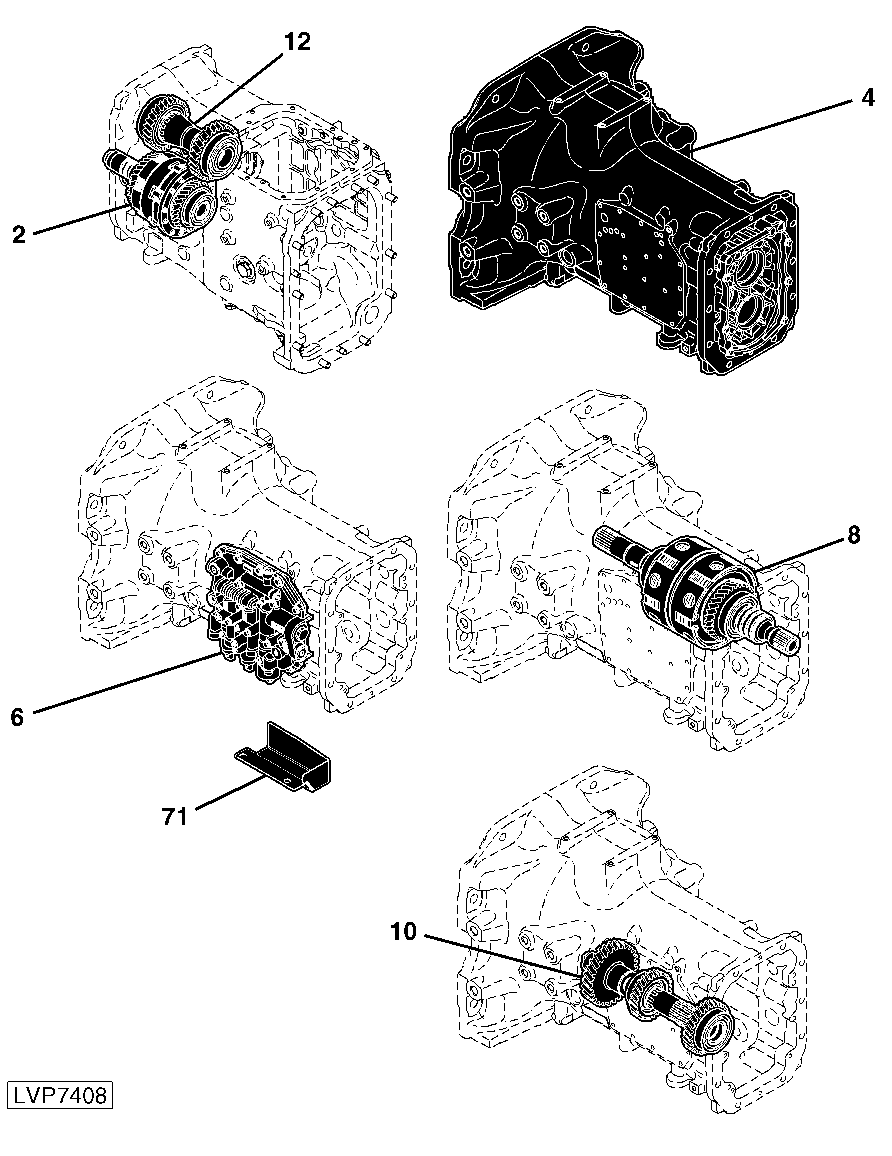

520 Powerreverser Transmission (P/R) With Electro-Hydraulic (EH) Hi/Low Tractor

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	RANGE REDUCTION SHAFT	-
-	-	1	OUTPUT SHAFT	-
-	-	1	PARK PAWL	-
-	-	1	POWRREVERSER™	-
-	-	1	PTO BRAKE	-
-	-	1	PTO COVER	-
-	-	1	PTO PINION SHAFT	-
-	-	1	PTO SHIFT	-
-	-	1	PTO VALVE	-
-	-	1	OIL STRAINER	-
-	-	1	REVERSER CONTROL VALVE	-
-	-	1	RING GEAR AND PINION SHAFT	-
-	-	1	SHIFT HOUSING	-
-	-	1	TRANSMISSION BOTTOM SHAFT	-
-	-	1	TRANSMISSION HOUSING	-
-	-	1	TRANSMISSION LINES AND FITTINGS	-
-	-	1	TRANSMISSION TOP SHAFT AND GEARS	-
-	-	1	WIRING SHIELD	-
-	-	1	DIFFERENTIAL LOCK	-
-	-	1	CLUTCH	-
-	-	1	Clutch Housing, W/ Electro-Hydraulic (Hi/Lo), Yanmar	-
-	-	1	CONNECT SHAFT	-
-	-	1	COUNTERSHAFT	-
-	-	1	CREEPER KIT	-
-	-	1	DIFFERENTIAL DRIVE SHAFT	-
-	-	1	DIFFERENTIAL GEARS AND CARRIER	-
-	-	1	DIFFERENTIAL HOUSING	-
-	-	1	540/1000 RPM PTO UNIT	-
-	-	1	ELECTRO-HYDRAULIC HI/LO VALVE	-
-	-	1	GEAR SHIFT	-
-	-	1	HI/LO CLUTCH SHAFT	-
-	-	1	HIGH SPEED CREEPER KIT	-
-	-	1	HYDRAULIC PIPE	-
-	-	1	MFWD DROP GEAR BOX	-
-	-	1	MFWD SOLENOID SHIELD	-
-	-	1	OIL PUMP	-

520 Powerreverser Transmission (P/R) With Electro-Hydraulic (EH) Hi/Low Tractor
