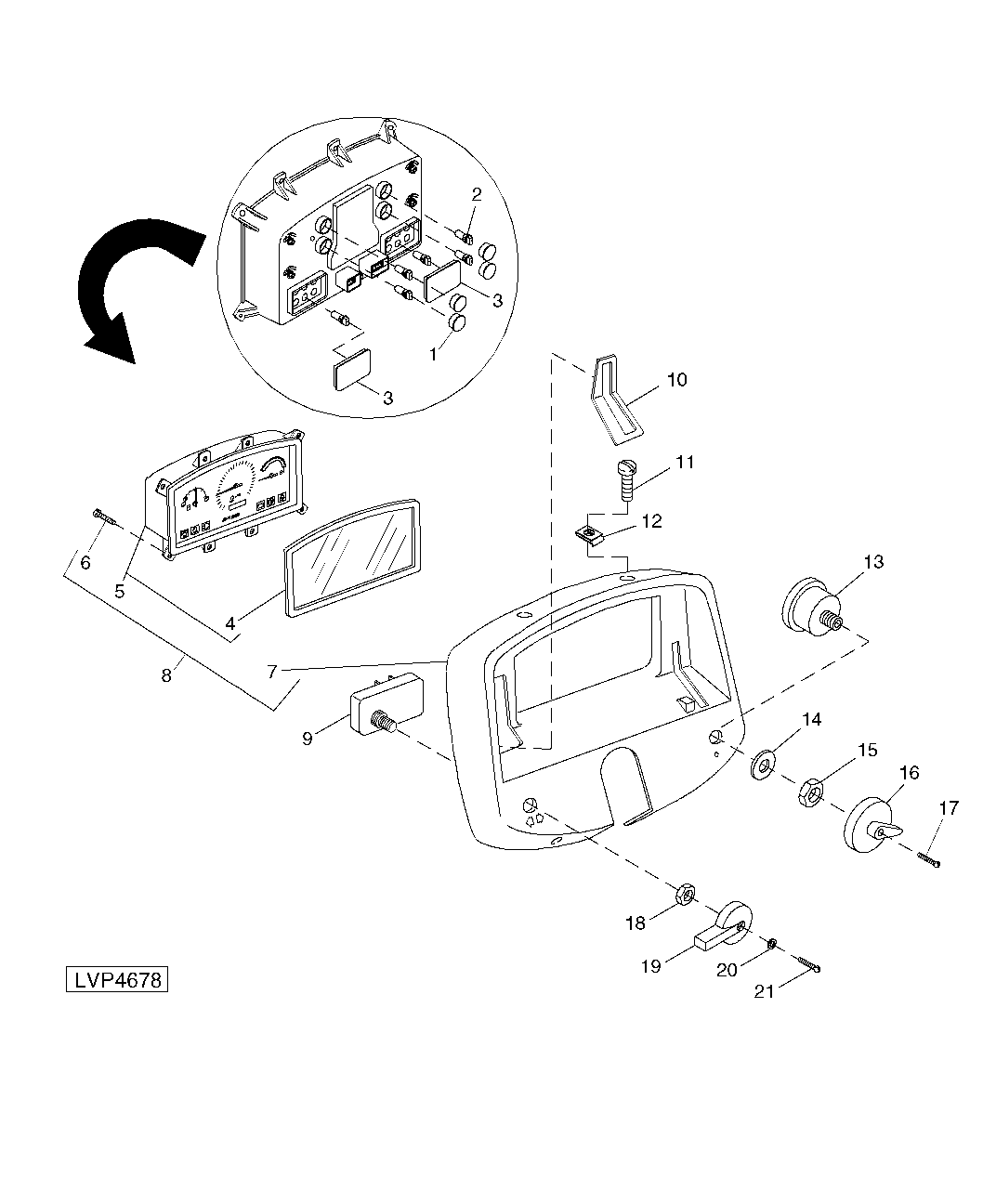

Instrument Panel (Without CAB) ( - 438002)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R138421	1	Plug	(EXCEPT SN - 5320N: 338113) TACHOMETER SWITCH ACCESS HOLE
1	R137731	5	Plug	(EXCEPT SN - 5320N: 338113)
2	57M7926	10	Lamp	(EXCEPT SN - 5320N: 338113)
3	R137732	2	Plug	(EXCEPT SN - 5320N: 338113)
4	RE72944	1	Lens Kit	(EXCEPT SN - 5320N: 338113) ANTI-FOG GLASS (INCL RETAINER AND LENS)
5	RE72883	1	Instrument Cluster	(EXCEPT SN - 5320N: 338113) (SUB RE232258) (ALSO ORDER LVB24863)
5	RE72883	1	Instrument Cluster	(EXCEPT SN - 5320N: 338113) (SUB RE232258)
6	37M7181	8	Screw	(EXCEPT SN - 5320N: 338113) M4 X 12, SELF-TAPPING
7	R217299	1	Instrument Panel	(EXCEPT SN - 5320N: 338113) (SUB FOR R135409)
8	RE72880	1	Instrument Panel	(EXCEPT SN - 5320N: 338113) (SUB RE232258 AND R217299) (ALSO ORDER LVB24863)
8	RE72880	1	Instrument Panel	(EXCEPT SN - 5320N: 338113) (SUB RE232258 AND R217299)
9	AR64422	1	Turn Signal Controller	(EXCEPT SN - 5320N: 338113)
10	R137121	1	Guide	(EXCEPT SN - 5320N: 338113)
11	21M7296	4	Screw	(EXCEPT SN - 5320N: 338113) M6 X 20
12	R135870	4	Nut	(EXCEPT SN - 5320N: 338113)
13	AL65432	1	Toggle/Rocker Switch	(EXCEPT SN - 5320N: 338113) LIGHTS
14	12H292	1	Lock Washer	(EXCEPT SN - 5320N: 338113) 1/2"
15	A4655R	1	Nut	(EXCEPT SN - 5320N: 338113)
16	R122871	1	Knob	(EXCEPT SN - 5320N: 338113)
17	21H973	1	Screw	(EXCEPT SN - 5320N: 338113) 0.164" X 3/8"
18	R56410	1	Nut	(EXCEPT SN - 5320N: 338113) 19.050 mm (3/4")
19	R56026	1	Knob	(EXCEPT SN - 5320N: 338113)
20	12H233	1	Lock Washer	(EXCEPT SN - 5320N: 338113) 1/8"
21	21H1372	1	Screw	(EXCEPT SN - 5320N: 338113) 1/8" X 3/8"

Instrument Panel (Without CAB) ( - 438002)
