Control Support Wiring (Without CAB) (438001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8281	1	Elec. Connector Housing	(TO FRONT WIRING HARNESS)
2	RE43737	1	Elec. Connector Accessory	-
3	37H91	2	Screw	0.190" X 1/2"
4	57M7689	3	Fuse	10 AMPS
4	57M7690	2	Fuse	15 AMPS
4	57M7691	5	Fuse	20 AMPS
4	57M8163	3	Fuse	30 AMPS
5	RE183935	1	Key	PKG OF2
6	R44342	1	Nut	-
7	24H1447	1	Washer	1-1/32" X 1-1/2" X 0.036"
8	LVA21501	1	Rotary Switch	SUB FOR RE61717
9	RE46736	1	Electrical Connector Assy	KEY SWITCH
10	-	1	Part 13	CONVENIENCE OUTLET
11	14M7184	2	Nut	M12
12	14M7297	2	Nut	M5
13	-	2	Part 16	M5, STARTER RELAY
14	-	2	Part 17	M8, STARTER RELAY
15	-	6	Part 18	LIGHT SWITCH
16	-	2	Part 19	HORN SWITCH
17	-	1	Part 20	INSTRUMENT CLUSTER
18	57M7260	1	Elec. Connector Housing	INSTRUMENT CLUSTER
19	57M7262	1	Elec. Connector Housing	INSTRUMENT CLUSTER
20	57M7183	1	Elec. Connector Accessory	TURN SIGNAL SWITCH
21	ET15766	1	Elec. Connector Housing	WORKLIGHT RELAY
22	ET15766	1	Elec. Connector Housing	ACCESSORY RELAY
23	57M7182	1	Elec. Connector Housing	DIODE MODULE
24	57M7256	1	Elec. Connector Housing	WARNING HORN
25	RE12363	1	Electrical Connector Assy	NEUTRAL START SWITCH
26	RE12364	1	Electrical Connector Assy	HANDBRAKE SWITCH
27	57M7257	1	Elec. Connector Housing	LEFT TAIL/WARNING LIGHT
28	57M7263	1	Elec. Connector Housing	PTO SWITCH
29	-	1	Part 32	REAR GROUND
30	57M7257	1	Elec. Connector Housing	RIGHT TAIL/WARNING LIGHT
31	-	2	Part 34	FUEL LEVEL SENDER
32	-	2	Part 35	REAR FLOOD LIGHT
33	57M7328	1	Elec. Connector Housing	SEAT SWITCH
34	57M7309	1	Elec. Connector Housing	7-PIN TRAILER CONNECTOR
35	57M7260	1	Elec. Connector Housing	7-PIN TRAILER CONNECTOR
36	RE231428	1	Wiring Harness	(SUB FOR RE220729)
37	RE262484	1	Diode	(SUB FOR RE153894)
38	LVA13729	2	Relay	(SUB FOR RE68327)
39	SJ15809	6	Relay	(SUB FOR LVA13711)
40	RE224165	1	Wiring Harness	(USE WITH RE224163)
41	RE224163	1	Alarm System	-
42	RE49726	1	Support	-
43	57M9178	1	Elec. Connector Accessory	-

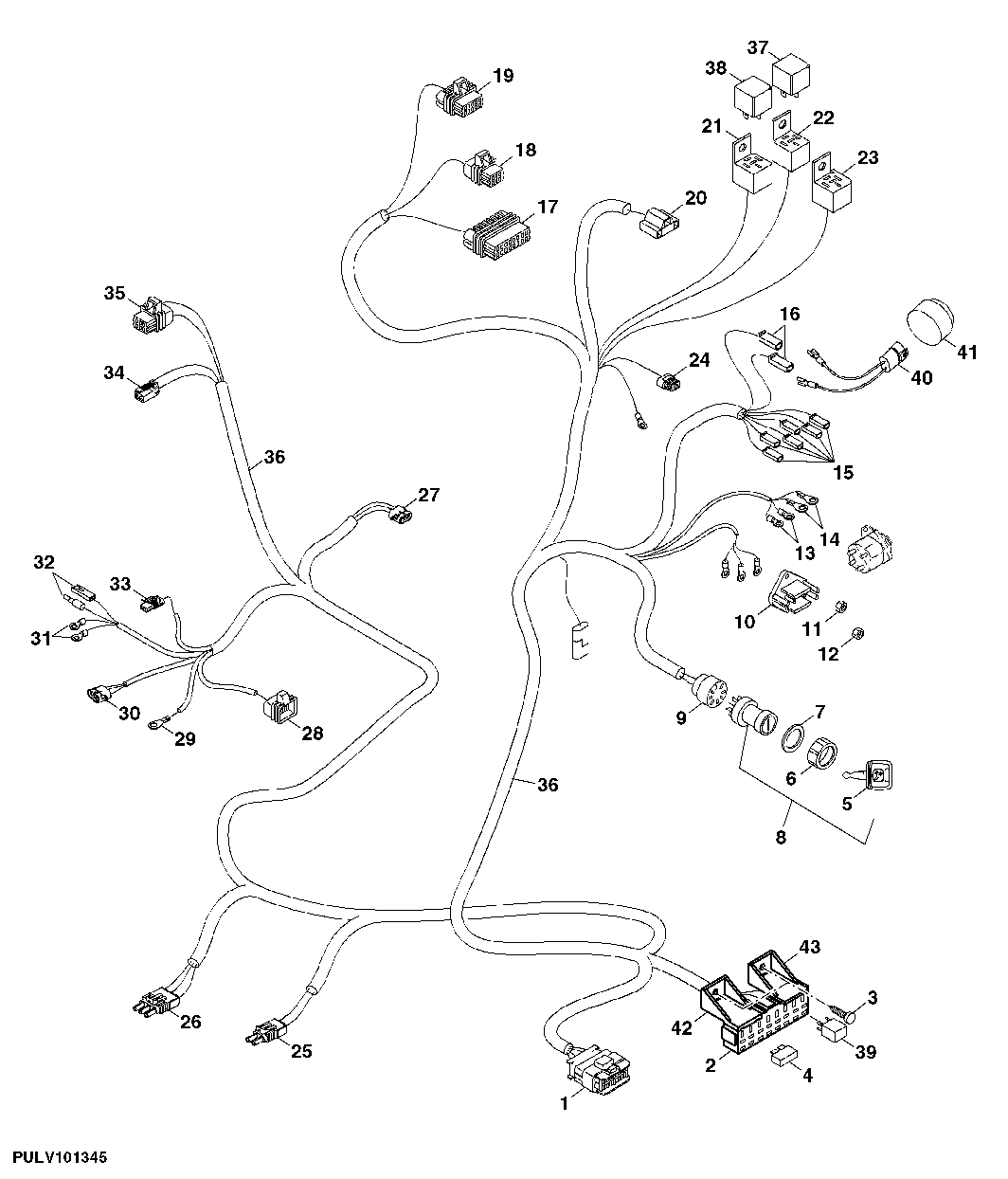

Control Support Wiring (Without CAB) (438001 - )
