52 Power Train, 12X12 PowrReverser™

52 Power Train, 12X12 PowrReverser™

52 Power Train, 12X12 PowrReverser™

52 Power Train, 12X12 PowrReverser™

52 Power Train, 12X12 PowrReverser™

52 Power Train, 12X12 PowrReverser™

52 Power Train, 12X12 PowrReverser™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

52 Power Train, 12X12 PowrReverser™

Нет текстового описания

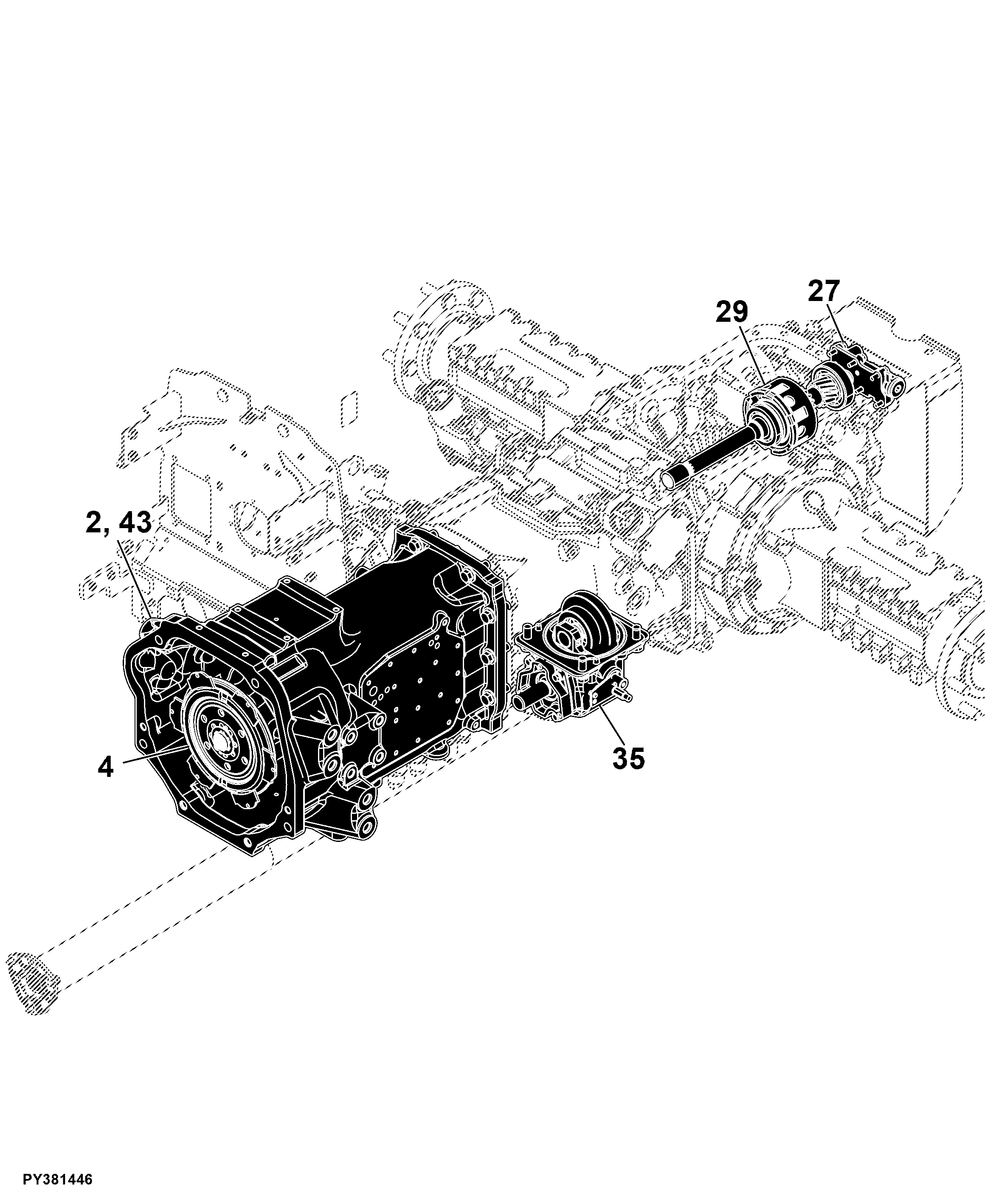

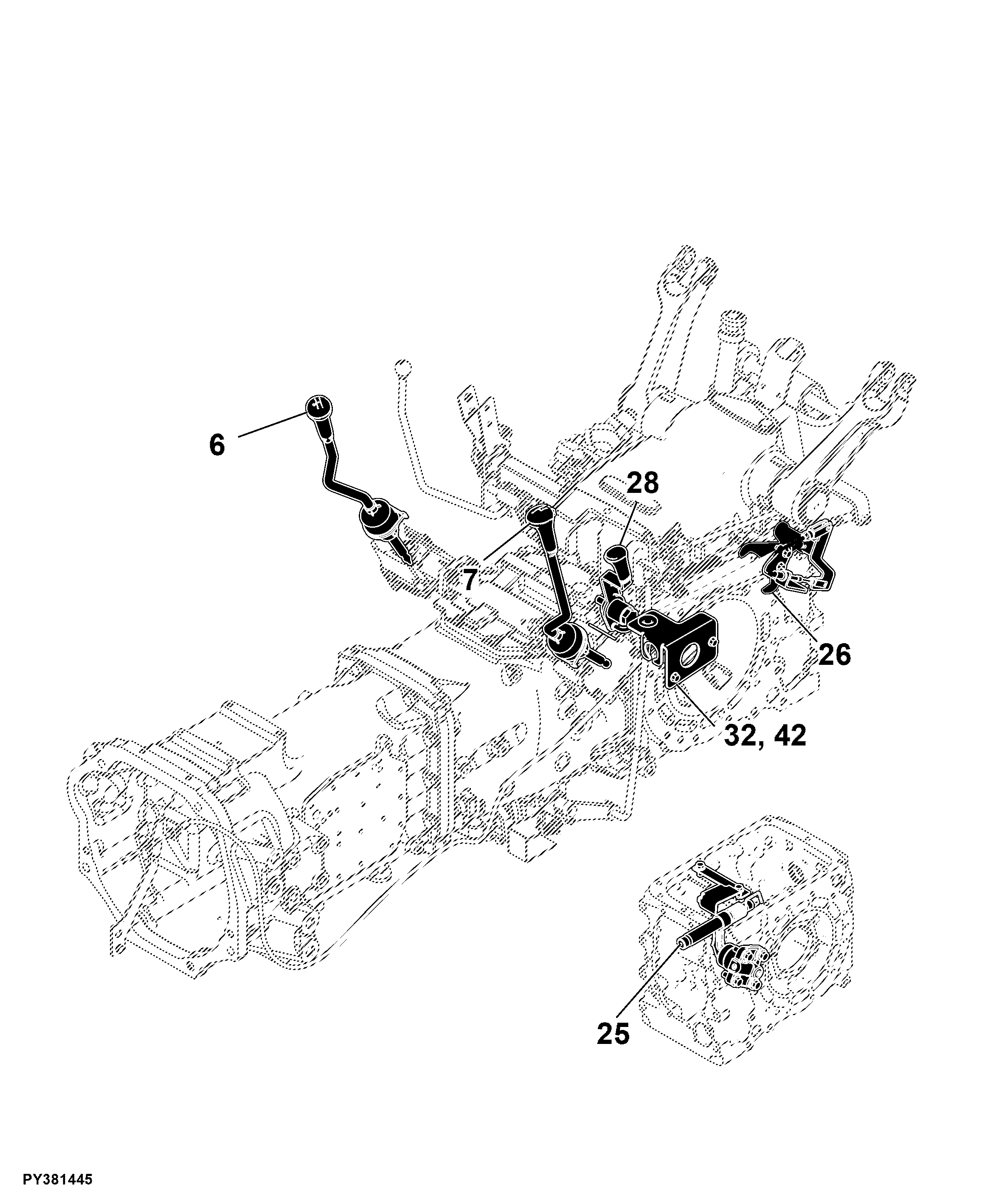

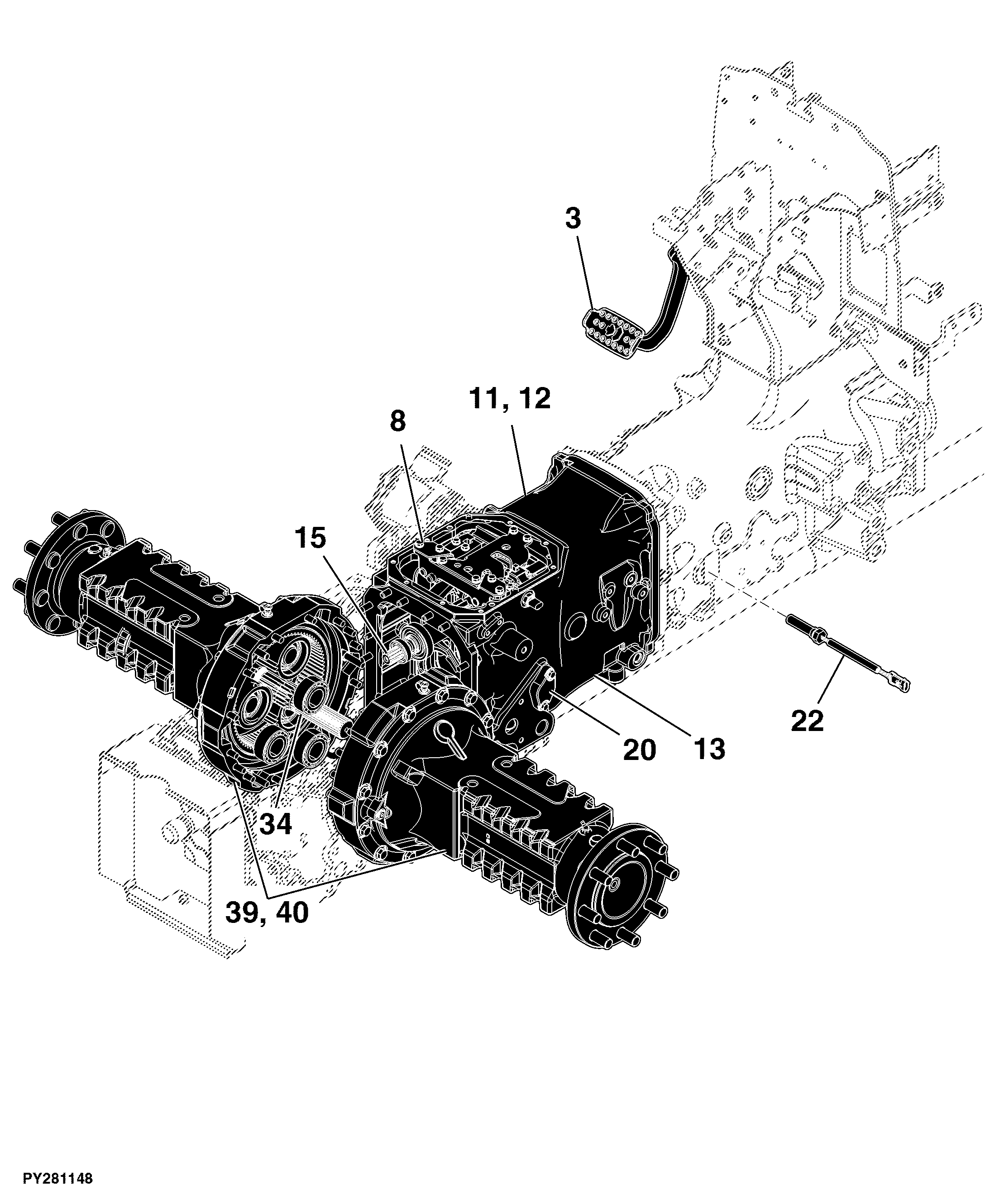

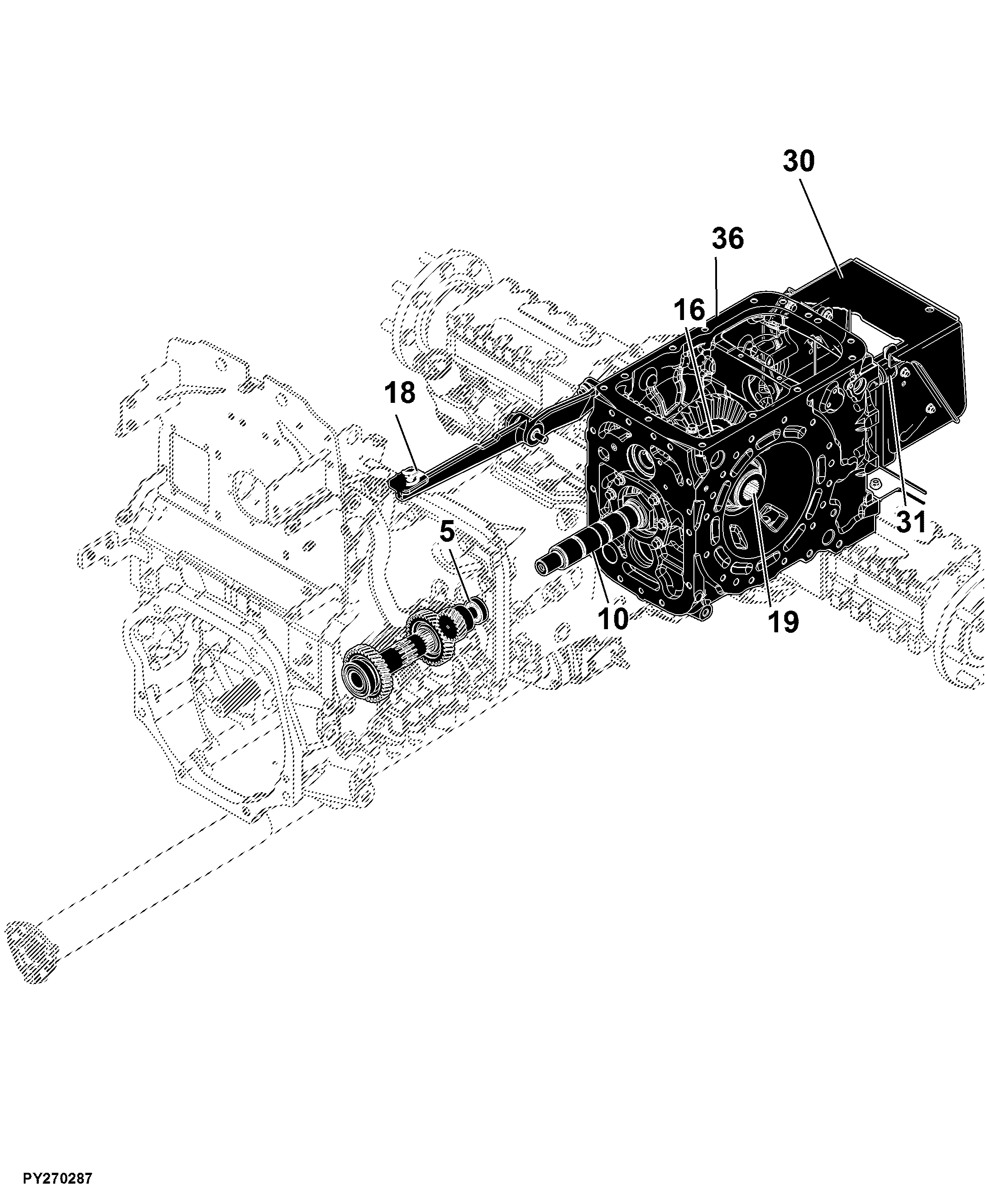

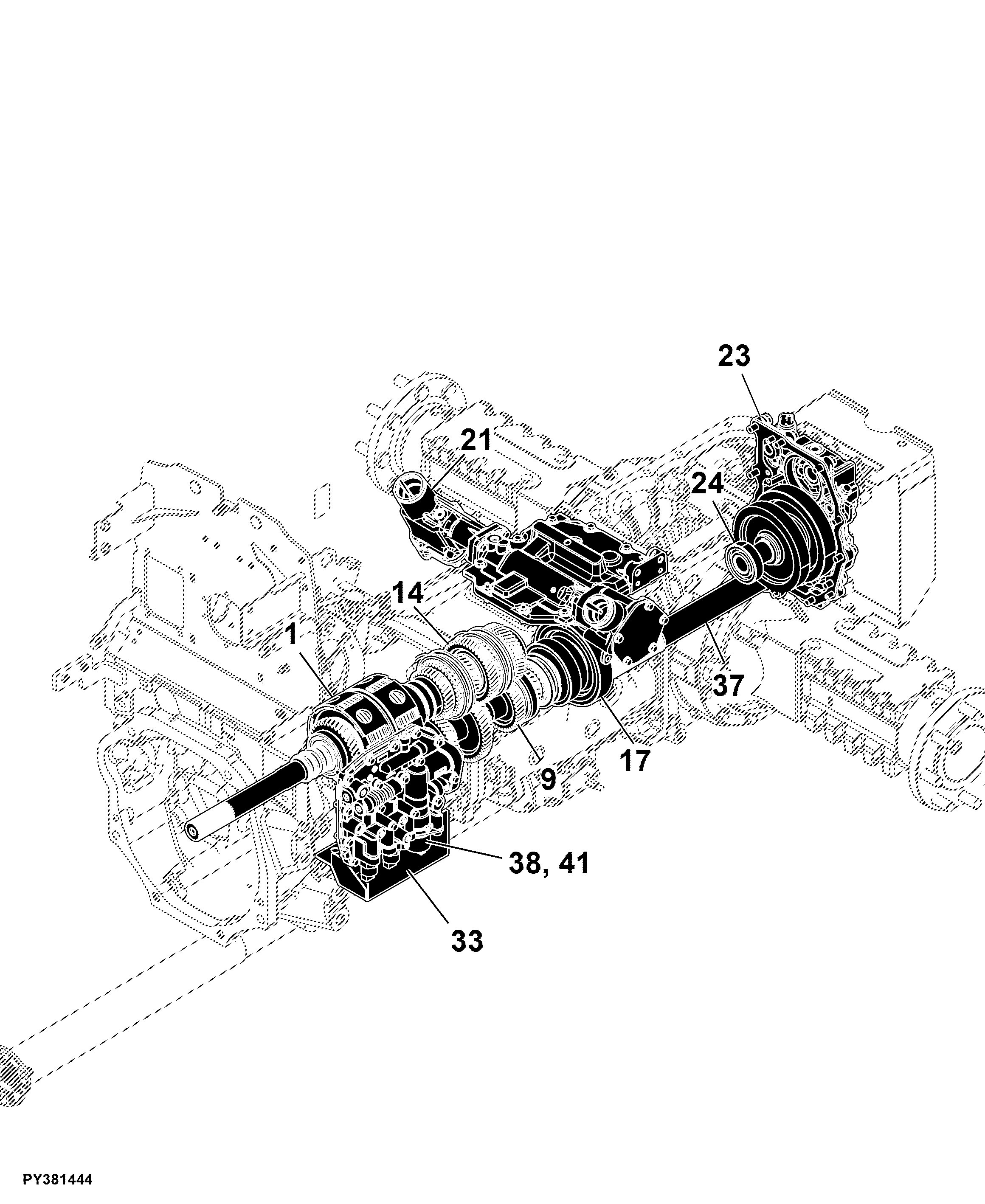

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Range Shifter, 12 X 4 Gear Pro™ Transmission	-
-	-	1	Planetary Assembly, 40T	-
-	-	1	PTO Control Valve	-
-	-	1	PTO Cover	-
-	-	1	PTO Guard, PowrReverser™	-
-	-	1	PTO Input Shaft, SyncShuttle™	-
-	-	1	PTO Input Shaft, W/ Electro-Hydraulic	-
-	-	1	PTO Lever, Dual Clutch Dual PTO	-
-	-	1	PTO Output Shaft	-
-	-	1	PTO Shield	-
-	-	1	PTO Shifter Assembly	-
-	-	1	Range Reduction Shaft, 12 X 4 Gear Pro™ Transmission	-
-	-	1	Range Reduction Shaft, W/ Electro-Hydraulic (Hi/LO)	-
-	-	1	Range Shift Lever	-
-	-	1	Parking Lock	-
-	-	1	Rear Axle, 35 Teeth	-
-	-	1	Rear Axle, 40 Teeth	-
-	-	1	Ring Gear and Pinion Shaft	-
-	-	1	Shifter Case, Both Hand Control	-
-	-	1	Torsional Damper	-
-	-	1	Transmission Case	-
-	-	1	Transmission Case, 12 X 4 Transmission	-
-	-	1	Transmission Case, 2WD	-
-	-	1	Transmission Cover	-
-	-	1	Transmission Housing	-
-	-	1	Transmission Sensor, PowrReverser™	-
-	-	1	Transmission Top Shaft, PowrReverser™	-
-	-	1	Differential Drive Shaft Gears	-
-	-	1	Bracket, W/O MFWD	-
-	-	1	Clutch Assembly	-
-	-	1	Clutch Counter Shaft	-
-	-	1	Clutch Housing	-
-	-	1	Clutch Housing, 12 X 4 Gear Pro™ Transmission	-
-	-	1	Clutch Housing, Wet Clutch	-
-	-	1	Control Valve Assembly, PowrReverser™	-
-	-	1	Counter Shaft	-
-	-	1	Counter Shaft, 12 X 4 Gear Pro™ Transmission	-
-	-	1	Countershaft, PTO Output, 12 X 4 Transmission	-
-	-	1	Cover, W/O Creeper	-
-	-	1	Differential Case	-
-	-	1	Bevel Gear Drive, 12 X 4 Gear Pro™ Transmission	-
-	-	1	Differential Gear Assembly	-
-	-	1	Differential Lock	-
-	-	1	Differential Lock Pedal	-
-	-	1	Dual PTO Lever, PowrReverser™	-
-	-	1	Electro-Hydraulic Clutch Pedal And Linkage, PowrReverser™, OOS	-
-	-	1	Electro-Hydraulic PTO Clutch Brake	-
-	-	1	Fork and Shifter Assembly	-
-	-	1	Gear Case, MFWD W/ Hand Brake	-
-	-	1	Gear Shift Lever	-
-	-	1	Guard, Shield Assembly	-
-	-	1	Hydraulic Pressure Valve, Wet Clutch	-
-	-	1	Oil Strainer	-
