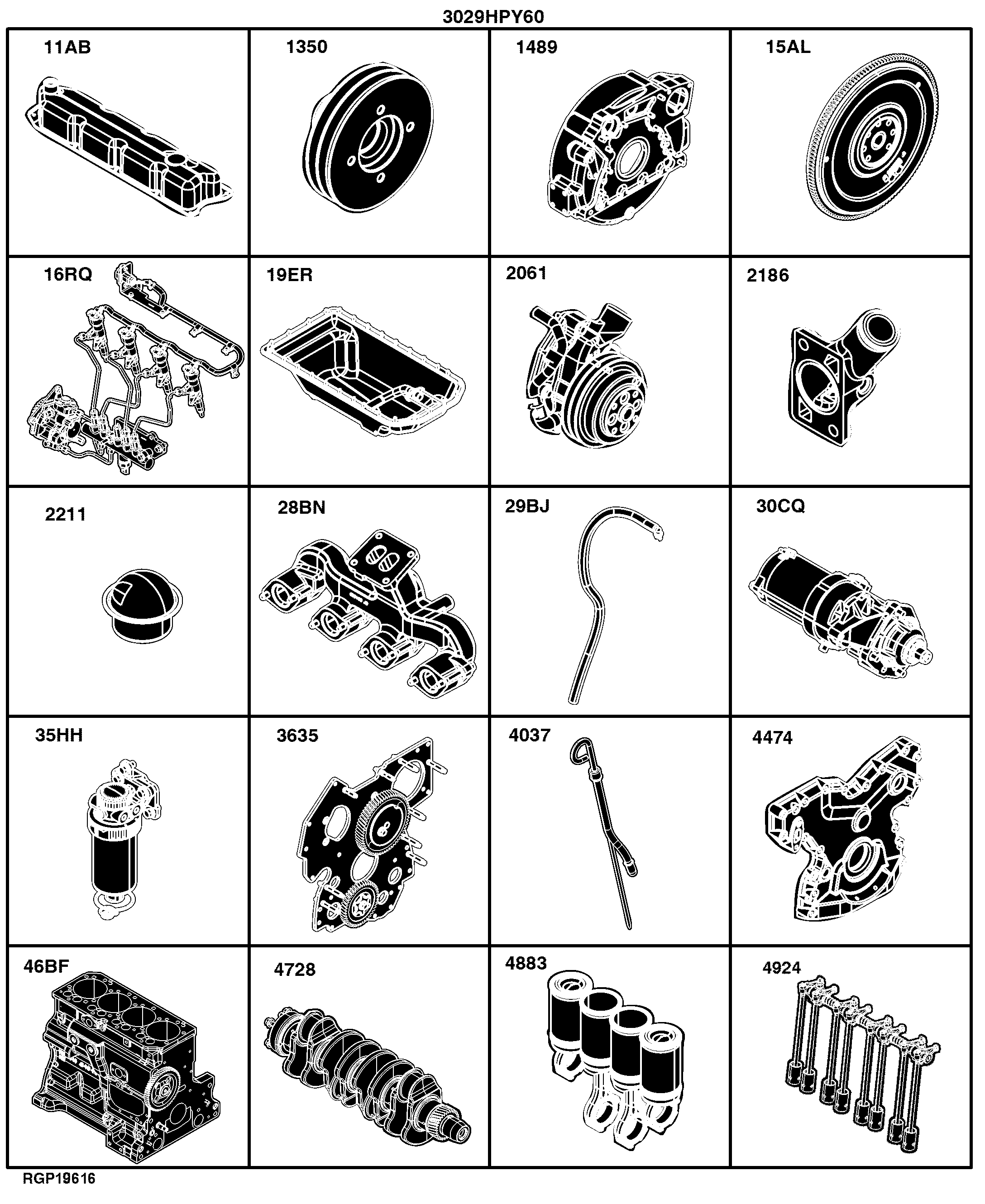

22 Diesel Engine 3029HPY60-DZ106808-PY12054-PY12055

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	5968 Oil Cooler and Oil Filter	-
-	-	1	62AR Alternator Mounting	-
-	-	1	65F7 Turbocharger	-
-	-	1	6627 Temperature Switch	-
-	-	1	7638 Oil Pressure Switch	-
-	-	1	9858 Lift Straps	-
-	-	1	9901 Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Engine Gasket Kit	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	5246 Gear Driven Auxiliary Drive	-
-	-	1	9901 Engine Hardware Kit	-
-	-	1	9901 Engine Overhaul Kit 1/2	-
-	-	1	9901 Engine Overhaul Kit 2/2	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Thrust Washer	-
-	-	1	9901 Water Pump Repair Kit	-
-	-	1	30DG Starter Motor (XXXXXX - )	-
-	-	1	1350 Crankshaft Pulley and Damper	-
-	-	1	1489 Flywheel Housing	-
-	-	1	15AL Flywheel	-
-	-	1	16RQ Fuel Injection Pump	-
-	-	1	19ER Oil Pan	-
-	-	1	2061 Water Pump	-
-	-	1	2186 Thermostat Cover	-
-	-	1	2211 Thermostat	-
-	-	1	28BN Exhaust Manifold	-
-	-	1	29BJ Vent System	-
-	-	1	30CQ Starter Motor (XXXXXX - )	-
-	-	1	11AB Valve Cover	-
-	-	1	35HH Final Fuel Filter	-
-	-	1	3635 Front Plate	-
-	-	1	4037 Engine Oil Dipstick	-
-	-	1	4474 Timing Gear Cover	-
-	-	1	46BF Cylinder Block ( - XXXXXX)	-
-	-	1	46BS Cylinder Block (XXXXXX - )	-
-	-	1	4728 Crankshaft and Bearings	-
-	-	1	4883 Connecting Rods and Pistons	-
-	-	1	4924 Valve Actuating Mechanism	-
-	-	1	5043 Engine Oil Pump	-
-	-	1	5146 Cylinder Head with Valves	-

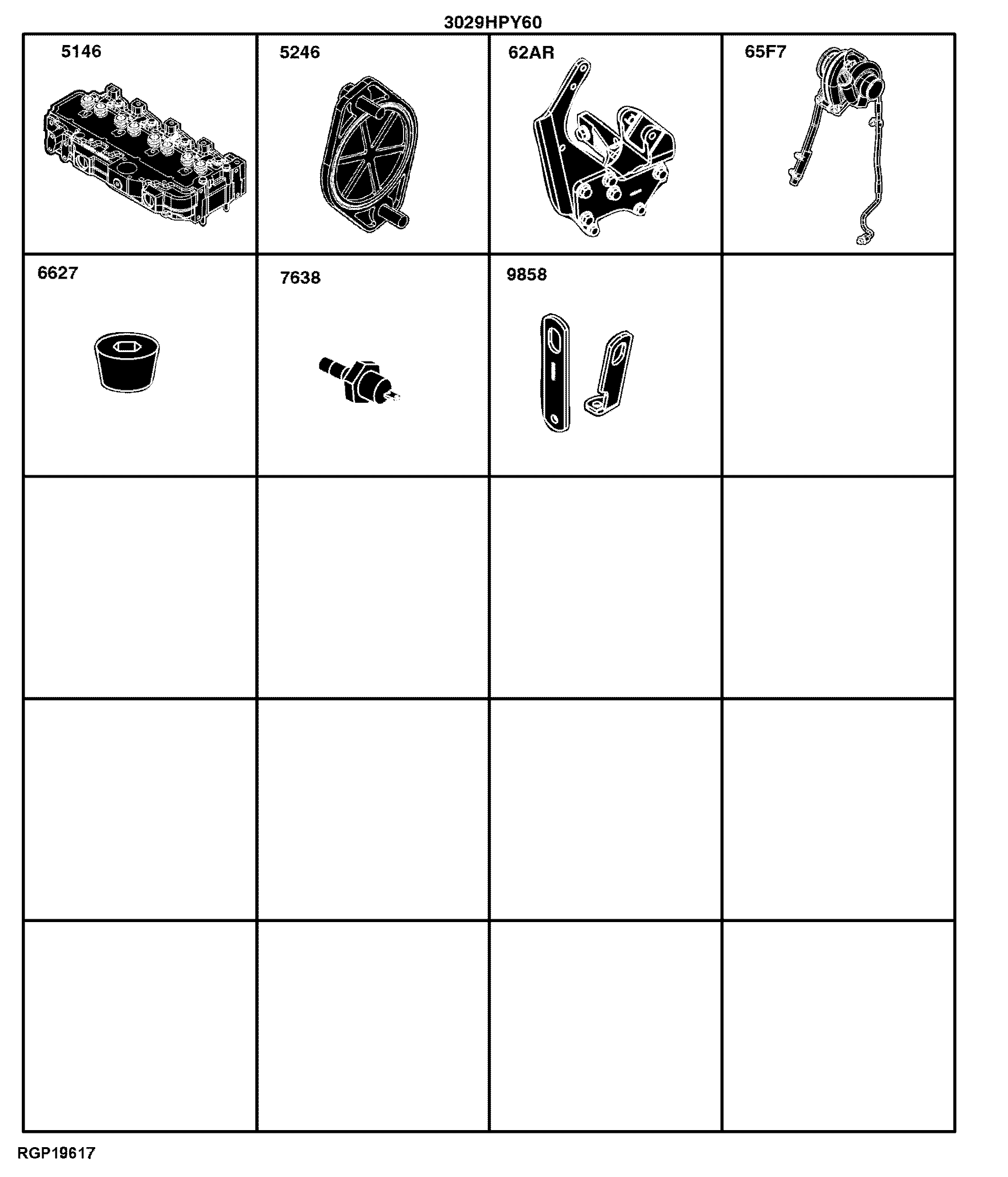

22 Diesel Engine 3029HPY60-DZ106808-PY12054-PY12055

Нет текстового описания
