WINDSHIELD, COMPONENTS WINDSHIELD WIPER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

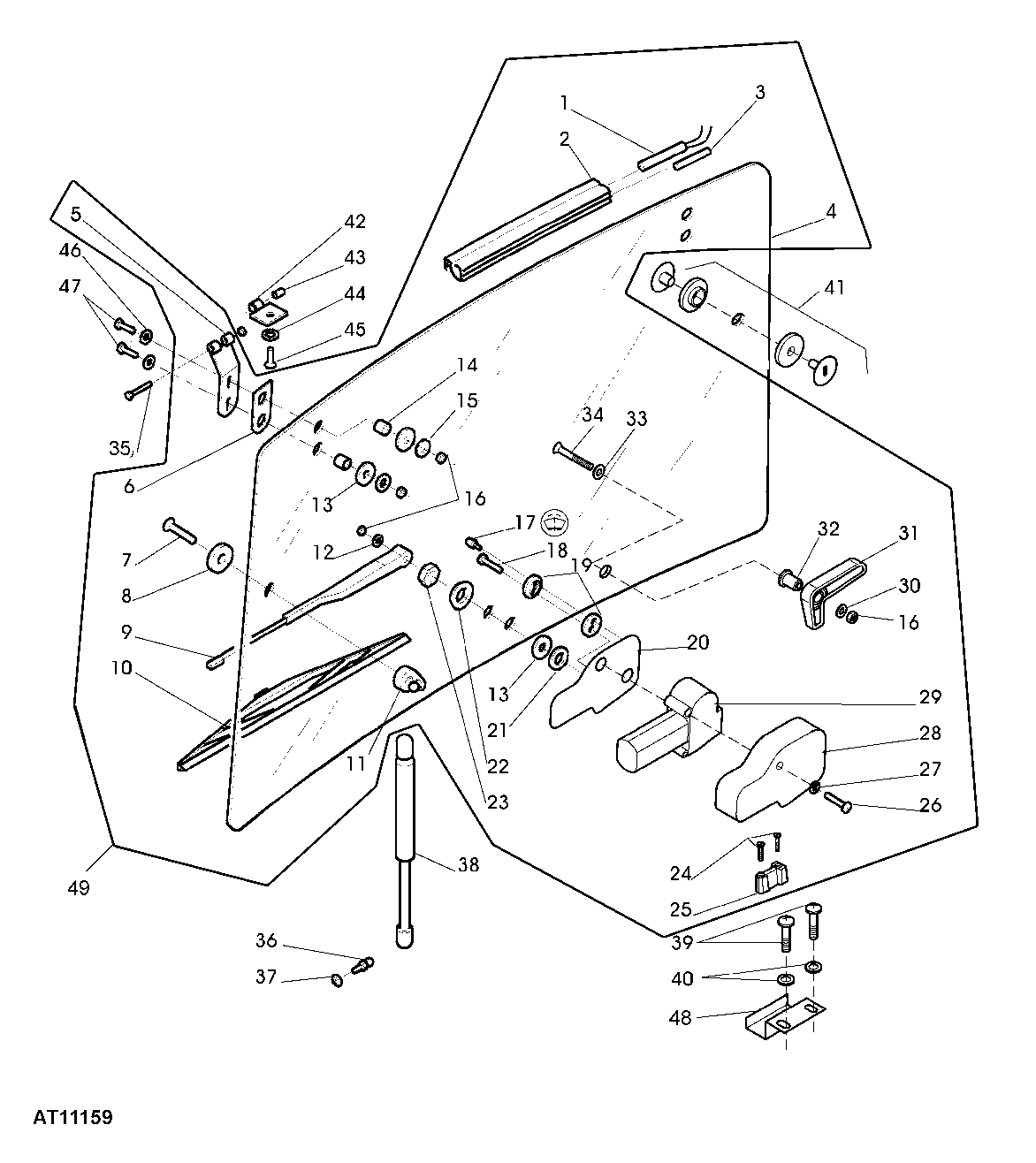

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	ER047283	1	Wiring Harness	-
2	ER047177	1	Weatherstrip	-
3	ER047183	1	Hose	-
4	ER047354	1	Windowpane	-
5	ER047169	1	Hinge	LH
5	ER047170	1	Hinge	RH
6	ER047153	2	Isolator	-
7	19M8703	2	Screw	M8 X 30, (SUB FOR ER020492 APPL)
8	ER047199	2	Washer	-
9	ER047116	1	Wiper Arm	-
10	ER047355	1	Blade	LGTH= 410 MM
11	ER047030	2	Bracket	-
12	24M7095	1	Washer	8.400 X 15 X 1.600 mm, (SUB FOR ER023109 APPL)
13	ER047056	4	Bushing	-
14	ER047120	4	Bushing	-
15	24H1299	4	Washer	3/8" X 1-1/4" X 0.065", (SUB FOR ER023068 APPL)
16	14M7273	6	Nut	M8, (SUB FOR ER022116 APPL)
17	ER047031	1	Nozzle	NLA (ORD ER261953)
17	ER261953	1	Nozzle	-
18	21M7441	1	Screw	M6 X 30, (SUB FOR ER047318 APPL)
19	ER047213	2	Washer	-
20	ER047097	1	Label	-
21	ER047324	1	Washer	16 X 32MM
22	ER047215	1	Washer	-
23	L37276	1	Nut	(SUB FOR ER047293 APPL)
24	19M6755	2	Cap Screw	M6 X 35, (SUB FOR ER020758 APPL)
25	ER047071	1	Stop	-
26	19M7603	1	Screw	M6 X 20, (SUB FOR ER020749 APPL)
27	24M7054	1	Washer	6.400 X 12 X 1.600 mm, (SUB FOR ER023066 APPL)
28	ER047347	1	Shield	(SUB FOR ER047216 APPL)
29	ER047208	1	Wiper Motor	(SUB FOR ER047207, ER047348 APPL)
30	24M7100	4	Washer	6.600 X 22 X 2 mm, (SUB FOR ER047325 APPL)
31	ER047072	1	Handle	-
32	ER047122	1	Spacer	-
33	ER047199	1	Washer	-
34	19M8701	1	Screw	M8 X 70, (SUB FOR ER047317 APPL)
35	19M7269	2	Cap Screw	M8 X 50, (SUB FOR ER020798 APPL)
36	R97588	2	Ball Stud	(SUB FOR ER047299 APPL)
37	24M7095	1	Washer	8.400 X 15 X 1.600 mm, (SUB FOR ER023109 APPL)
38	AL71414	2	Gas Operated Cylinder	(WITH HORIZONTAL EXHAUST) LGTH= 585MM, (SUB FOR ER047190 APPL)
38	AL71413	2	Gas Operated Cylinder	(WITH VERTICAL EXHAUST) LGTH= 285MM, (SUB FOR ER047187 APPL)
39	21M7267	2	Screw	M6 X 20, (SUB FOR ER021636 APPL)
40	ER263443	2	Disk	-
41	ER263445	2	Gasket Kit	-
42	ER047168	2	Support	-
43	ER047191	2	Bushing	8 X 12MM
44	24M7028	2	Washer	10.500 X 20 X 2 mm, (SUB FOR ER047323 APPL)
45	R113996	2	Screw	(SUB FOR ER020490 APPL)
46	24M7298	4	Washer	8.400 X 25 X 2 mm, (SUB FOR ER047322 APPL)
47	19M7513	4	Cap Screw	M8 X 30, (SUB FOR ER020793 APPL)
48	ER263444	1	Holder	-
49	ER047334	1	Tune-Up Kit	FI
..	ER047346	1	Kit	FI

WINDSHIELD, COMPONENTS WINDSHIELD WIPER
