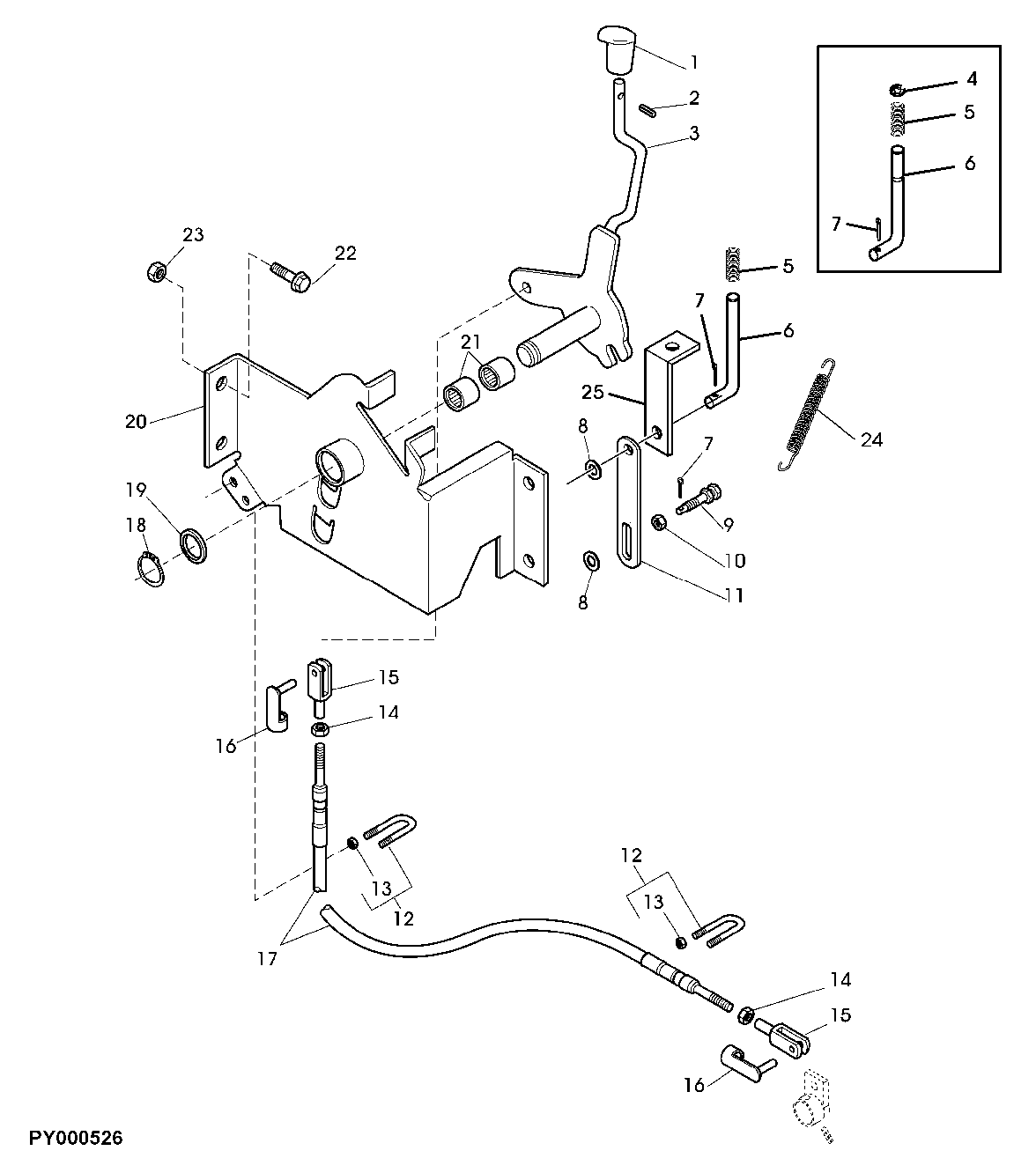

REVERSE LEVER AND CABLE (SYNCHRONIZED REVERSER TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	ER197317	1	Knob	-
2	34M5798	1	Spring Pin	3 X 14 mm, (SUB FOR ER024330 APPL)
3	ER193831	1	Lever	-
4	40M7041	1	Snap Ring	(SUB FOR ER024709 APPL)
5	P2251B	1	Spring	-
6	R121906	1	Pin	(WITHOUT CAB) (30 KM/H AND WITHOUT MFWD)
6	ER196703	1	Screw	(WITHOUT CAB) (30 KM/H AND WITHOUT MFWD) (ORD W/ ER196702) (SUB FOR R121906 APPL)
6	R121906	1	Pin	(WITH CAB) (40 KM/H, WITH MECHANICAL HI-LO TRANSMISSION AND WITH MFWD)
6	ER196703	1	Screw	(WITH CAB) (40 KM/H, WITH MECHANICAL HI-LO TRANSMISSION AND WITH MFWD) (ORD W/ ER196702) (SUB FOR R121906 APPL)
7	ER025553	2	Cotter Pin	-
8	24M7054	2	Washer	6.400 X 12 X 1.600 mm, (SUB FOR ER023066 APPL)
9	R121907	1	Bolt	-
10	14M7274	1	Nut	M10, (SUB FOR ER022119 APPL)
11	R121904	2	Strap	6.6 X 12 X 1.6MM
12	RE58527	2	U-Bolt	-
13	14H650	4	Nut	5/16"
14	14M7194	2	Nut	M6
15	ER025661	1	Yoke	-
16	ER025660	1	Spring Locking Pin	-
17	ER196222	1	Push Pull Cable	-
17	ER203487	1	Push Pull Cable	(SUB FOR ER196222 APPL)
18	40M7163	1	Snap Ring	(SUB FOR ER024774 APPL)
19	ER193928	1	Thrust Washer	-
20	RE57800	1	Bracket	-
21	ER028378	2	Bushing	-
22	19M7775	4	Screw	M6 X 16, (SUB FOR ER021117 APPL)
23	14M7272	4	Nut	M6, (SUB FOR ER022111 APPL)
24	ER194482	1	Extension Spring	-
25	ER196702	1	Bracket	(WITHOUT CAB) (30 KM/H AND WITHOUT MFWD)
25	ER196702	1	Bracket	(WITH CAB) (40 KM/H, WITH MECHANICAL HI-LO TRANSMISSION AND WITH MFWD)

REVERSE LEVER AND CABLE (SYNCHRONIZED REVERSER TRANSMISSION)
