REAR WINDOW, COMPONENTS REAR WINDOW WIPER (CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	ER047097	1	Label	-
2	ER047056	4	Bushing	-
3	24M7298	1	Washer	8.400 X 25 X 2 mm, (SUB FOR ER047322 APPL)
4	ER047324	4	Washer	-
5	21M7441	1	Screw	M6 X 30, (SUB FOR ER047318 APPL)
6	ER047215	1	Washer	-
7	L37276	1	Nut	(SUB FOR ER047293 APPL)
8	24M7095	1	Washer	8.400 X 15 X 1.600 mm, (SUB FOR ER023109 APPL)
9	14M7273	1	Nut	M8, (SUB FOR ER023115 APPL)
10	ER191963	2	Washer	-
11	ER047208	1	Wiper Motor	-
12	ER047347	1	Shield	(SUB FOR ER047216 APPL)
13	24M7054	2	Washer	6.400 X 12 X 1.600 mm, (SUB FOR ER023066 APPL)
14	19M7603	2	Screw	M6 X 20, (SUB FOR ER020749 APPL)
15	ER047096	1	Switch	-
16	ER047116	1	Wiper Arm	-
17	LVU10145	1	Blade	LGTH= 330MM, (SUB FOR ER047477, LVU10146 APPL)
18	ER047296	1	Pipe	8 X 10MM
19	L59927	2	Nut	(SUB FOR ER047295 APPL)
20	ER261953	1	Nozzle	-
20	ER047031	1	Nozzle	NLA (ORD ER261953)
21	24M7178	1	Washer	10.500 X 30 X 2.500 mm, (SUB FOR ER023126 APPL)
22	ER047360	1	Windowpane	(SUB FOR ER047315 APPL)
23	ER047180	1	Seal	-
24	ER047065	3	Support	-
25	ER047294	3	Pin	8 X 85 MM
26	ER047032	3	Hinge	-
27	ER047316	4	Screw	M8 X 35
28	ER047072	1	Handle	-
29	ER047189	1	Spacer	-
30	ER047199	3	Washer	-
31	19M8701	1	Screw	M8 X 70, (SUB FOR ER047317 APPL)
32	ER047030	2	Bracket	-
33	AL71412	2	Gas Operated Cylinder	LGTH= 485MM, (SUB FOR ER047073 APPL)
34	ER262996	2	Ball Stud	(SUB FOR ER047025)
35	ER047071	1	Stop	-
36	ER021377	2	Bolt	M6 X 35
37	ER263448	2	Holder	(SUB FOR ER047162)
38	ER047206	2	Pad	-
39	ER047197	2	Knob	-

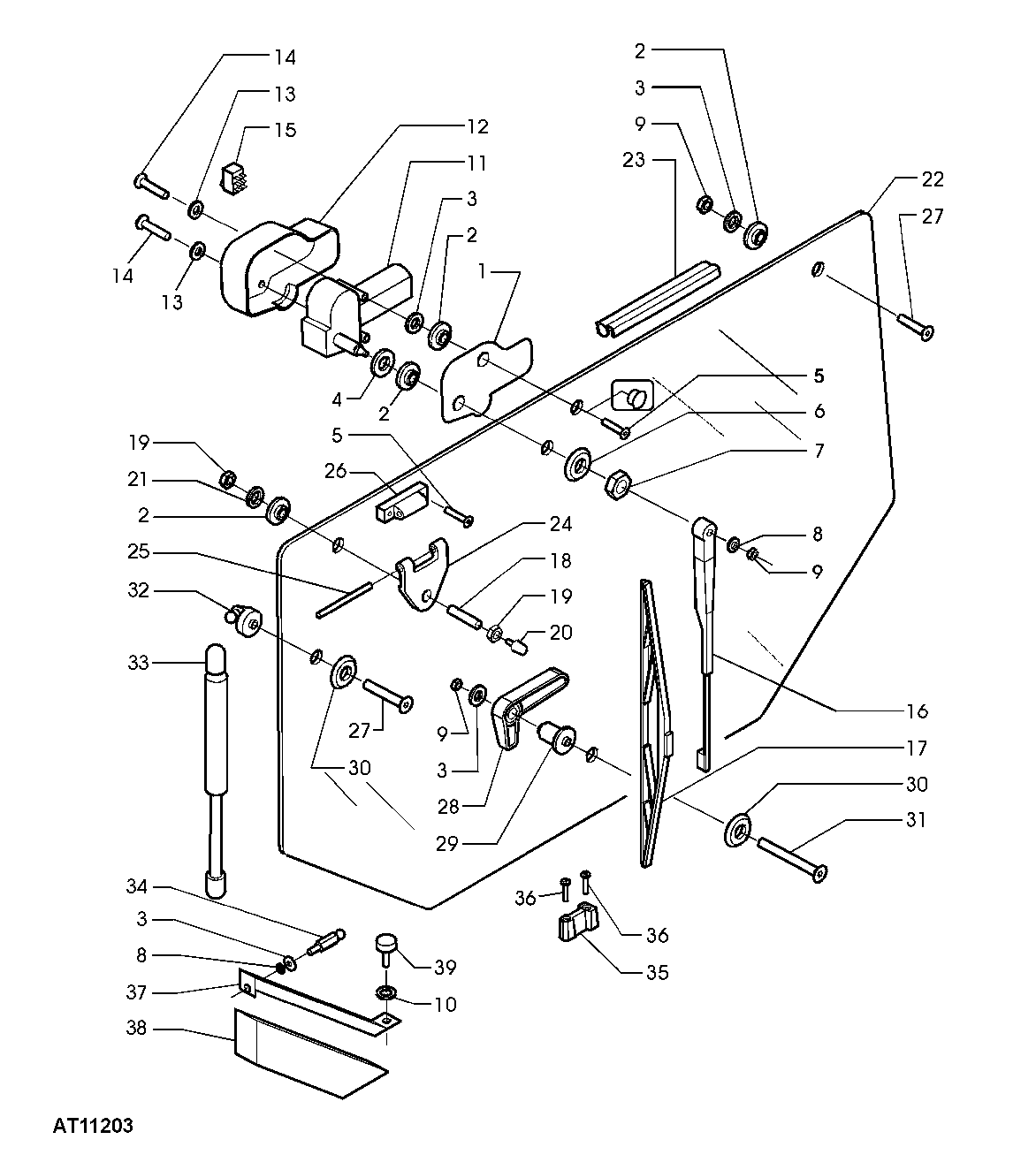

REAR WINDOW, COMPONENTS REAR WINDOW WIPER (CAB)

Нет текстового описания
