Открытый узел

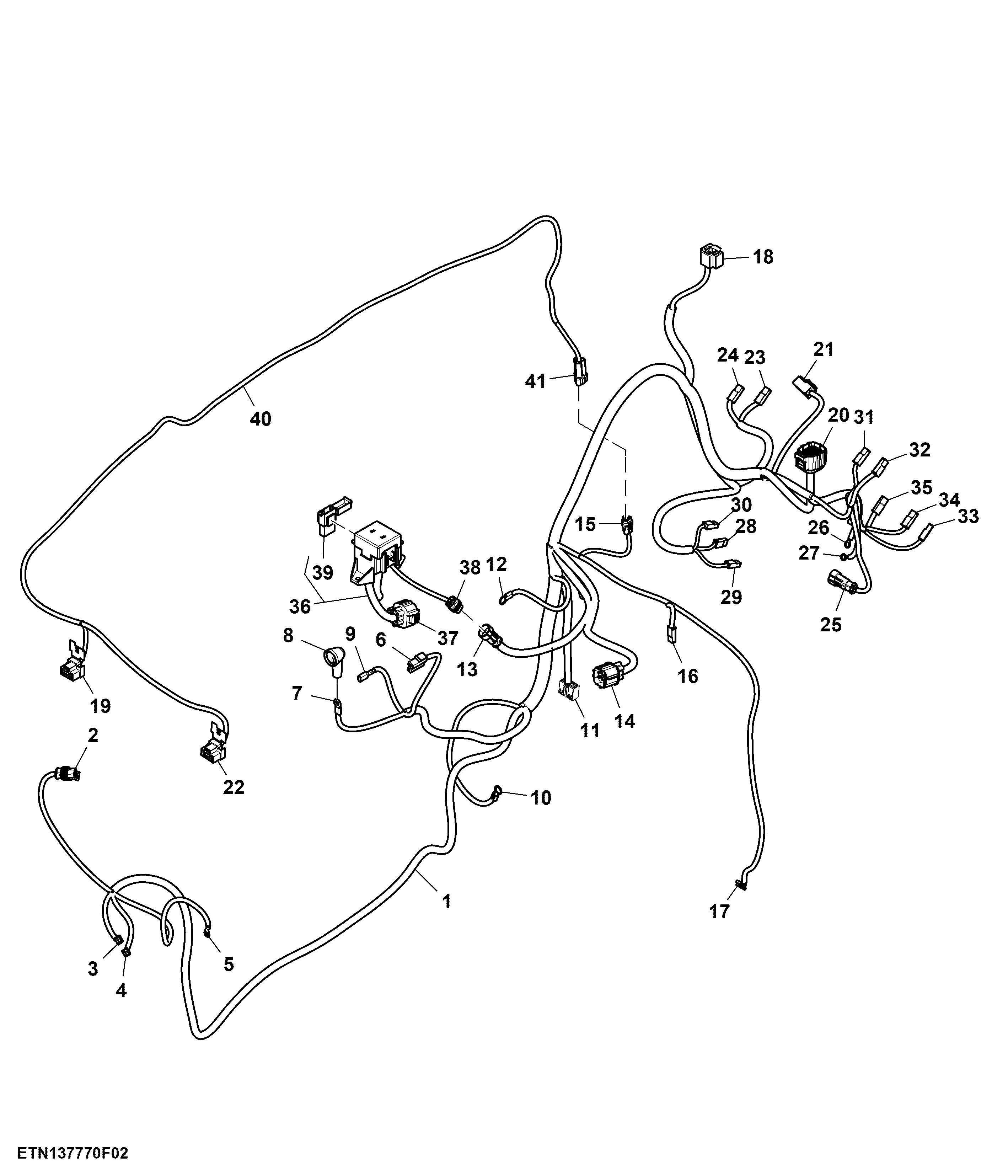

Front Wiring Harness, Dual Clutch, Reverse PTO, W/ Intake Preheater (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32756	1	Wiring Harness	Front
2	57M10497	1	Elec. Connector Housing	Air Filter Restriction, H-27
2	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
2	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
3	57M7170	1	Elec. Connector Housing	Horn, H-01
4	57M7170	1	Elec. Connector Housing	Horn, H-02
5	57M12323	1	Elec. Connector Terminal	Maxi Fuse, H-03
6	57M10494	1	Elec. Connector Housing	Alternator 'W' Point, H-06
7	57M11125	1	Elec. Connector Terminal	Alternator, H-05
8	R74993	1	Boot	-
9	57M12329	1	Elec. Connector Housing	Alternator, H-04
9	57M12740	2	Elec. Connector Terminal	Cavity 1, 2
10	57M7053	1	Elec. Connector Terminal	Starter Solenoid, H-26
11	57M9984	1	Elec. Connector Housing	Rear Wiring Harness, H-25
12	57M12323	1	Elec. Connector Terminal	Ground, H-07
13	57M10995	1	Elec. Connector Housing	Fuse Box Interconnect 2, H-08
14	57M10854	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
14	57M10260	10	Elec. Connector Cable Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
14	57M10989	1	Elec. Connector Housing	Fuse Box Interconnect 1, H-09
15	57M10168	1	Elec. Connector Housing	Hood Wiring Harness, H-12
15	57M10851	3	Elec. Connector Terminal	Cavity 1, 2, 3
15	57M8929	3	Elec. Connector Cable Seal	Cavity 1, 2, 3
16	57M7170	1	Elec. Connector Housing	Coolant Temparature, H-11
16	57M10073	1	Elec. Connector Terminal	-
17	57M8728	1	Elec. Connector Terminal	Engine Oil Pressure Switch, H-10
18	57M10002	1	Elec. Connector Housing	Flasher, H-15
18	57M12740	3	Elec. Connector Terminal	Cavity 1, 2, 3
19	57M10005	1	Elec. Connector Housing	Right Head Lamp, H-2
20	57M8420	1	Elec. Connector Seal	-
20	57M12787	1	Elec. Connector Accessory	-
20	57M7833	16	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
20	57M10021	1	Elec. Connector Housing	Instrument Cluster, H-17
20	57M8135	16	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
21	57M9974	1	Elec. Connector Housing	Light Switch, H-18
22	57M10005	1	Elec. Connector Housing	Left Head Lamp, H-3
23	57M7170	1	Elec. Connector Housing	Horn Switch, H-13
24	57M7170	1	Elec. Connector Housing	Horn Switch, H-14
25	57M14424	1	Elec. Connector Housing	Start Relay, H-22
25	57M9059	2	Elec. Connector Terminal	Cavity 1, 2
25	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
26	57M12318	1	Elec. Connector Terminal	Start Relay, H-20
27	57M12318	1	Elec. Connector Terminal	Start Relay, H-21
28	57M7170	1	Elec. Connector Housing	Key switch 2, H-16B
29	57M7170	1	Elec. Connector Housing	Key Switch 3, H-16C
30	57M7170	1	Elec. Connector Housing	Key Switch 1, H-16C
31	57M7170	1	Elec. Connector Housing	Mobile Charger, H-24
32	57M7170	1	Elec. Connector Housing	Mobile Charger, H-23
33	57M7170	1	Elec. Connector Housing	Turn Switch Left, H-19C
34	57M7170	1	Elec. Connector Housing	Turn Switch Flasher In, H-19B
35	57M7170	1	Elec. Connector Housing	Turn Switch Right, H-19A
36	SJ31782	1	Wiring Harness	Fuse Box Pigtail
37	57M10986	1	Elec. Connector Housing	Front Harness Interconnect 1, H-02
37	57M10260	10	Elec. Connector Cable Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
37	57M10262	1	Elec. Connector Accessory	-
38	57M10992	1	Elec. Connector Housing	Front Harness Interconnect 2, H-04
38	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
38	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
39	57M14421	1	Elec. Connector Housing	Light Switch Fuse, H-04
40	SJ14716	1	Wiring Harness	Hood
41	57M10170	1	Elec. Connector Housing	Hood Wiring Harness, H-1

Front Wiring Harness, Dual Clutch, Reverse PTO, W/ Intake Preheater (2/3)

Нет текстового описания
