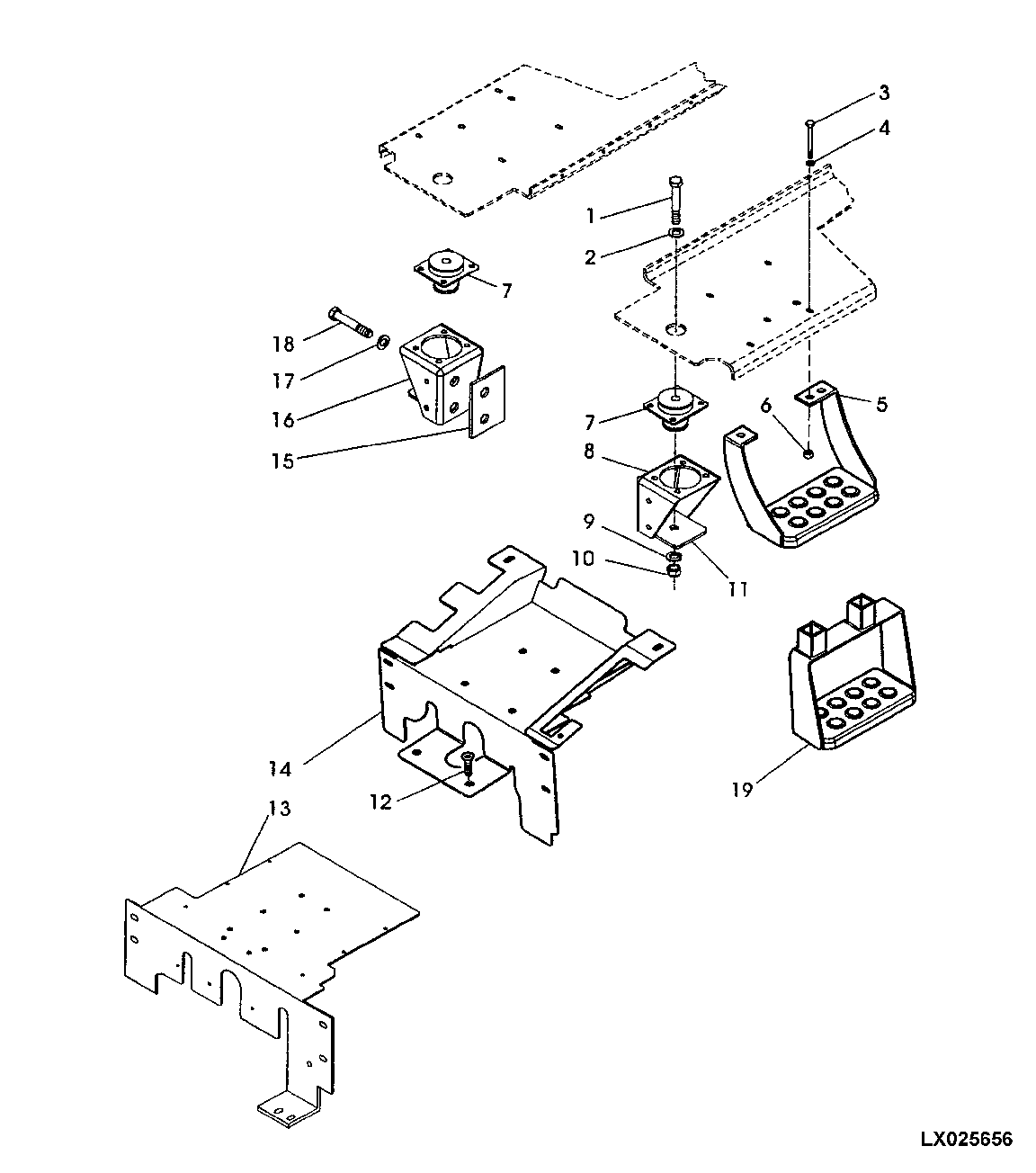

FLOOR PLATE, OPERATOR'S PLATFORM AND STEPS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7495	2	Cap Screw	(ALSO FOR SUPER NARROW VERSION) M16 X 100, (SUB FOR ER021021 APPL)
2	24M7053	2	Washer	(ALSO FOR SUPER NARROW VERSION) 17 X 30 X 3 mm, (SUB FOR ER023077 APPL)
3	ER021774	4	Bolt	M8 X 80
3	ER021775	4	Screw	(ALSO FOR SUPER NARROW VERSION) M8 X 30
4	24M7095	4	Washer	(ALSO FOR SUPER NARROW VERSION) 8.400 X 15 X 1.600 mm, (SUB FOR ER023109 APPL)
5	ER190703	2	Board	(SUB FOR ER047878)
5	ER192347	2	Step	(ALSO FOR SUPER NARROW VERSION)
6	14M7166	4	Lock Nut	(ALSO FOR SUPER NARROW VERSION) M8, (SUB FOR ER022407 APPL)
7	ER190987	2	Bearing	(SUB FOR ER047757)
7	ER190989	2	Absorber	(WITHOUT CAB) (C)
7	ER194575	2	Bearing	(FOR CAB) (C)
8	ER190991	1	Support	(ALSO FOR SUPER NARROW VERSION) LH (SUB FOR ER047862)
9	24M7053	2	Washer	(ALSO FOR SUPER NARROW VERSION) 17 X 30 X 3 mm, (SUB FOR ER023077 APPL)
10	14M7328	2	Lock Nut	(ALSO FOR SUPER NARROW VERSION) M16, (SUB FOR ER022418 APPL)
11	ER190994	2	Plate	(ALSO FOR SUPER NARROW VERSION) (SUB FOR ER047867)
12	R113996	2	Screw	(WITHOUT CAB) (ALSO FOR SUPER NARROW VERSION) M8 X 20, (SUB FOR ER020490 APPL)
13	ER195386	1	Support	(WITHOUT CAB) (SUB FOR ER192331 APPL)
14	ER193560	1	Support	(FOR CAB)
15	ER190997	2	Spacer	(ALSO FOR SUPER NARROW VERSION) (SUB FOR ER047868)
16	ER190990	1	Support	(ALSO FOR SUPER NARROW VERSION) RH (SUB FOR ER047861)
17	24M7051	4	Washer	(ALSO FOR SUPER NARROW VERSION) 21 X 37 X 3 mm, (SUB FOR ER023131 APPL)
18	19M8639	4	Cap Screw	(ALSO FOR SUPER NARROW VERSION) M20 X 70, (SUB FOR ER021048 APPL)
19	ER192347	2	Step	(SUB FOR ER190703)
19	ER195183	2	Step	(ALSO FOR SUPER NARROW VERSION)
..	ER190809	1	Shield	RH
..	ER190810	1	Shield	LH
..	ER190811	1	Shield	FRONT
..	ER190812	1	Shield	REAR

FLOOR PLATE, OPERATOR'S PLATFORM AND STEPS
