HYDROSTATIC POWER STEERING PIPES WITHOUT CAB

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PMH1613	1	Adapter Fitting	(SUB FOR ER137872 APPL)
2	ER136934	1	Line	-
2	ER137700	1	Pipe	-
3	ER136908	1	Line	-
3	ER137698	1	Pipe	-
4	DC39497	2	Adapter Fitting	(SUB FOR ER137871 APPL)
5	RT6005002608	1	Seal Kit	(SUB FOR ER043152 APPL)
6	ER5000	1	Filter Element	(SUB FOR ER043151, RT6005003244 APPL)
7	ER136933	1	Line	-
7	ER137699	1	Pipe	-
8	RE175504	2	Elbow Fitting	(SUB FOR ER137869 APPL)
9	ER137553	1	Holder	-
10	X6M14C87OMXS	1	Elbow Fitting	(SUB FOR ER137875 APPL)
11	ER137701	1	Pipe	-
11	ER136935	1	Line	-
12	X6M14F87OMXS	1	Fitting	(SUB FOR ER137876 APPL)
13	ER190092	2	Line	(SUB FOR ER136914 APPL)
14	PMH1614	1	Fitting	(SUB FOR ER137734 APPL)
15	19M7938	3	Cap Screw	M10 X 20, (SUB FOR ER020249 APPL)
16	19M7872	2	Cap Screw	M12 X 25, (SUB FOR ER020917 APPL)
17	RT7700036085	1	Oil Filter	(SUB FOR ER136657 APPL)
18	12M7066	3	Lock Washer	10 mm, (SUB FOR ER022859 APPL)
19	12M7058	2	Lock Washer	12 mm, (SUB FOR ER022861 APPL)
20	14M7273	2	Nut	M8, (SUB FOR ER022086 APPL)
21	ER136401	2	Bracket	-
22	19M7163	2	Cap Screw	M8 X 25, (SUB FOR ER020781 APPL)
23	12M7056	2	Lock Washer	8 mm, (SUB FOR ER022856 APPL)
24	ER195909	4	Clamp	(SUB FOR ER136405 APPL)
25	14H1076	2	Nut	3/8", (SUB FOR ER022066 APPL)

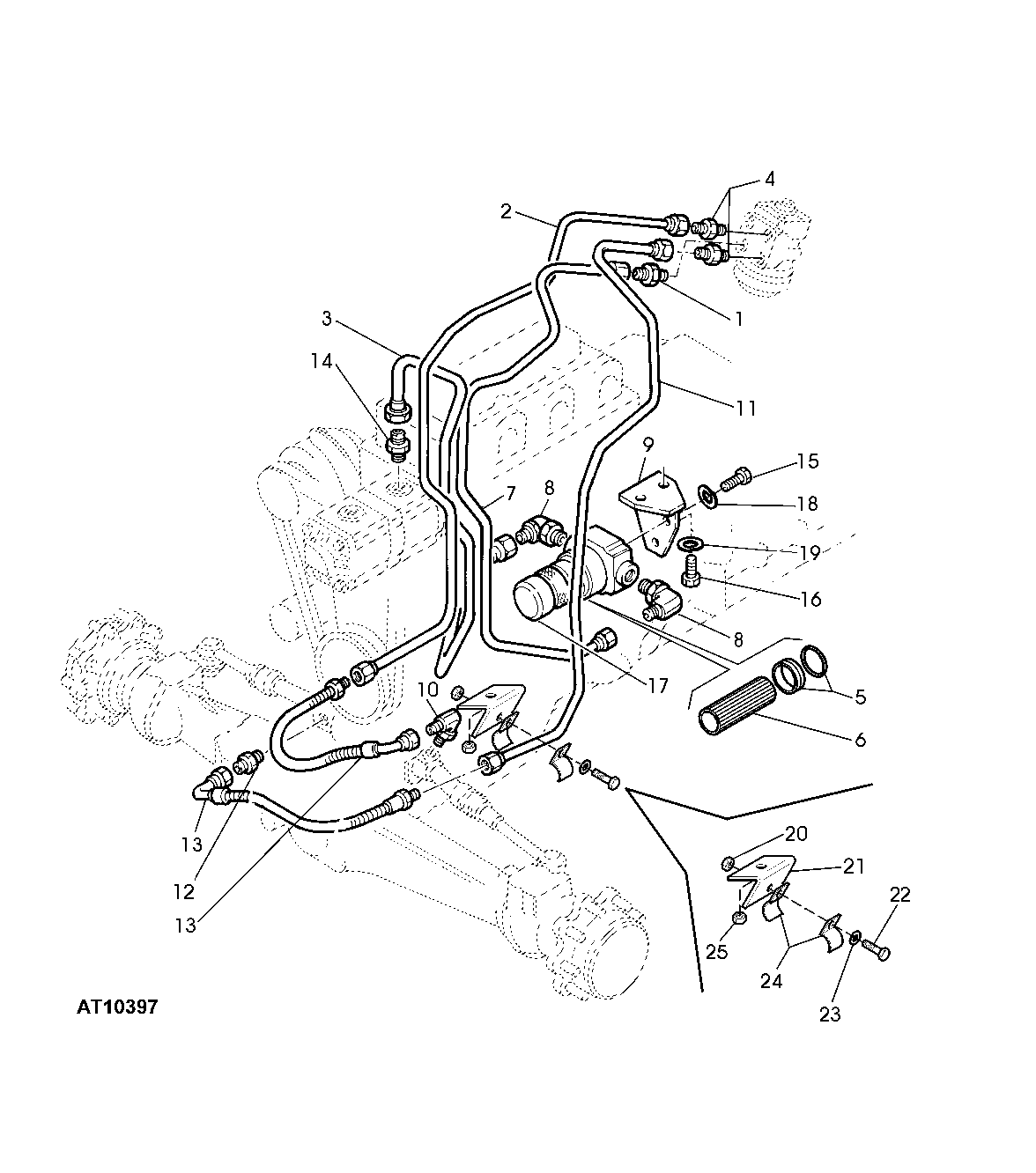

HYDROSTATIC POWER STEERING PIPES WITHOUT CAB

Нет текстового описания
