DOUBLE-ACTING SELECTIVE CONTROL VALVE (POS. 1) WITH DETENT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	NSEP (ORD ER196659)
2	-	1	Part 2	NSEP (ORD ER196659)
3	ER046422	1	Ball	1/4"
4	ER046923	1	Pin Fastener	OD = 16, 5 MM
5	T77857	1	O-Ring	(ORD ER046425) (SUB FOR ER028158 APPL)
6	34M7207	1	Spring Pin	5 X 30 mm, (SUB FOR ER024385 APPL)
7	ER028117	1	O-Ring	(ORD ER046425) (SUB FOR T16318)
8	P46051	2	O-Ring	(ORD ER046425) (SUB FOR ER028108 APPL)
9	24M7028	1	Washer	10.500 X 20 X 2 mm, (SUB FOR ER046905 APPL)
10	ER046594	1	Spring	-
11	ER046904	1	Bushing	-
12	ER046903	1	Screw	-
13	ER046911	1	Piston	-
14	ER046973	1	Spring	-
15	ER046912	1	Bushing	-
16	ER046591	1	Cover	-
17	19M7374	2	Cap Screw	M6 X 40, (SUB FOR ER020761 APPL)
18	14M7226	1	Nut	M8, (SUB FOR ER022505 APPL)
19	ER023258	2	Washer	-
20	14M7151	1	Nut	M8, (SUB FOR ER022120 APPL)
21	ER046590	1	Set Screw	M8 X 30
22	ER046592	1	Gasket	(ORD ER046425)
23	ER046964	1	Valve	-
24	ER046962	1	Spring	-
25	ER046963	1	Piston	-
26	ER046906	1	Gasket	(ORD ER046425)
27	ER048354	1	Shaft	-
28	ER046586	1	Pin	-
29	ER046922	3	Ball	-
30	ER028495	1	O-Ring	(ORD ER046425) (SUB FOR ER046924 APPL)
31	ER046733	1	Spring	(SUB FOR ER046423)
32	ER046921	1	Nut	-
33	ER046424	1	Cover	-
34	ER021512	1	Set Screw	10 X 16 MM
35	14M7274	1	Nut	M10, (SUB FOR ER022119 APPL)
36	ER046425	1	Seal Kit	KIT
37	ER196659	1	Valve	(SUB FOR ER137878)

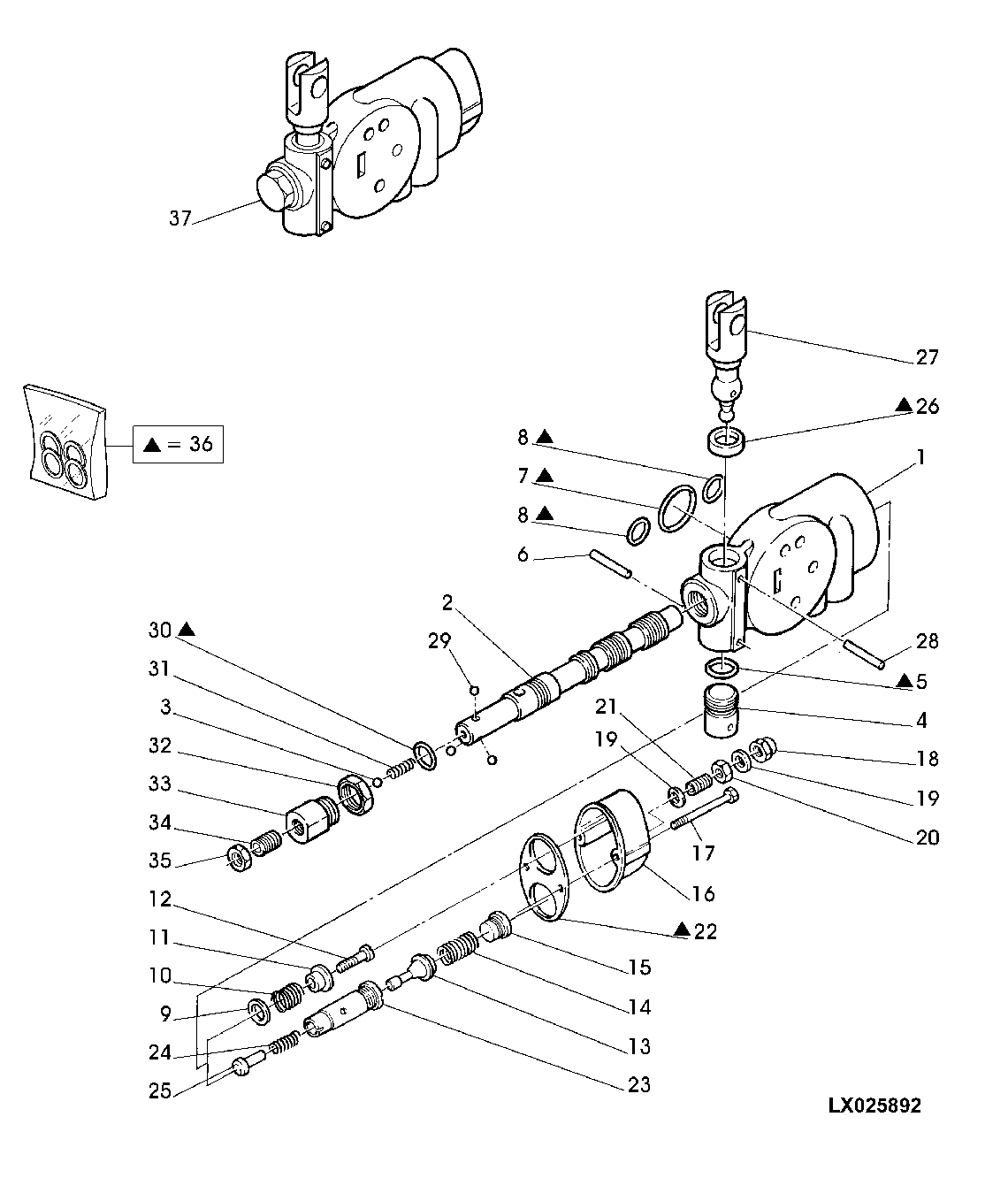

DOUBLE-ACTING SELECTIVE CONTROL VALVE (POS. 1) WITH DETENT
