Открытый узел

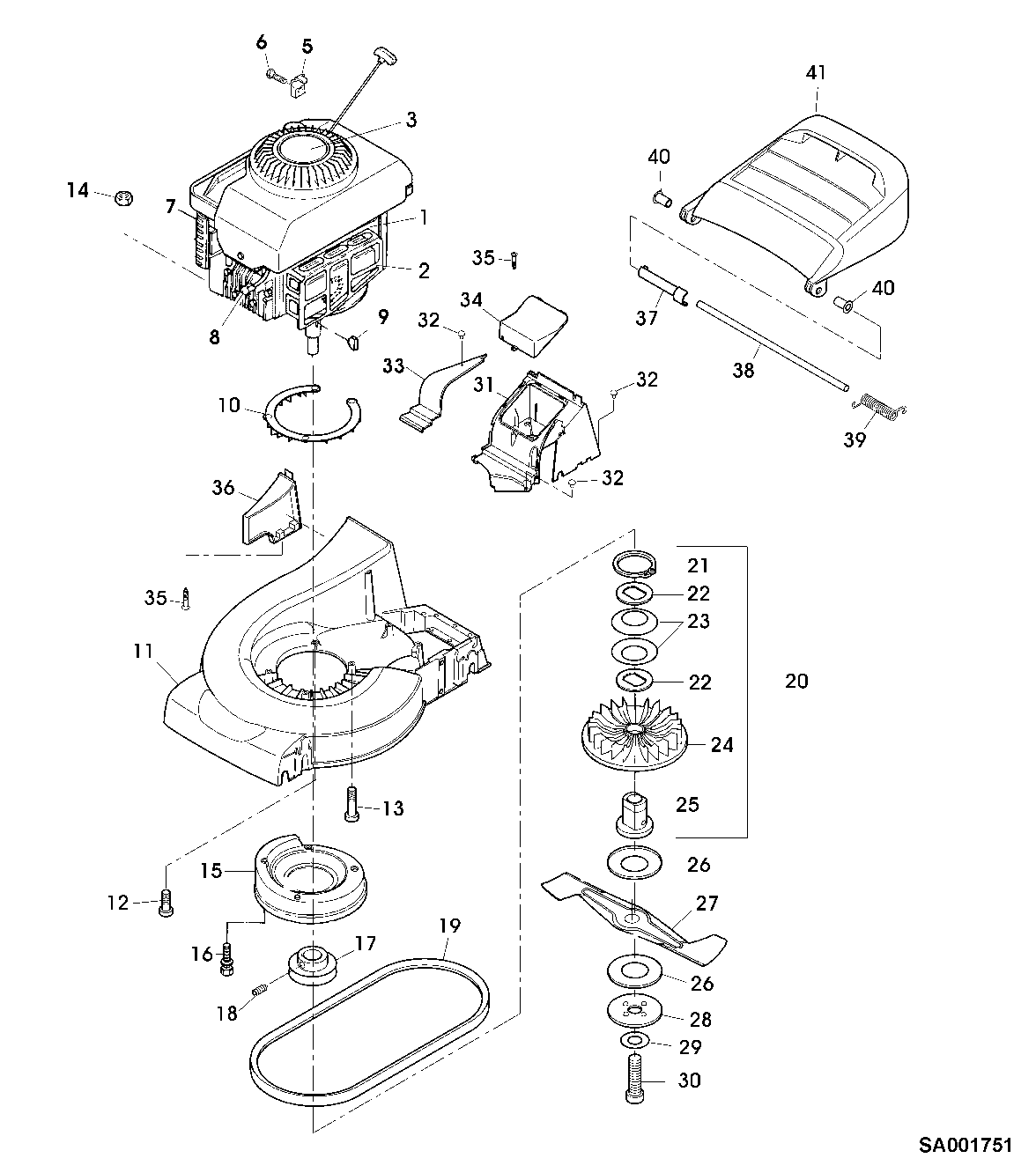

HOUSING, ENGINE, FAN, MOWER DECK, DISCHARGE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SA26879	1	Gasoline Engine	B AND S, QUANTUM XM50, MODEL 12F802, TYPE 1726B1
2	SA30267	1	Grate	(SUB FOR SA16541)
3	LG691919	1	Guard	(SUB FOR SA26600)
5	LG690798	1	Clamp	(SUB FOR SA26799)
6	SA26798	1	Bolt	-
7	LG491588JD	1	Air Filter	(SUB FOR SA26547)
8	TY6129	1	Spark Plug	(SUB FOR SA16815)
9	SA15967	2	Shaft Key	4X6, 5
10	SA36670	1	Guard	-
11	SAA10102	1	Mower Deck	(SUB FOR SA36586)
12	SA15592	2	Screw	M 8X35
13	SA30598	1	Screw	M 8X60
14	14M7327	3	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, M8, (SUB FOR SA11998)
15	SAA14920	1	Air Plenum	SUB FOR SA36683
16	SA29854	4	Bolt	M5X12
17	SA36208	1	Pulley	-
18	SA15776	1	Set Screw	M6X16
19	SA36521	1	V-Belt	-
20	SAA10232	1	Fan	SUB FOR SA36486 , ASSY
21	SA15739	1	Snap Ring	31X 1, 5
22	SA11896	2	Washer	-
23	SA15179	2	Disk Spring	(ONLY AVAILABLE AS PACKAGED SETS)
24	SA36487	1	Fan Blade	-
25	SA37138	1	Flange	-
26	SA35386	2	Lining	(ONLY AVAILABLE AS PACKAGED SETS)
27	SAA10681	1	Knife	SUB FOR SAA37552
28	SA35385	1	Disk	-
29	SA34499	1	Disk	-
30	SA15593	1	Bolt	NF 3/8X57, 1
31	SAU10480	1	Cover	(SUB FOR SA36475)
32	SA34452	4	Screw	6, 0X14
33	SA36570	1	Cover	-
34	SA36481	1	Cover	-
35	SA34487	3	Bolt	K 60X14
36	SA36476	1	Shield	-
37	SA36662	1	Orifice	-
38	SA36512	1	Axle	-
39	SA36572	1	Torsion Spring	-
40	SA36569	2	Bearing	-
41	SA36516	1	Grass Deflector	-
..	SA523	1	Grass Mulching Attachment	-

HOUSING, ENGINE, FAN, MOWER DECK, DISCHARGE
