Открытый узел

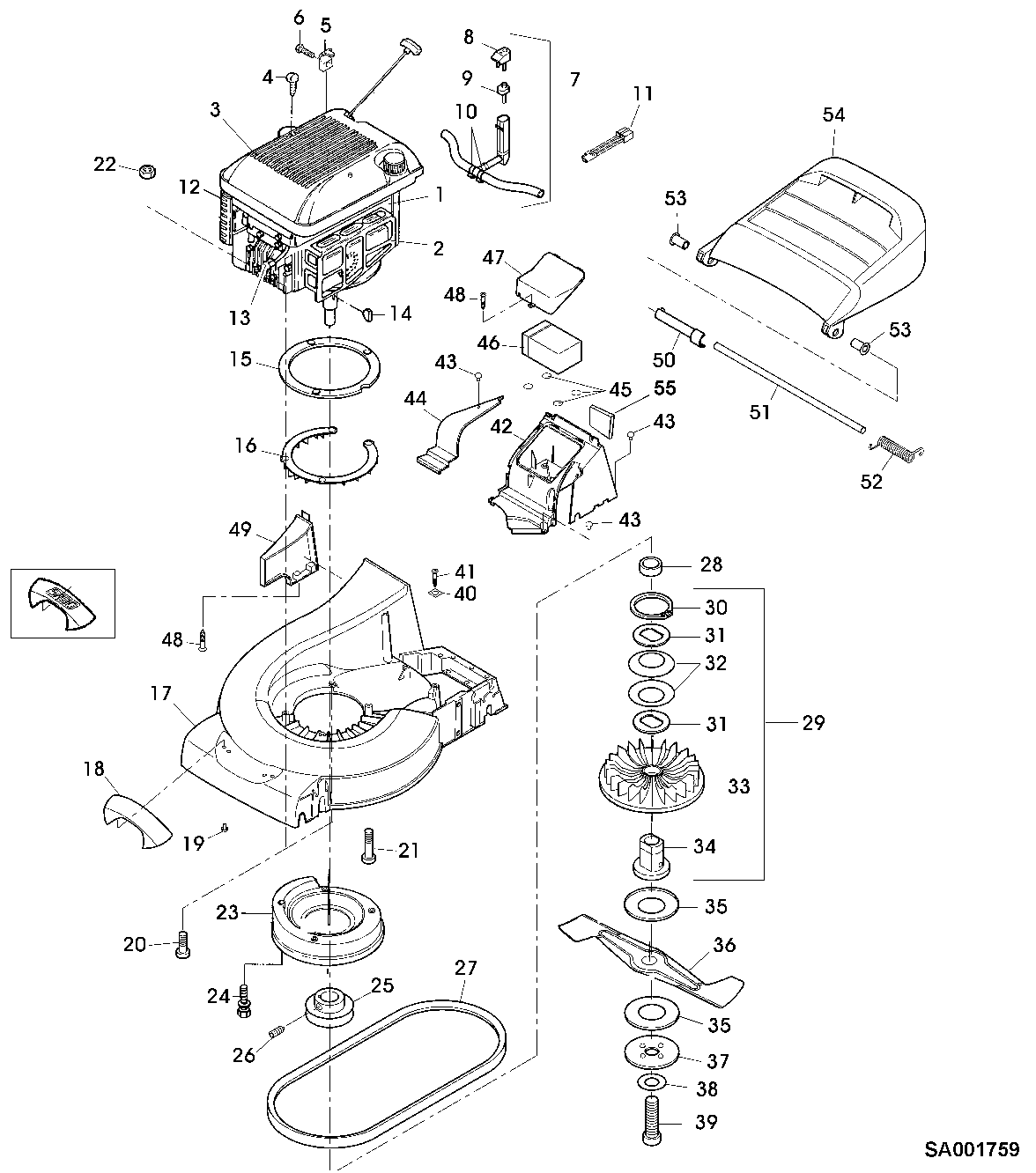

HOUSING, ENGINE, FAN, MOWER DECK, DISCHARGE, BATTERY

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SA26878	1	Gasoline Engine	B AND S, QUANTUM XM50 E, MODEL 12F807, TYPE 1727B
1	SA26796	1	Gasoline Engine	B AND S, QUANTUM 5.0 HP E OR QUANTUM XM50, MODEL 12F807, TYPE 063801
2	SA30267	1	Grate	(SUB FOR SA16541)
3	SA33223	1	Hood	-
4	SA16268	2	Bolt	4, 2X32
5	LG690798	1	Clamp	(SUB FOR SA26799)
6	SA26798	1	Bolt	-
7	SAA35185	1	Level Gauge	-
8	SA34784	1	Cover	NSEP (ORD SAA35185)
9	SAA34942	1	Bleed Valve	-
10	SA34785	2	Hose Clamp	-
11	SA36653	1	Adapter Fitting	-
12	LG491588JD	1	Air Filter	(SUB FOR SA26547)
13	TY6129	1	Spark Plug	(SUB FOR SA16815)
14	SA15967	2	Shaft Key	4X6, 5
15	SA36239	1	Ring	-
16	SA36670	1	Guard	-
17	SAA10100	1	Mower Deck	(SUB FOR SA36686)
18	SAA36405	1	Handle	(INCL KEY SA36391)
19	SA35503	2	Screw	CM 60X20, DUO TAPTITE
20	SA15572	2	Screw	M8X45
21	SA30647	1	Screw	M8X75
22	14M7327	3	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
23	SAA14920	1	Air Plenum	SUB FOR SA36683
24	SA29854	4	Bolt	M5X12
25	SA36977	1	Pulley	(SUB FOR SA35597)
26	SA15776	1	Set Screw	M6X16
27	SA36523	1	V-Belt	-
28	SA12788	1	Spacer	-
29	SAA10232	1	Fan	SUB FOR SA36486 , ASSY
30	SA15739	1	Snap Ring	31X15
31	SA11896	2	Washer	-
32	SA15179	2	Disk Spring	(ONLY AVAILABLE AS PACKAGED SETS)
33	SA36487	1	Fan Blade	-
34	SA37138	1	Flange	(SUB FOR SA36498)
35	SA35386	2	Lining	(ONLY AVAILABLE AS PACKAGED SETS)
36	SAA10681	1	Knife	SUB FOR SAA37552 OR SA17208
37	SA35385	1	Disk	-
38	SA34499	1	Disk	-
39	SA17490	1	Bolt	UNF 3/8X63, 5
40	SA34589	1	Strap	-
41	SA17604	1	Bolt	(ONLY AVAILABLE AS PACKAGED SETS) M5X9
42	SAU10480	1	Cover	(SUB FOR SA36475) (ORD W/ SA36682, SA37010)
43	SA34452	4	Screw	CM 6, 0X14, DUO TAPTITE
44	SA36570	1	Cover	-
45	SA36682	4	Vibration Dampener	-
46	SAA35583	1	Nonspillable Battery	-
47	SA36481	1	Cover	-
48	SA34487	3	Bolt	K 60X14
49	SA36476	1	Shield	-
50	SA36662	1	Orifice	-
51	SA36512	1	Axle	-
52	SA36572	1	Torsion Spring	-
53	SA36569	2	Bearing	-
54	SA36516	1	Grass Deflector	-
55	SA37010	2	Vibration Dampener	-
..	SA523	1	Grass Mulching Attachment	-

HOUSING, ENGINE, FAN, MOWER DECK, DISCHARGE, BATTERY

Нет текстового описания
