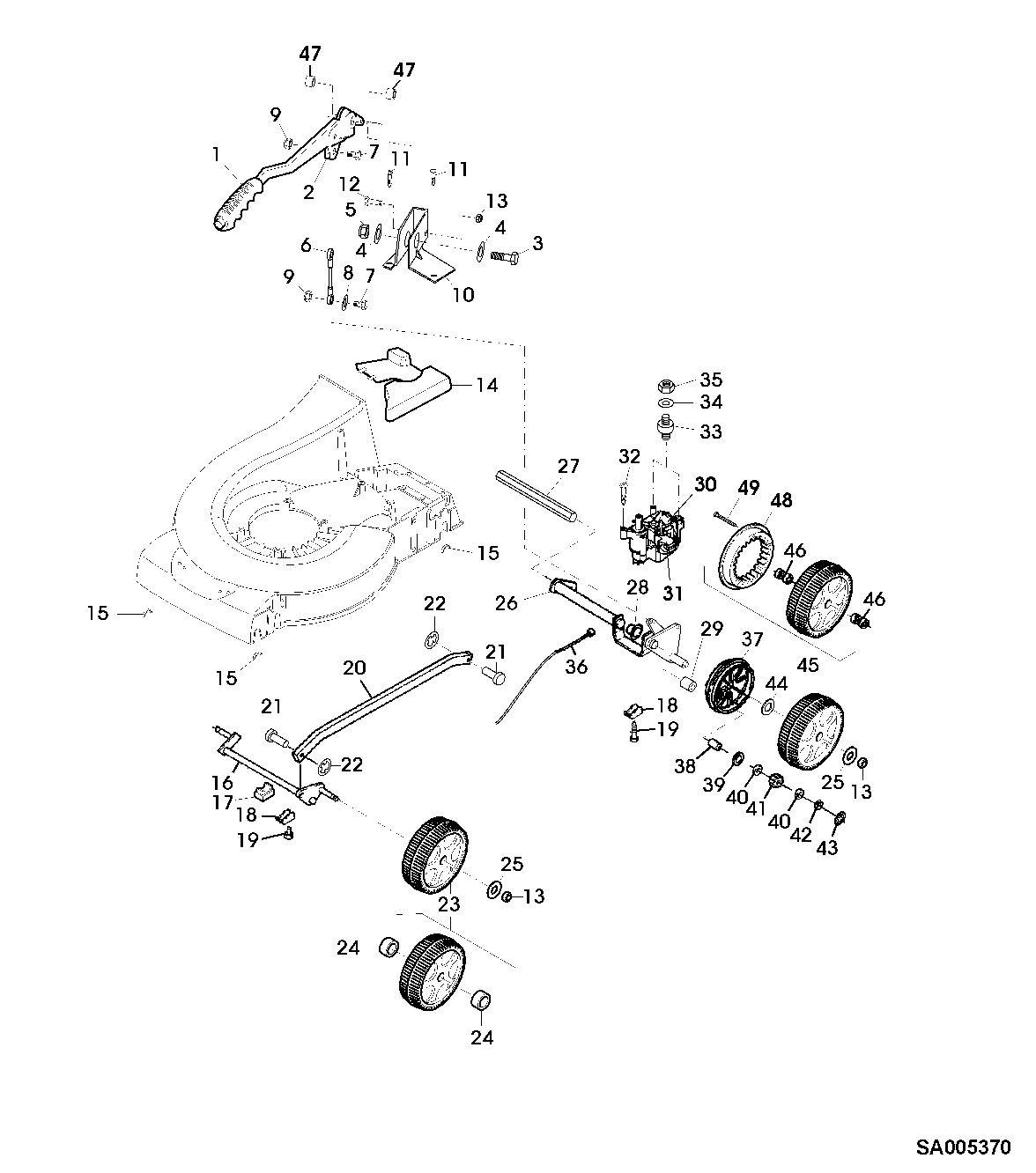

DRIVE, CUTTING HEIGHT ADJUSTMENT, WHEELS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAA10116	1	Lever	ASSY, INCL KEYS 2, 3, 4, 5 (SUB FOR SAA10059)
2	SA37520	1	Sector	NSEP (ORD SAA10116)
3	SA36697	1	Pin Fastener	-
4	SA15207	2	Washer	A15
5	SA15694	1	Lock Nut	M10
6	SA36474	1	Tie Bar	-
7	SA15324	2	Cap Screw	M6X25
8	SA15202	1	Washer	6, 4
9	SA11244	2	Lock Nut	M6
10	SA36479	1	Bracket	-
11	SA34452	3	Screw	6, 0X14 CM, DUO TAPTITE
12	SA15365	1	Cap Screw	M8X35
13	14M7327	5	Lock Nut	M8, M8, (SUB FOR SA11998)
14	SA36661	1	Guard	(BEFORE INSTALLATION, CUT ALONG MARK)
15	SA31711	4	Bearing Cap	-
16	SAU10260	1	Front Axle	FRONT
17	SAU10274	2	Adapter	-
18	SA36261	4	Clamp	-
19	SA29854	4	Bolt	M5X12
20	SAA36485	1	Tie Bar	-
21	SA35588	2	Pin Fastener	-
22	SA35589	2	Clip	8 SXN 59
23	SAU10258	2	Tire And Wheel Assembly	210MM, FRONT
24	SA33229	4	Ball Bearing	-
25	SA15213	4	Washer	A 8, 4
26	SAU10261	1	Rear Axle	REAR
27	SA36497	1	Drive Shaft	-
28	SAU10386	1	Bushing	-
29	SAU10387	2	Bushing	-
30	SA34286	1	Transmission	(ORDER DRIVE UNIT AS UNIT ONLY, PARTS NO LONGER SUPPLIED SEPARATELY)
31	SA34279	1	Guide	-
32	SA31264	1	Bolt	M5X16
33	SA36571	2	Isolator	-
34	SA15232	2	Lock Washer	A6
35	SA15412	2	Nut	M6
36	SA37160	1	Push Pull Cable	-
37	SAU10256	2	Guard	-
38	SA34284	2	Driver	-
39	SA13911	2	Spring Washer	-
40	SA13912	4	Disk	-
41	SAA37273	2	Pinion	-
42	SA15864	2	Snap Ring	14X1MM
43	SA34282	2	Push Nut	8
44	SA13926	1	Washer	-
45	SAU10265	2	Tire And Wheel Assembly	210MM, REAR
46	SA36659	4	Needle Bearing	HK1616
47	M112486	2	Washer	-
48	SAU10259	2	Pinion	-
49	SA33975	10	Screw	KRZ 4, 0X35, 0 MM
