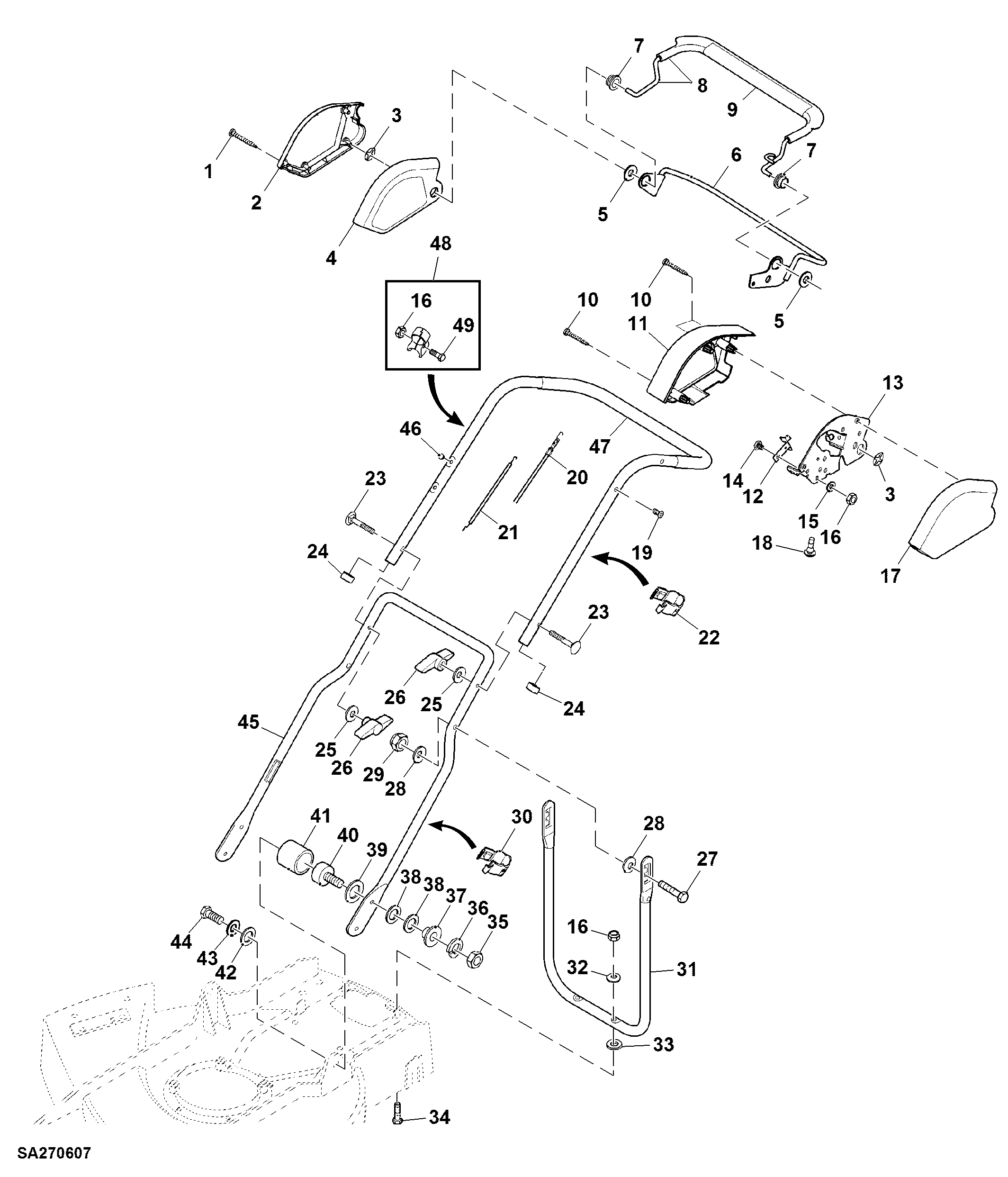

Handlebar ( - 000999)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAU12363	4	Bolt	4 X 25 mm, Only Available as Packaged Sets
2	SAU12114	1	Shield	Outer, RH
3	SA36975	2	Push Nut	D 16, Only Available as Packaged Sets
4	SAU12115	1	Shield	Inner, RH
5	SAU14229	2	Washer	20.2 X 28 X 1.5 mm, Only Available as Packaged Sets
6	SAA11400	1	Bail	For Ground Speed Drive
7	SAU12643	2	Bushing	-
8	SAA11620	1	Bail	For Engine Brake INCLUDES SAU14283
9	SAU14283	1	Grip	-
10	SA16268	3	Bolt	4 X 32 mm, For Ground Speed Drive
11	SAU12113	1	Shield	Inner, LH
12	SAU13745	1	Sheet	-
13	SAU14399	1	Sheet	-
14	19M8425	1	Cap Screw	M6 X 16, SUB FOR SA15322
15	24M7054	1	Washer	6.400 X 12 X 1.600 mm, Only Available as Packaged Sets SUB FOR SA15202
16	14M7165	4	Lock Nut	M6, Only Available as Packaged Sets SUB FOR SA11244
17	SAU12112	1	Shield	Outer, LH
18	SAU14398	1	Absorber	-
19	SAU11315	2	Screw	M6 X 35, Only Available as Packaged Sets
20	SAU14438	1	Push Pull Cable	For Ground Speed Drive
21	SAU14709	1	Push Pull Cable	For Engine Brake
22	SAU16724	1	Clamp	22 mm, SUB FOR SAU12565
23	SAU14673	2	Screw	M8 X 55
24	SA34255	2	Plug	Only Available as Packaged Sets
25	SA30444	2	Disk	Only Available as Packaged Sets
26	SAU14583	2	Wing Nut	M8
27	SAU14782	2	Screw	M8 X 40
28	24M7298	4	Washer	8.400 X 25 X 2 mm, Only Available as Packaged Sets SUB FOR SA15213
29	14M7327	2	Lock Nut	M8, Only Available as Packaged Sets SUB FOR SA11998
30	SAU13312	1	Clamp	25 mm
31	SAA11527	1	Retainer	-
32	SA11243	4	Washer	6.5 X 18 X 2 mm, Only Available as Packaged Sets
33	SA12973	2	Push Nut	D 6, Only Available as Packaged Sets
34	19M7320	2	Cap Screw	M6 X 40, Only Available as Packaged Sets SUB FOR SA15302
35	14M7273	2	Nut	M8, Only Available as Packaged Sets SUB FOR SA15413
36	12M7056	2	Lock Washer	8 mm, Only Available as Packaged Sets SUB FOR SA15233
37	SAU14721	2	Sleeve	-
38	SA20154	4	Spring Washer	12 mm, Only Available as Packaged Sets
39	SA12939	2	Washer	Only Available as Packaged Sets
40	SA34923	2	Isolator	-
41	SA34922	2	Cap	-
42	24M7055	2	Washer	8.400 X 16 X 1.600 mm, Only Available as Packaged Sets SUB FOR SA15203
43	SA35420	2	Disk Spring	8.4 mm, Only Available as Packaged Sets
44	19M7932	2	Cap Screw	M8 X 16, SUB FOR SA15329
45	SAA11528	1	Handlebar	Low INCLUDES SAU14060
46	SA34099	3	Plug	Only Available as Packaged Sets
47	SAA11529	1	Guide	Up
48	SAA11367	1	Guide	INCLUDES 14M7165 AND 19M8618
49	19M8618	1	Screw	M6 X 12, Only Available as Packaged Sets SUB FOR SA15598
