Открытый узел

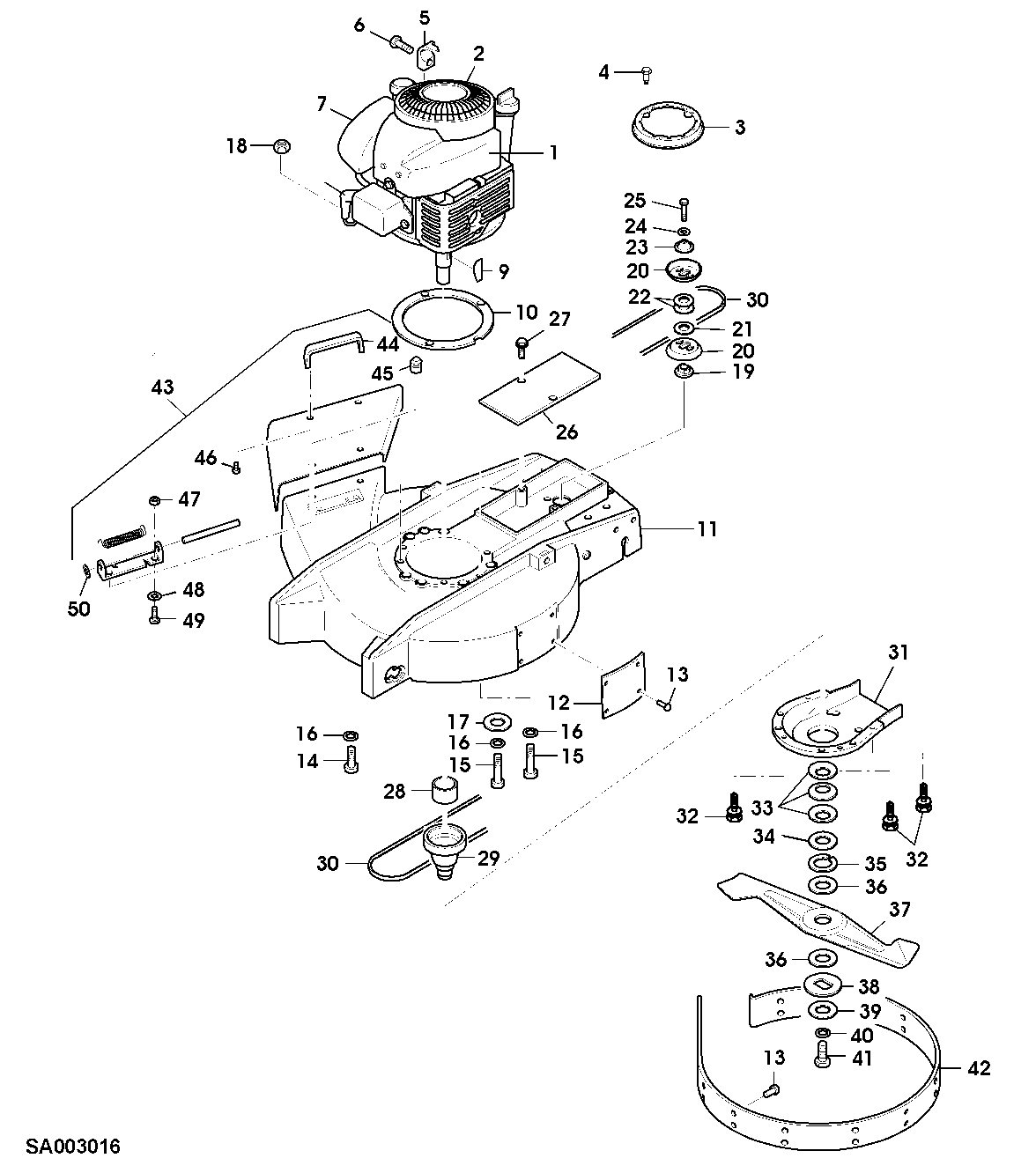

HOUSING,ENGINE, MOWER DECK, DISCHARGE, DRIVE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAA10359	1	Gasoline Engine	B AND S, 825 INTEK OHV, MODEL 12Q572, TYPE 0140B, INCL KEYS 2, 3, 4
1	SAA37118	1	Gasoline Engine	B AND S, 825 INTEK OHV, MODEL 12Q572, TYPE 0140B1, INCL KEYS 2, 3, 4
2	SA26877	1	Cover	-
3	SA37119	1	Ring	-
4	SA37146	3	Bolt	-
5	LG690798	1	Clamp	(SUB FOR SA26799)
6	SA26798	1	Bolt	-
7	M143278	1	Air Filter	PAPER (SUB FOR SA32667)
7	M143275	1	Air Filter	(SUB FOR SA32668)
8	SA26589	1	Spark Plug	-
9	SA26554	1	Shaft Key	4.77X6
10	SA36230	1	Spacer	-
11	SAA37523	1	Mower Deck	ASSY, INCL KEYS 12, 13, 42
11	SAA10355	1	Housing	ASSY, INCL KEYS 12, 13, 42
12	SAA17135	2	Sheet	-
13	SA34540	16	Rivet	(SUB FOR SA11019)
14	SA15385	1	Cap Screw	M8X55
15	SA15574	2	Screw	M8X80
16	SA15233	3	Lock Washer	A8
17	SA15203	1	Washer	8, 4
18	14M7327	3	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
19	SA12792	1	Bushing	-
20	SA12255	2	Half Sheave	-
21	SA12254	1	Disk	-
22	SA12253	2	Disk	-
23	SA12256	1	Disk	-
24	SA15232	1	Lock Washer	(ONLY AVAILABLE AS PACKAGED SETS) A6
25	SAA19228	1	Sheet	SUB FOR SA19228
27	SA17604	2	Bolt	(ONLY AVAILABLE AS PACKAGED SETS) M5X9
28	SA12788	1	Spacer	-
29	SA32635	1	Pulley	-
30	SA19220	1	V-Belt	9, 5X905, LA
31	SA12250	1	Shield	-
32	SA29854	4	Bolt	M5X12
33	SA37507	3	Disk Spring	(ONLY AVAILABLE AS PACKAGED SETS)
34	SA29788	1	Thrust Washer	-
35	SA30850	1	Snap Ring	(ONLY AVAILABLE AS PACKAGED SETS) 32X1.25
36	SAA11144	2	Lining	(ONLY AVAILABLE AS PACKAGED SETS)
37	SAA34259	1	Knife	-
38	SA29788	1	Thrust Washer	-
39	SA29787	1	Disk	-
40	SA37178	1	Lock Washer	10MM
41	SA15593	1	Bolt	NF 3/8X57, 1
42	SAA19268	1	Lock Plate	-
43	SAA31097	1	Sheet	ASSY
44	SA19233	1	Grip	-
45	SA19232	2	Bumper	-
46	SA16267	2	Bolt	(ONLY AVAILABLE AS PACKAGED SETS) 4, 2X13
47	SA37416	2	Lock Nut	M6
48	SA31284	2	Lock Washer	-
49	SA15364	2	Cap Screw	M6X12
50	SA12973	1	Push Nut	(ONLY AVAILABLE AS PACKAGED SETS) D6
..	SA520	1	Grass Mulching Attachment	-

HOUSING,ENGINE, MOWER DECK, DISCHARGE, DRIVE
