Открытый узел

HANDLE, STARTER, SHIFT LINKAGE, DRIVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SA30436	1	Flange	-
2	SA12255	2	Half Sheave	-
3	SA30447	1	V-Belt	-
4	SA12254	1	Disk	-
5	SA12253	3	Disk	-
6	SA12256	1	Disk	-
7	SA15232	1	Lock Washer	A6
8	SA15325	1	Cap Screw	M6X30
9	SA15332	4	Cap Screw	M8X25
10	SA35420	4	Disk Spring	8, 4
11	SA34838	2	Absorber	-
12	SA29744	2	Nut	M8
13	14M7327	2	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
14	SA29801	2	Retainer	-
15	SAA34812	1	Guide	LOW
16	SA15307	4	Cap Screw	M8X45
17	SA30444	8	Disk	-
18	14M7327	4	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
19	SA34255	2	Plug	-
20	SAA36001	1	Handlebar	UP
21	SA34459	1	Handle	-
22	SA11244	3	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M6
23	SA11243	1	Washer	-
24	SA15326	1	Cap Screw	M6X35
25	SA18334	1	Control	ASSY
26	SA15551	1	Screw	(ONLY AVAILABLE AS PACKAGED SETS) M6X20
27	SA18299	1	Push Pull Cable	-
28	SAU14024	1	Lever	SUB FOR SA12768
29	SA15535	4	Screw	M6X30
30	SA35611	1	Retainer	RH
31	SA36138	2	Disk	10X18X1
32	SAU14929	2	Bushing	10 X 20 X 15, SUB FOR SA35997; POM
33	SAA35613	1	Bail	(FOR GROUND SPEED DRIVE)
34	SA35729	1	Push Pull Cable	(FOR GROUND SPEED DRIVE)
35	SA36000	1	Retainer	LH
36	SA35999	1	Push Pull Cable	(FOR ENGINE BRAKE)
37	SAA35982	1	Bail	(FOR ENGINE BRAKE)
38	SA35203	2	Clip	D10

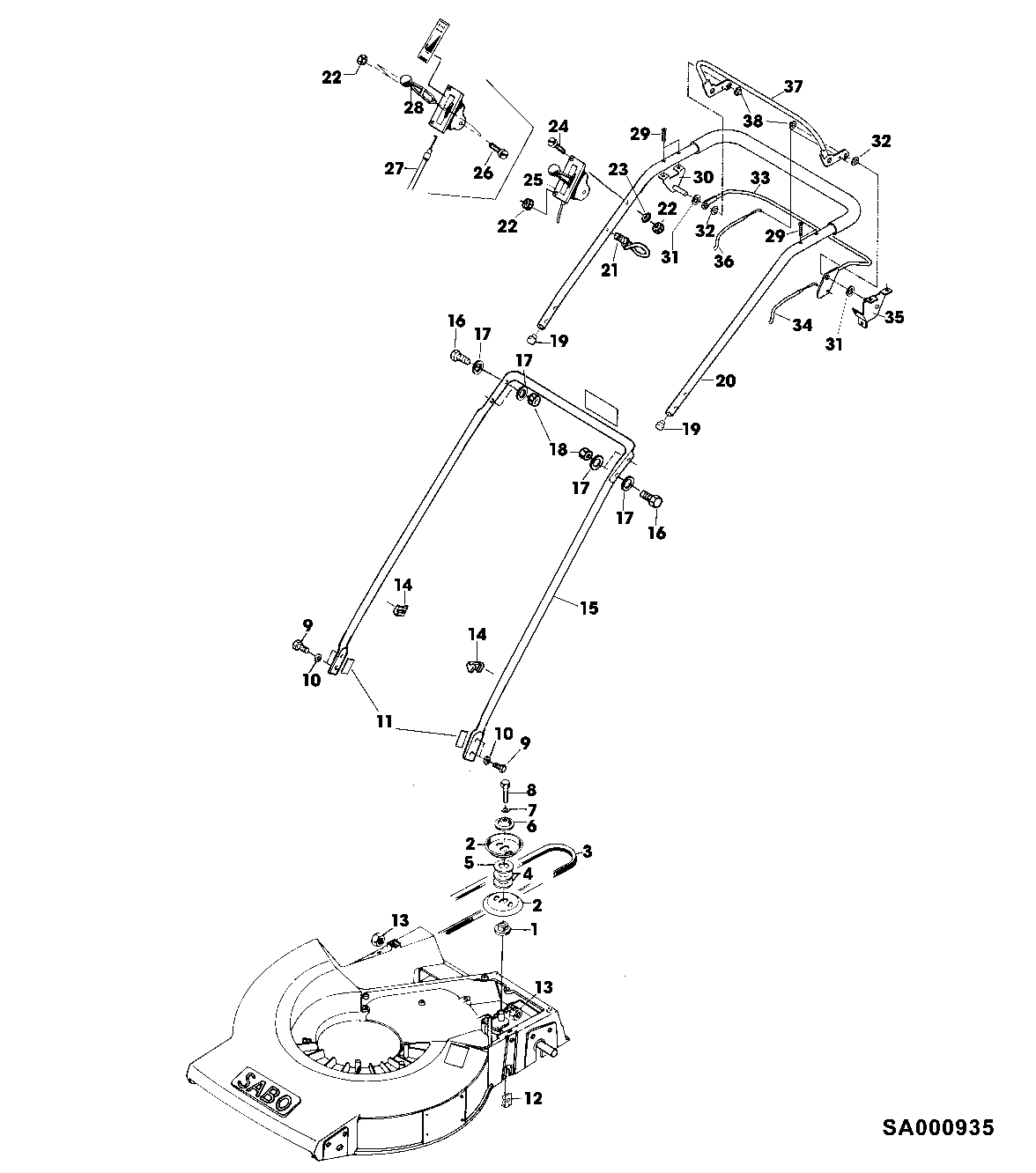

HANDLE, STARTER, SHIFT LINKAGE, DRIVE

Нет текстового описания
