Открытый узел

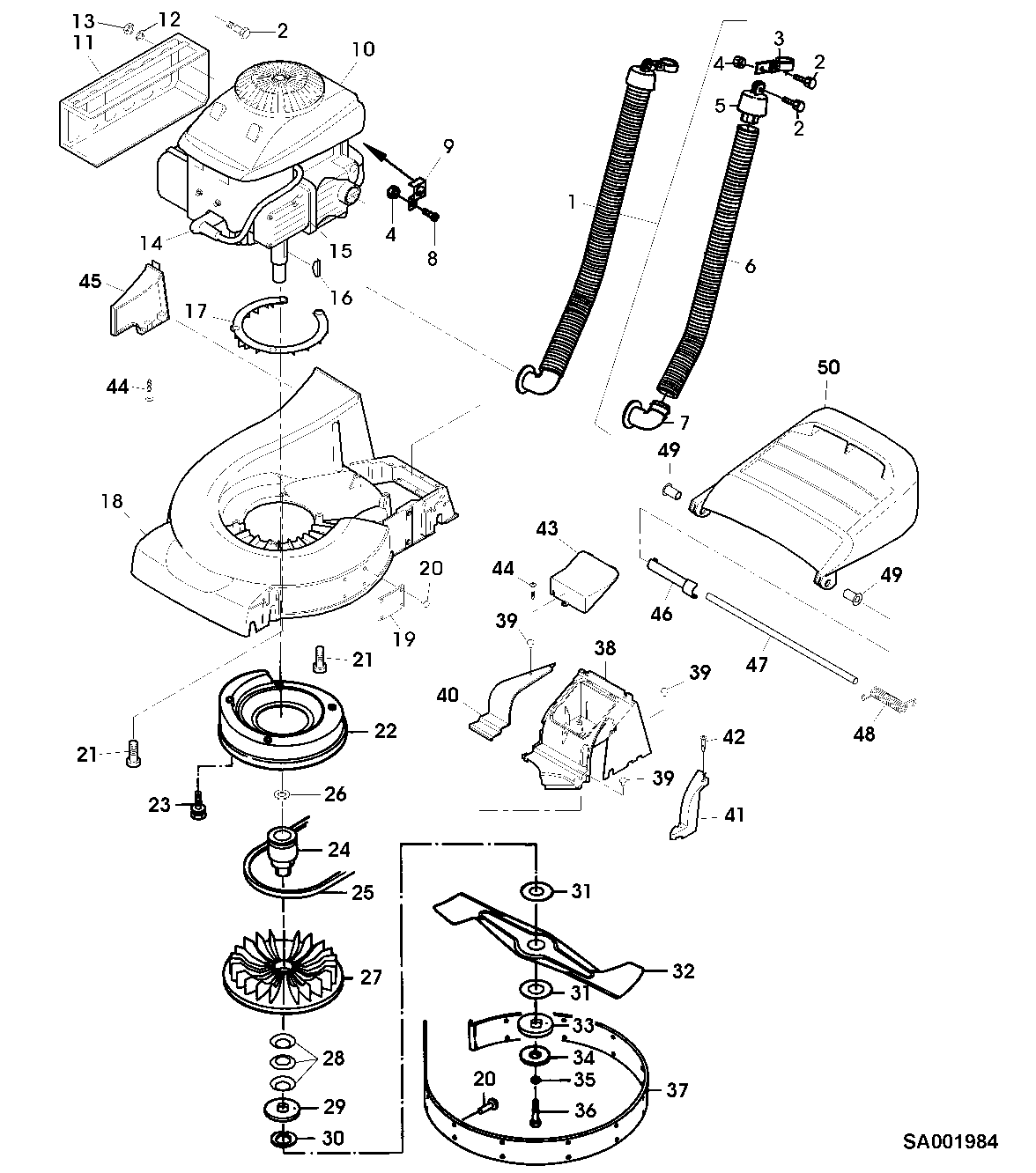

HOUSING,ENGINE, MOWER DECK, DISCHARGE, INTAKE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SAA34034	1	Air Intake Stack	-
2	19M7077	3	Cap Screw	M6 X 20, M6X20, (SUB FOR SA15323)
3	SA30697	1	Hose Clamp	-
4	SA11244	2	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M6
5	SA34017	1	Cover	-
6	SA33275	1	Hose	-
7	SA34028	1	Exhaust Manifold	-
8	SA34450	1	Screw	CM 6, 0X10, DUO TAPTITE
9	SA35387	1	Cradle	-
10	SAA37108	1	Gasoline Engine	SUB FOR SA20961, MOTOCO, SB152
11	SAA30658	1	Grate	-
12	SA15251	1	Spring Washer	B6
13	SA15412	1	Nut	M6
14	SA18101	1	Spark Plug	-
15	SA20235	1	Air Filter	-
16	SA26554	1	Shaft Key	4, 77X 6
17	SA36670	1	Guard	-
18	SAA36684	1	Mower Deck	INCL KEYS 19, 20, 37
19	SAA17135	2	Sheet	-
20	SA34540	20	Rivet	-
21	SA15568	4	Screw	M8X20
22	SAA14920	1	Air Plenum	SUB FOR SA36683
23	SA29854	3	Bolt	M5X12
24	SA32634	1	Pulley	-
25	SA36536	1	V-Belt	-
26	SA15205	1	Washer	10, 5
27	SAA17149	1	Fan	-
28	SA37507	3	Disk Spring	(ONLY AVAILABLE AS PACKAGED SETS)
29	SA16584	1	Thrust Washer	-
30	SA30850	1	Snap Ring	(ONLY AVAILABLE AS PACKAGED SETS) 32X1, 25
31	SAA11144	2	Lining	(ONLY AVAILABLE AS PACKAGED SETS)
32	SAA37553	1	Knife	-
33	SAA11143	1	Thrust Washer	-
34	SA29787	1	Disk	-
35	SA37178	1	Lock Washer	(ONLY AVAILABLE AS PACKAGED SETS) S10
36	SA15593	1	Bolt	NF3/8X57, 15
37	SAA37245	1	Lock Plate	-
38	SAA37009	1	Housing	(SUB FOR SA36475) (INCLUDES SAU10610)
39	SA34452	4	Screw	CM 6, 0X14, DUO TAPTITE
40	SA36570	1	Cover	-
41	SA36628	1	Orifice	-
42	SA31377	2	Bolt	KBL 50X14
43	SA36481	1	Cover	-
44	SA34487	3	Bolt	K 60X14
45	SA36476	1	Shield	-
46	SA36662	1	Orifice	-
47	SA36512	1	Axle	-
48	SA36572	1	Torsion Spring	-
49	SA36569	2	Bearing	-
50	SA36516	1	Grass Deflector	-
..	SA524	1	Grass Mulching Attachment	-

HOUSING,ENGINE, MOWER DECK, DISCHARGE, INTAKE

Нет текстового описания
