ENGINE BRAKE, CONSOLE (SIDE DISCHARGE) MOTOCO SB152

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	NSEP (ORD SA20825)
2	SA20858	1	Arm Kit	ASSY, INCL KEYS 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
3	-	1	Part 3	-
4	-	1	Part 4	-
5	-	1	Part 5	-
6	SA20501	1	Lock Washer	-
7	SA21116	1	Disk	5, 3X10X1, 0
8	-	1	Part 8	-
9	SA16232	1	Screw	M4X20
10	-	1	Part 10	-
11	SA34550	1	Lock Washer	B4
12	SA15410	1	Nut	M4
13	SA20819	1	Strap	-
14	SA15660	1	Screw	M5X12
15	-	1	Part 15	(FOR VERSION WITHOUT ENGINE BRAKE ONLY)
16	SA20201	1	Disk	(FOR VERSION WITHOUT ENGINE BRAKE ONLY)
17	SA15412	1	Nut	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) M6
18	-	1	Part 18	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) M6X18
19	SA20293	1	Sleeve	-
20	-	1	Part 20	M5X28
21	SA15411	3	Nut	M5
22	SA20848	1	Sheet	-
23	SA21116	1	Disk	5, 3X10X1, 0
24	SA20646	1	Spring	-
25	SAA20647	1	Lever	SUB FOR SA20647; ASSY, INCL KEYS 26, 27
26	21M7268	1	Screw	M3 X 6, M3X6, (SUB FOR SA21398)
27	SA20289	1	Pin Fastener	-
28	SA20395	1	Linkage	ASSY, INCL KEYS 29, 30
29	SA20399	1	Bail	-
30	-	1	Part 30	-
31	SA20517	1	Bolt	M5X12
32	SA20396	1	Extension Spring	-
33	SA15411	1	Nut	M5
34	SA15231	1	Lock Washer	A5
35	SA20431	1	Brake Band	-
36	SA20501	2	Lock Washer	-
37	SA20793	1	Engine Overhaul Kit	ASSY, INCL KEYS 38, 39, 40
38	SA20643	1	Handbrake Lever	ASSY, NSEP (ORD SA20793)
39	SA20540	1	Ring	-
40	SA20539	1	Ring	-
41	SA20791	1	Extension Spring	-
42	SA20790	1	Angle	-
..	SA20825	1	Engine Overhaul Kit	ASSY, INCL KEYS 1, 2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, , 27, 28, 29, 30, 31

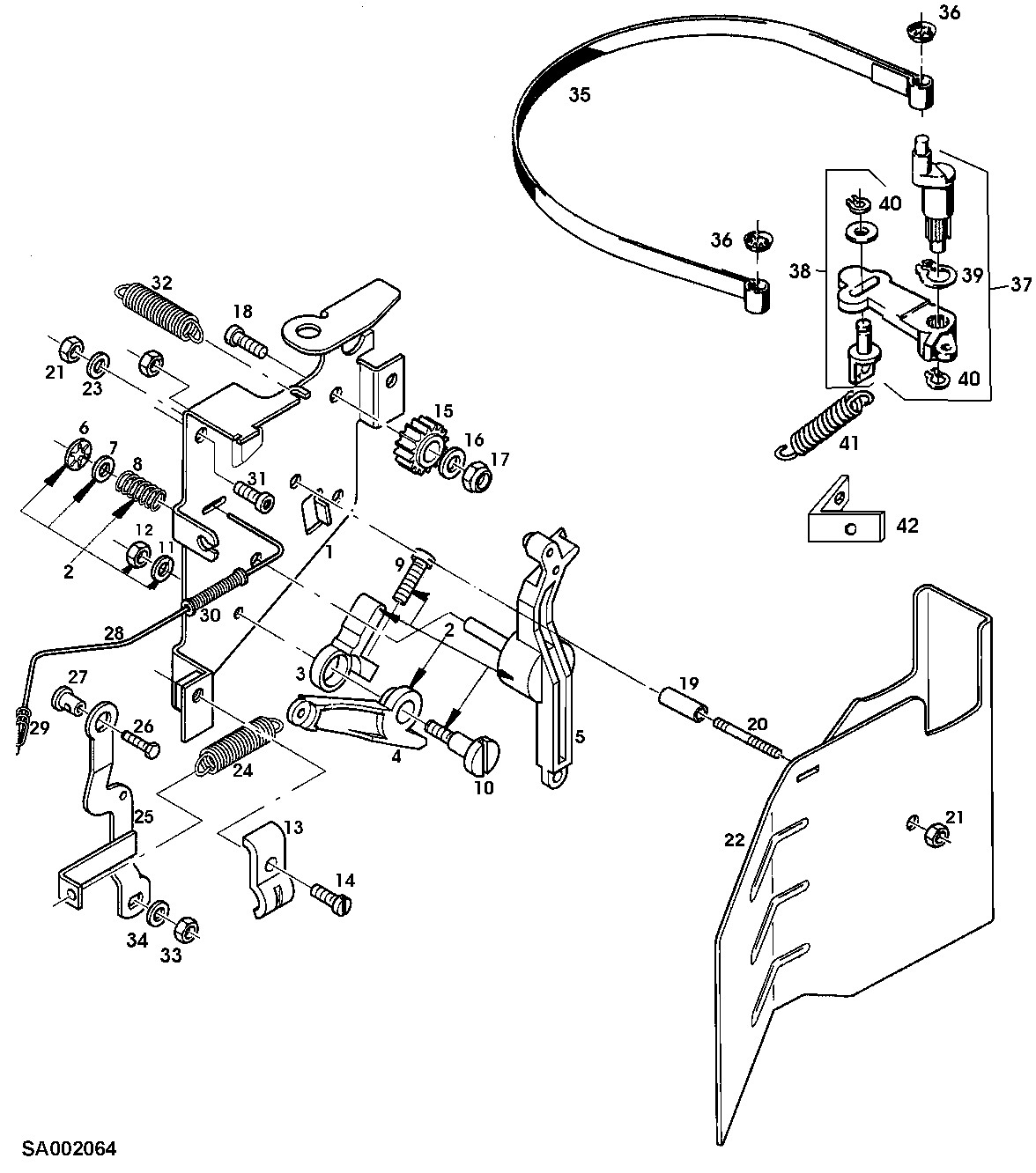

ENGINE BRAKE, CONSOLE (SIDE DISCHARGE) MOTOCO SB152

Нет текстового описания
