ENGINE BRAKE, CONSOLE (REAR DISCHARGE) MOTOCO SB152

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	NSEP (ORD SA20833)
2	SA20858	1	Arm Kit	ASSY, INCL KEYS 3, 4, 5, 6, 7, 8, 9, 10, 11
3	-	1	Part 3	-
4	-	1	Part 4	-
5	SA20501	1	Lock Washer	-
6	SA21116	1	Disk	5, 3X10X1, 0
7	-	1	Part 7	-
8	SA16232	1	Screw	M4X20
9	-	1	Part 9	-
10	SA34550	1	Lock Washer	B4
11	SA15410	1	Nut	M4
12	SA20819	1	Strap	-
13	SA15660	1	Screw	M5X12
14	SA21103	1	Nut	M5
15	-	1	Part 15	(FOR VERSION WITHOUT ENGINE BRAKE ONLY)
16	SA20201	1	Disk	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) 6, 4X12, 5X1, 6
17	SA15412	1	Nut	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) M6
18	-	1	Part 18	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) M6X18
19	SA20293	1	Sleeve	-
20	SA20838	1	Bolt	M5X32
21	SA20847	1	Sheet	-
22	SA20646	1	Spring	-
23	SAA20647	1	Lever	SUB FOR SA20647; ASSY, INCL KEYS 24, 25
24	21M7268	1	Screw	M3 X 6, M3X6, (SUB FOR SA21398)
25	SA20289	1	Pin Fastener	-
26	SA20395	1	Linkage	ASSY, INCL KEYS 27, 28
27	SA20399	1	Bail	-
28	-	1	Part 28	-
29	SA20517	1	Bolt	M5X12
30	SA15411	1	Nut	(FOR VERSION WITHOUT ENGINE BRAKE ONLY) M5
31	SA20396	1	Extension Spring	-
32	SA15411	1	Nut	M5
33	SA15231	1	Lock Washer	A5
34	SA20431	1	Brake Band	-
35	SA20501	2	Lock Washer	-
36	SA20793	1	Engine Overhaul Kit	ASSY, INCL KEYS 37, 38, 39
37	SA20643	1	Handbrake Lever	ASSY, NSEP (ORD SA20793)
38	SA20540	1	Ring	-
39	SA20539	1	Ring	-
40	SA20791	1	Extension Spring	-
41	SA20790	1	Angle	-
..	SA20833	1	Engine Overhaul Kit	ASSY, INCL KEYS 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18 , 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30

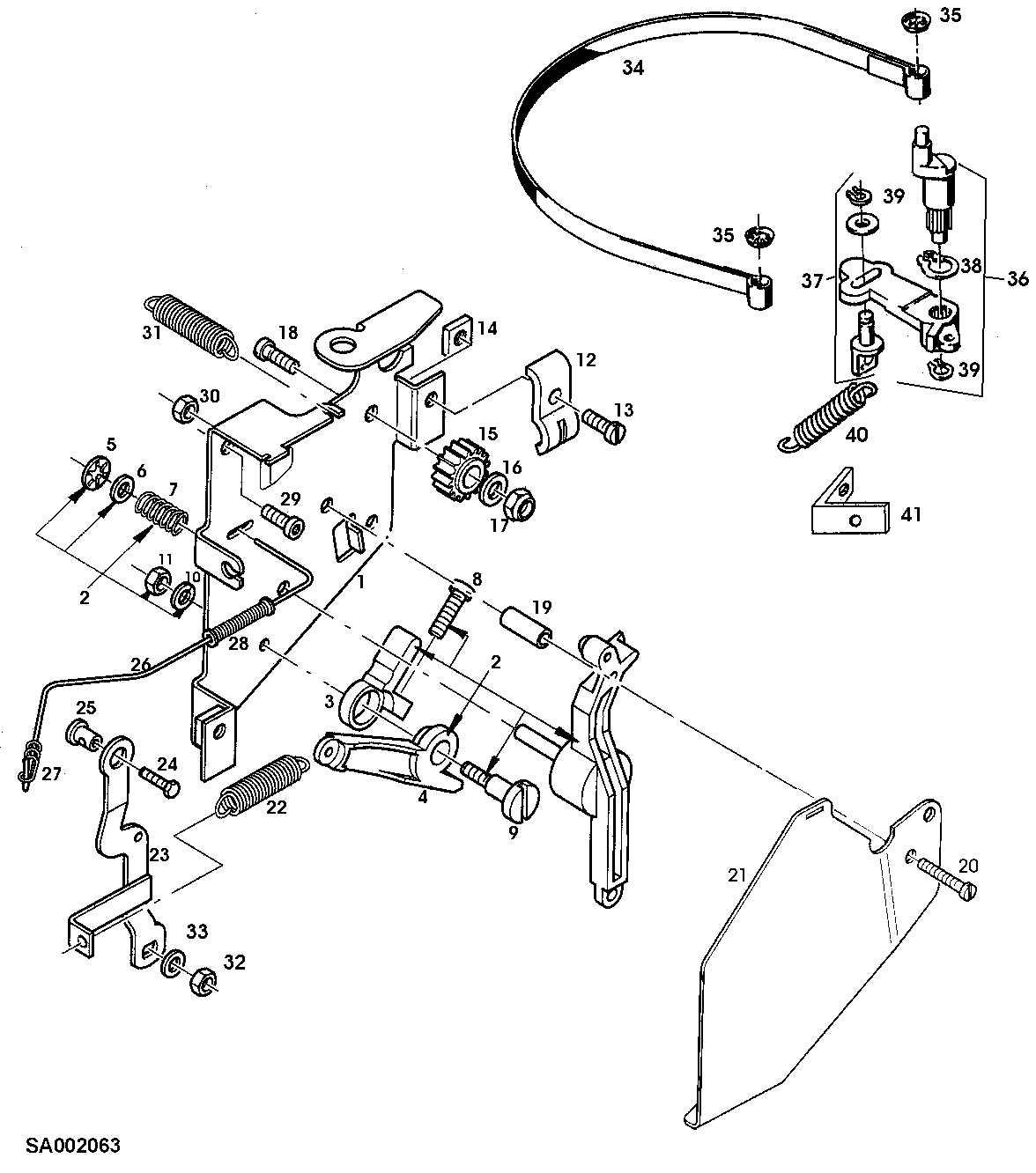

ENGINE BRAKE, CONSOLE (REAR DISCHARGE) MOTOCO SB152
