Two Function Plumbing,Standard Z-Bar ( - 15417)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT464765	1	Hydraulic Hose	-
2	AT390184	1	Fitting Kit	-
3	AT131685	2	Flange Fitting	-
4	24M7240	4	Washer	13 X 25 X 3 mm
5	19M7496	4	Cap Screw	M12 X 45
6	T78393	1	O-Ring	-
7	38H5203	1	Adapter Fitting	-
8	T76938	1	O-Ring	-
9	51M7048	1	O-Ring	29.600 X 2.900 mm
10	38H5153	1	Adapter Fitting	-
11	T77857	1	O-Ring	-
12	51M7043	1	O-Ring	15.300 X 2.200 mm
13	AT498348	1	Hydraulic Hose	-
14	38H5202	2	Adapter Fitting	-
15	T77858	2	O-Ring	-
16	51M7047	2	O-Ring	23.600 X 2.900 mm
17	T78974	3	Clamp	-
18	19M7865	3	Screw	M8 X 16
19	T13976	1	Bushing	-
20	R36311	3	Fitting	-
21	T56112	2	Elbow Fitting	-
22	E12379	2	Nut	-
23	JD7797	1	Lubrication Fitting	-
24	38H5028	4	Elbow Fitting	-
25	51M7047	4	O-Ring	23.600 X 2.900 mm
26	T76938	4	O-Ring	-
27	AT491244	1	Hydraulic Hose	-
28	T76938	1	O-Ring	-
29	AT491246	1	Hydraulic Hose	-
30	38H5018	2	Elbow Fitting	-
31	51M7045	2	O-Ring	19.300 X 2.200 mm
32	T77932	2	O-Ring	-
33	T311991	2	Guide	-
34	AT492854	1	Oil Line	To Hydraulic Cylinder
35	38H5026	1	Elbow Fitting	-
36	51M7043	1	O-Ring	15.300 X 2.200 mm
37	T77613	1	O-Ring	-
38	24M7296	4	Washer	10.500 X 30 X 2.500 mm
39	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
40	T167921	2	Clamp	-
41	19M7805	2	Screw	M10 X 45
42	19M7835	4	Screw	M10 X 35
43	AT490935	1	Oil Line	To Control Valve
44	AT490942	1	Oil Line	To Control Valve
45	R44302	2	Tie Band	-
46	AT489154	2	Bracket	-
47	T405742	4	Guide	-
48	AT499098	1	Cover	-
49	T412015	1	Cover	-
50	19M7786	2	Screw	M10 X 30
51	24H1263	4	Washer	1-1/4" X 2" X 0.060"
52	AT491483	1	Hydraulic Hose	-
53	T77858	1	O-Ring	-
54	AT491483	1	Hydraulic Hose	-
55	T77858	1	O-Ring	-
56	38H5094	2	Nut	1-3/16"
57	TY22494	2	Hose Clamp	ORDER TY22495
57	TY22495	2	Hose Clamp	-
58	AT488029	2	Oil Line	-
59	AT490675	1	Hydraulic Hose	To Control Valve
60	T76938	2	O-Ring	-
61	AT490675	1	Hydraulic Hose	To Control Valve
62	T76938	2	O-Ring	-
63	AT483777	1	Hydraulic Hose	To Control Valve
64	38H5076	1	Adapter Fitting	-
65	T77857	1	O-Ring	-
66	51M7045	1	O-Ring	19.300 X 2.200 mm
67	AT484221	1	Hydraulic Hose	To Control Valve
68	38H5135	1	Fitting	-
69	T77857	1	O-Ring	-
70	51M7042	1	O-Ring	13.300 X 2.200 mm
71	19M7775	2	Screw	M6 X 16
72	U46753	2	Hose Clamp	-
73	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
74	19M9803	1	Socket Head Screw	M10 X 40
75	14M7517	1	Lock Nut	M10
76	AT498538	1	Hydraulic Hose	To Control Valve
77	T77858	1	O-Ring	-
78	AT498538	1	Hydraulic Hose	To Control Valve
79	T77858	1	O-Ring	-
80	38H5037	1	Adapter Fitting	-
81	T77613	1	O-Ring	-
82	51M7042	1	O-Ring	13.300 X 2.200 mm
83	38H5145	1	Elbow Fitting	-
84	T77613	1	O-Ring	-
85	AT499088	1	Grease Hose	Grease Front Oscillation Support
86	AT499080	1	Grease Hose	Grease Front Oscillation Support
87	T219672	1	Elbow Fitting	-
88	TY22495	4	Hose Clamp	-
89	15H84	1	Coupling	1/8", ORDER T219672

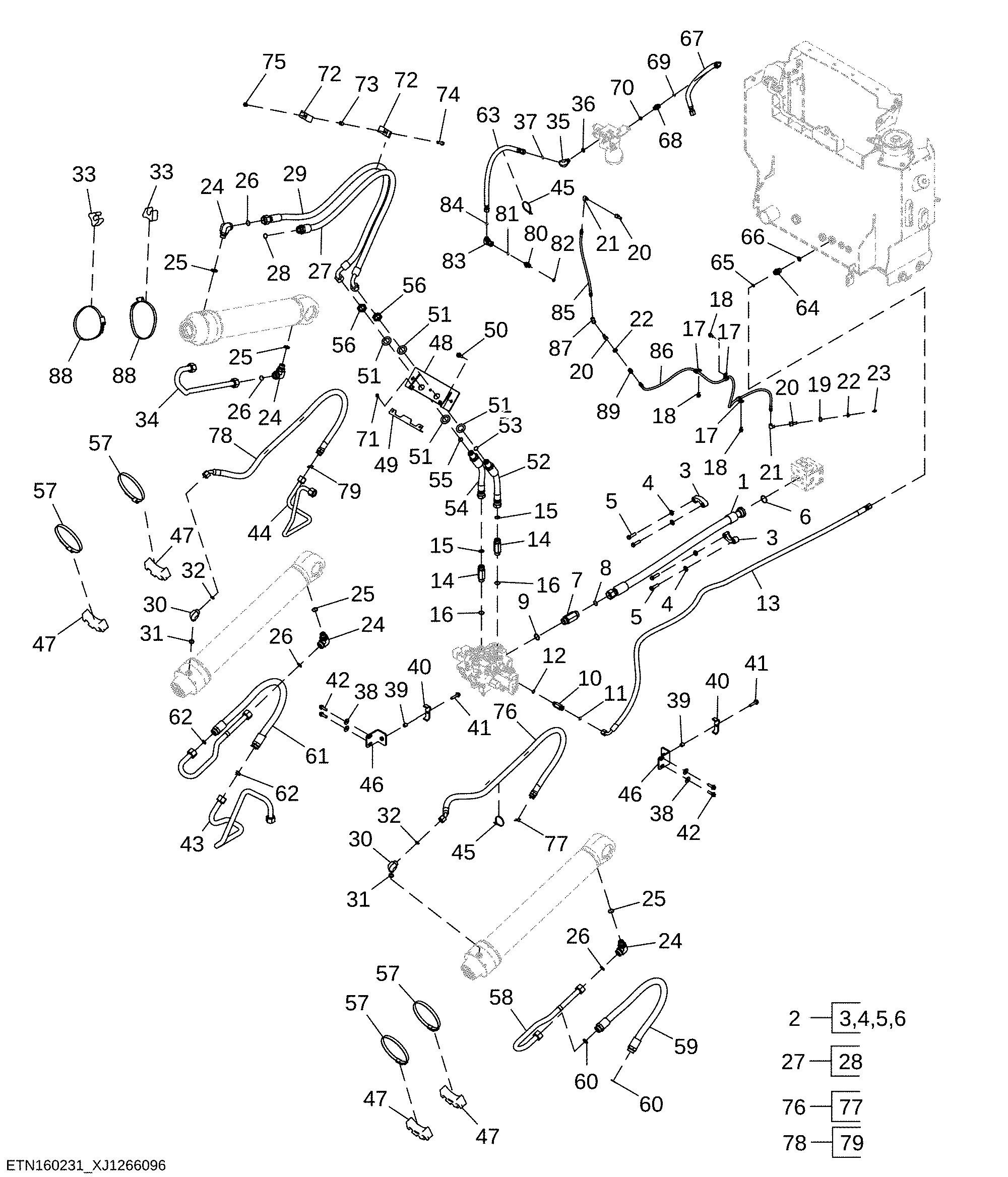

Two Function Plumbing,Standard Z-Bar ( - 15417)
