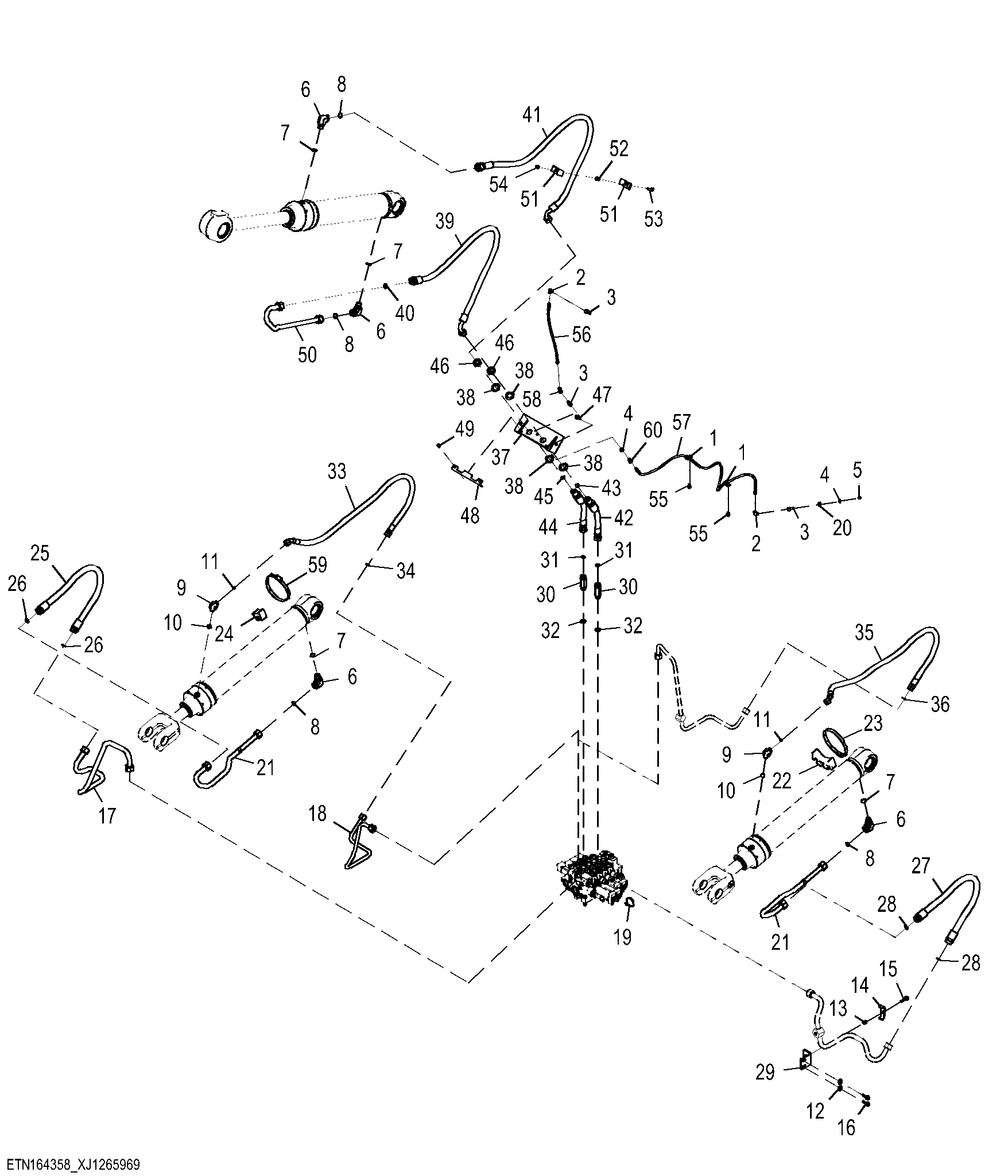

Two Function Hydraulic Lines, High Lift Plus Z-Bar (1 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T78974	3	Clamp	-
2	T56112	2	Elbow Fitting	-
3	R36311	3	Fitting	-
4	E12379	2	Nut	-
5	JD7797	1	Lubrication Fitting	-
6	38H5028	4	Elbow Fitting	-
7	51M7047	4	O-Ring	23.600 X 2.900 mm
8	T76938	4	O-Ring	-
9	38H5018	2	Elbow Fitting	-
10	51M7045	2	O-Ring	19.300 X 2.200 mm
11	T77932	2	O-Ring	-
12	24M7296	4	Washer	10.500 X 30 X 2.500 mm
13	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
14	T167921	2	Clamp	-
15	19M7805	2	Screw	M10 X 45
16	19M7835	4	Screw	M10 X 35
17	AT490935	1	Oil Line	-
18	AT490942	1	Oil Line	-
19	R44302	2	Tie Band	-
20	T13976	1	Bushing	-
21	AT488029	2	Oil Line	-
22	T405742	4	Guide	-
23	TY22495	2	Hose Clamp	-
24	T311991	2	Guide	-
25	AT490675	1	Hydraulic Hose	INCLUDES (2) T76938
26	T76938	2	O-Ring	-
27	AT490675	1	Hydraulic Hose	INCLUDES (2) T76938
28	T76938	2	O-Ring	-
29	AT489154	2	Bracket	-
30	38H5202	2	Adapter Fitting	-
31	T77858	2	O-Ring	-
32	51M7047	2	O-Ring	23.600 X 2.900 mm
33	AT498538	1	Hydraulic Hose	INCLUDES T77858
34	T77858	1	O-Ring	-
35	AT498538	1	Hydraulic Hose	INCLUDES T77858
36	T77858	1	O-Ring	-
37	AT499098	1	Cover	-
38	24H1263	4	Washer	1-1/4" X 2" X 0.060"
39	AT491244	1	Hydraulic Hose	INCLUDES T76938
40	T76938	1	O-Ring	-
41	AT491246	1	Hydraulic Hose	-
42	AT491483	1	Hydraulic Hose	INCLUDES T77858
43	T77858	1	O-Ring	-
44	AT491483	1	Hydraulic Hose	INCLUDES T77858
45	T77858	1	O-Ring	-
46	38H5094	2	Nut	1-3/16"
47	19M7786	2	Screw	M10 X 30
48	T412015	1	Cover	-
49	19M7775	2	Screw	M6 X 16
50	AT492854	1	Oil Line	-
51	U46753	2	Hose Clamp	-
52	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
53	19M9803	1	Socket Head Screw	M10 X 40
54	14M7517	1	Lock Nut	M10
55	19M7865	3	Screw	M8 X 16
56	AT499088	1	Grease Hose	Grease Front Oscillation Support
57	AT499080	1	Grease Hose	Grease Front Oscillation Support
58	T219672	1	Elbow Fitting	-
59	TY22494	4	Hose Clamp	ORDER TY22495
59	TY22495	4	Hose Clamp	-
60	15H84	1	Coupling	1/8", ORDER T219672
