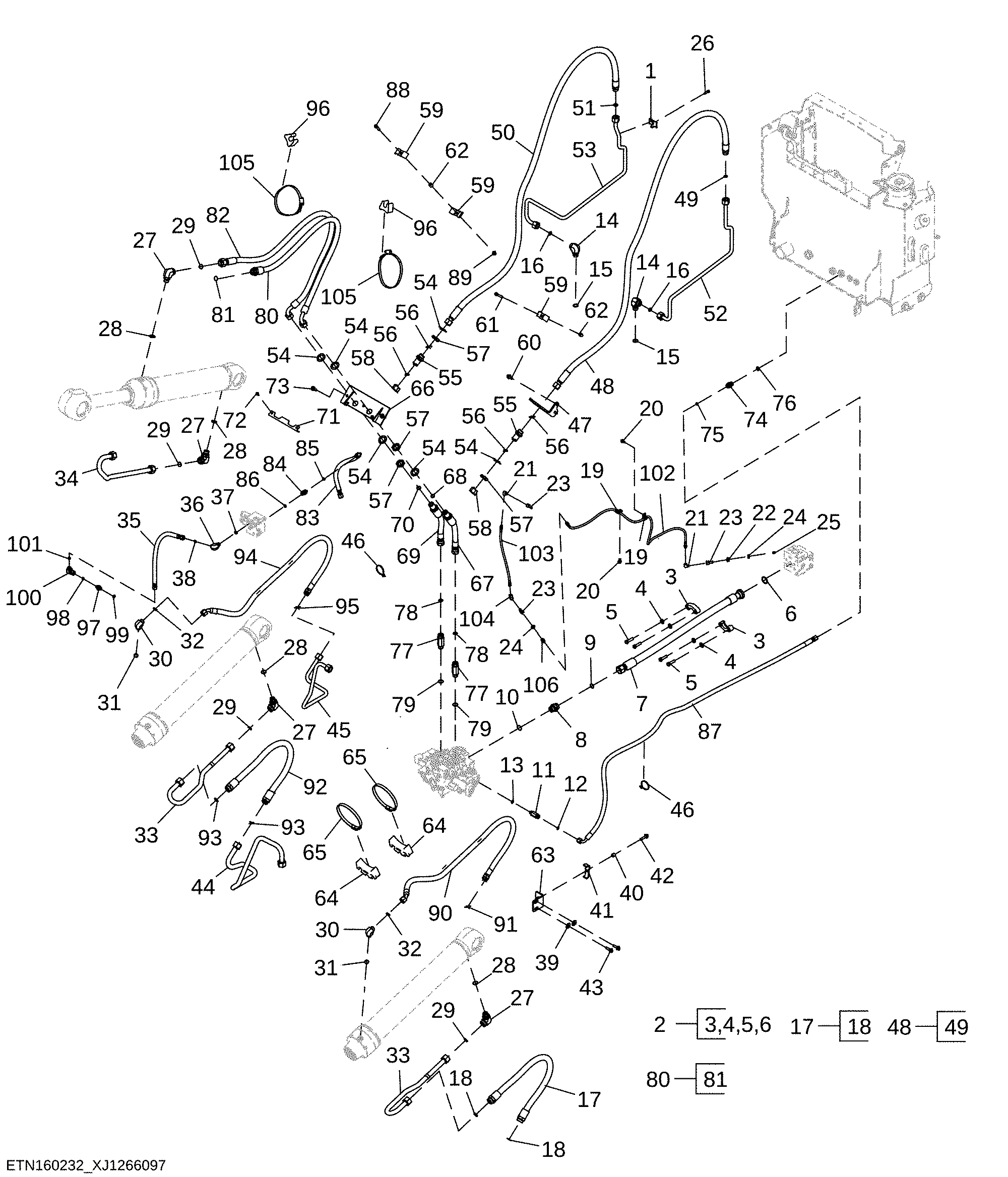

Three Function Plumbing,Standard Z-Bar ( - 15417)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T160549	1	Clamp	-
2	AT390184	1	Fitting Kit	-
3	AT131685	2	Flange Fitting	-
4	24M7240	4	Washer	13 X 25 X 3 mm
5	19M7496	4	Cap Screw	M12 X 45
6	T78393	1	O-Ring	-
7	AT464765	1	Hydraulic Hose	-
8	38H5006	1	Adapter Fitting	-
9	T76938	1	O-Ring	-
10	51M7048	1	O-Ring	29.600 X 2.900 mm
11	38H5153	1	Adapter Fitting	-
12	T77857	1	O-Ring	-
13	51M7043	1	O-Ring	15.300 X 2.200 mm
14	38H5019	2	Elbow Fitting	-
15	51M7047	2	O-Ring	23.600 X 2.900 mm
16	T77858	2	O-Ring	-
17	AT490675	1	Hydraulic Hose	To Control Valve
18	T76938	2	O-Ring	-
19	T78974	3	Clamp	-
20	19M7865	3	Screw	M8 X 16
21	T56112	2	Elbow Fitting	-
22	T13976	1	Bushing	-
23	R36311	3	Fitting	-
24	E12379	2	Nut	-
25	JD7797	1	Lubrication Fitting	-
26	19M7657	1	Screw	M8 X 25
27	38H5028	4	Elbow Fitting	-
28	51M7047	4	O-Ring	23.600 X 2.900 mm
29	T76938	4	O-Ring	-
30	38H5018	2	Elbow Fitting	-
31	51M7045	2	O-Ring	19.300 X 2.200 mm
32	T77932	2	O-Ring	-
33	AT488029	2	Oil Line	Boom Cylinder
34	AT492854	1	Oil Line	To Hydraulic Cylinder
35	AT483777	1	Hydraulic Hose	To Control Valve
36	38H5026	1	Elbow Fitting	-
37	51M7043	1	O-Ring	15.300 X 2.200 mm
38	T77613	1	O-Ring	-
39	24M7296	4	Washer	10.500 X 30 X 2.500 mm
40	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
41	T167921	2	Clamp	-
42	19M7805	2	Screw	M10 X 45
43	19M7835	4	Screw	M10 X 35
44	AT490935	1	Oil Line	To Control Valve
45	AT490942	1	Oil Line	To Control Valve
46	R44302	2	Tie Band	-
47	T404895	1	Bracket	-
48	AT486142	1	Hydraulic Hose	To Control Valve
49	T77858	1	O-Ring	-
50	AT486142	1	Hydraulic Hose	To Control Valve
51	T77858	1	O-Ring	-
52	AT492092	1	Oil Line	To Control Valve
53	AT492091	1	Oil Line	To Control Valve
54	24H1263	6	Washer	1-1/4" X 2" X 0.060"
55	38H5219	2	Union Fitting	-
56	T77858	4	O-Ring	-
57	38H5094	4	Nut	1-3/16"
58	38H5456	2	Fitting	-
59	U46753	5	Hose Clamp	-
60	19M7784	2	Screw	M10 X 20
61	19M8954	1	Screw	M10 X 60
62	28H3383	3	Bushing	0.493" X 0.675" X 3/4"
63	AT489154	2	Bracket	-
64	T405742	4	Guide	-
65	TY22495	4	Hose Clamp	-
66	AT499098	1	Cover	-
67	AT491483	1	Hydraulic Hose	-
68	T77858	1	O-Ring	-
69	AT491483	1	Hydraulic Hose	-
70	T77858	1	O-Ring	-
71	T412015	1	Cover	-
72	19M7775	2	Screw	M6 X 16
73	19M7786	2	Screw	M10 X 30
74	38H5076	1	Adapter Fitting	-
75	T77857	1	O-Ring	-
76	51M7045	1	O-Ring	19.300 X 2.200 mm
77	38H5202	2	Adapter Fitting	-
78	T77858	2	O-Ring	-
79	51M7047	2	O-Ring	23.600 X 2.900 mm
80	AT491244	1	Hydraulic Hose	To Hydraulic Cylinder
81	T76938	1	O-Ring	-
82	AT491246	1	Hydraulic Hose	-
83	AT484221	1	Hydraulic Hose	To Pilot Manifold
84	38H5135	1	Fitting	-
85	T77857	1	O-Ring	-
86	51M7042	1	O-Ring	13.300 X 2.200 mm
87	AT498348	1	Hydraulic Hose	-
88	19M9803	2	Socket Head Screw	M10 X 40
89	14M7517	2	Lock Nut	M10
90	AT498538	1	Hydraulic Hose	To Control Valve
91	T77858	1	O-Ring	-
92	AT490675	1	Hydraulic Hose	To Control Valve
93	T76938	2	O-Ring	-
94	AT498538	1	Hydraulic Hose	To Control Valve
95	T77858	1	O-Ring	-
96	T311991	2	Guide	-
97	38H5037	1	Adapter Fitting	-
98	T77613	1	O-Ring	-
99	51M7042	1	O-Ring	13.300 X 2.200 mm
100	38H5145	1	Elbow Fitting	-
101	T77613	1	O-Ring	-
102	AT499080	1	Grease Hose	Grease Front Oscillation Support
103	AT499088	1	Grease Hose	Grease Front Oscillation Support
104	T219672	1	Elbow Fitting	-
105	TY22494	2	Hose Clamp	ORDER TY22495
105	TY22495	2	Hose Clamp	-
106	15H84	1	Coupling	1/8", ORDER T219672

Three Function Plumbing,Standard Z-Bar ( - 15417)
