Three Function Auxiliary Control Valve and Hoses Kit ( - 15417)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11230	1	Mounting Parts	Whole Goods
2	T160549	1	Clamp	-
3	38H5006	1	Adapter Fitting	-
4	T76938	1	O-Ring	-
5	51M7048	1	O-Ring	29.600 X 2.900 mm
6	38H5019	2	Elbow Fitting	-
7	51M7047	2	O-Ring	23.600 X 2.900 mm
8	T77858	2	O-Ring	-
9	19M7657	1	Screw	M8 X 25
10	T404895	1	Bracket	-
11	AT486151	1	Hydraulic Hose	High Lift Plus, INCLUDES T77858
11	AT486103	1	Hydraulic Hose	High Lift, INCLUDES T77858
11	AT486142	1	Hydraulic Hose	Standard, INCLUDES T77858
12	T77858	1	O-Ring	-
13	AT486142	1	Hydraulic Hose	Standard, INCLUDES T77858
13	AT486103	1	Hydraulic Hose	High Lift, INCLUDES T77858
13	AT486151	1	Hydraulic Hose	High Lift Plus, INCLUDES T77858
14	T77858	1	O-Ring	-
15	AT492092	1	Oil Line	-
16	AT492091	1	Oil Line	-
17	24H1263	2	Washer	1-1/4" X 2" X 0.060"
18	38H5219	4	Union Fitting	-
19	T77858	8	O-Ring	-
20	38H5094	4	Nut	1-3/16"
21	38H5456	4	Fitting	-
22	AT485829	1	Bracket	-
23	U46753	5	Hose Clamp	-
24	19M7784	4	Screw	M10 X 20
25	19M8954	1	Screw	M10 X 60
26	28H3383	3	Bushing	0.493" X 0.675" X 3/4"
27	19M9803	1	Socket Head Screw	M10 X 40
28	14M7517	1	Lock Nut	M10
29	AT490618	2	Hydraulic Hose	-
30	T174275	2	Lock Washer	-
31	19M7805	1	Screw	M10 X 45
32	14M7400	1	Lock Nut	M10
33	AT490619	2	Hydraulic Hose	-
34	AT490620	2	Hydraulic Hose	-
35	AT490616	2	Hydraulic Hose	-
36	AT490617	1	Hydraulic Hose	-
37	AT490617	1	Hydraulic Hose	-
38	AT488584	1	Valve Kit	Auxiliary Section Components on Separate Page
38	AT488581	1	Seal Kit	-
39	AT105438	4	Rod	-

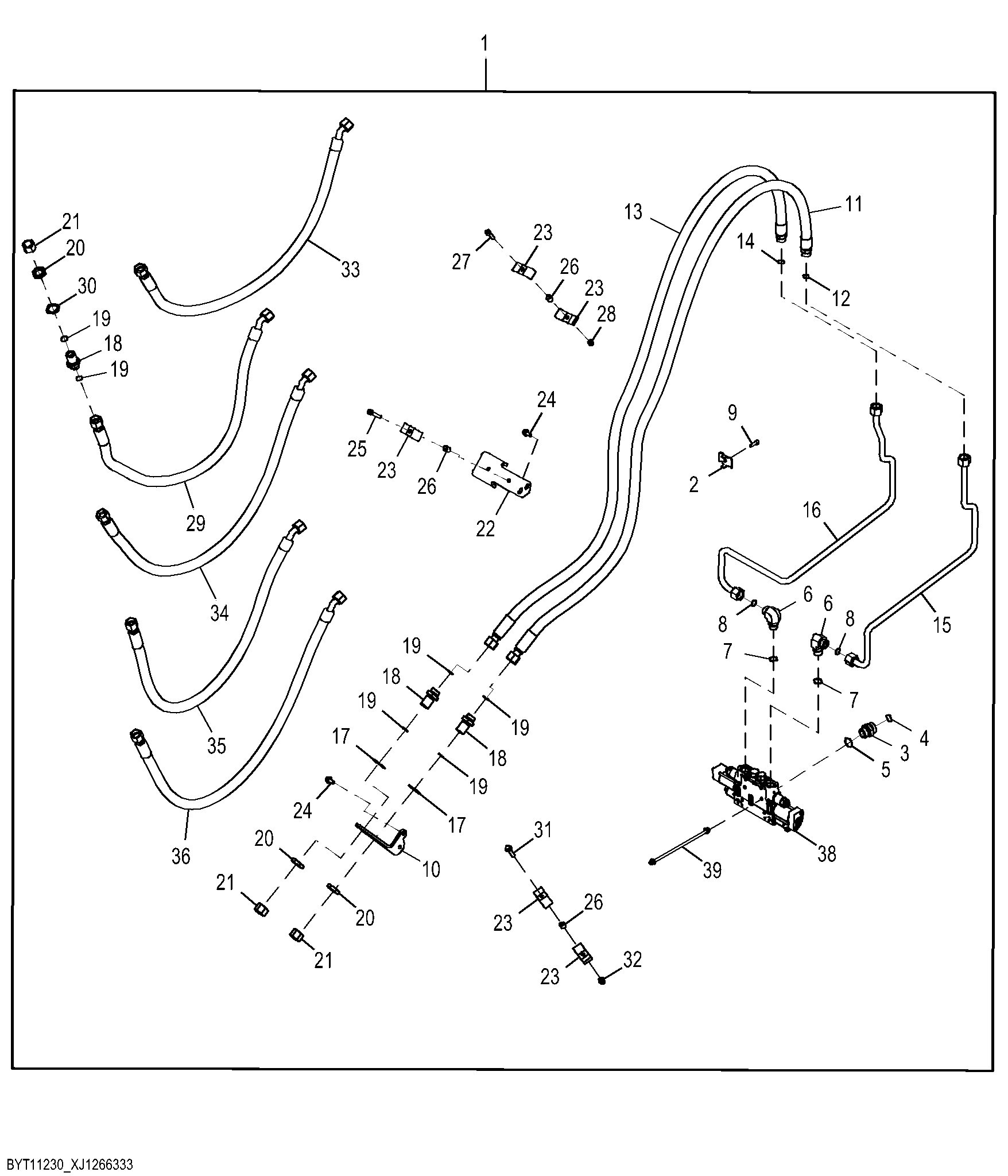

Three Function Auxiliary Control Valve and Hoses Kit ( - 15417)

Нет текстового описания
