Открытый узел

Ride Control System Kit

Ride Control System Kit

Ride Control System Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

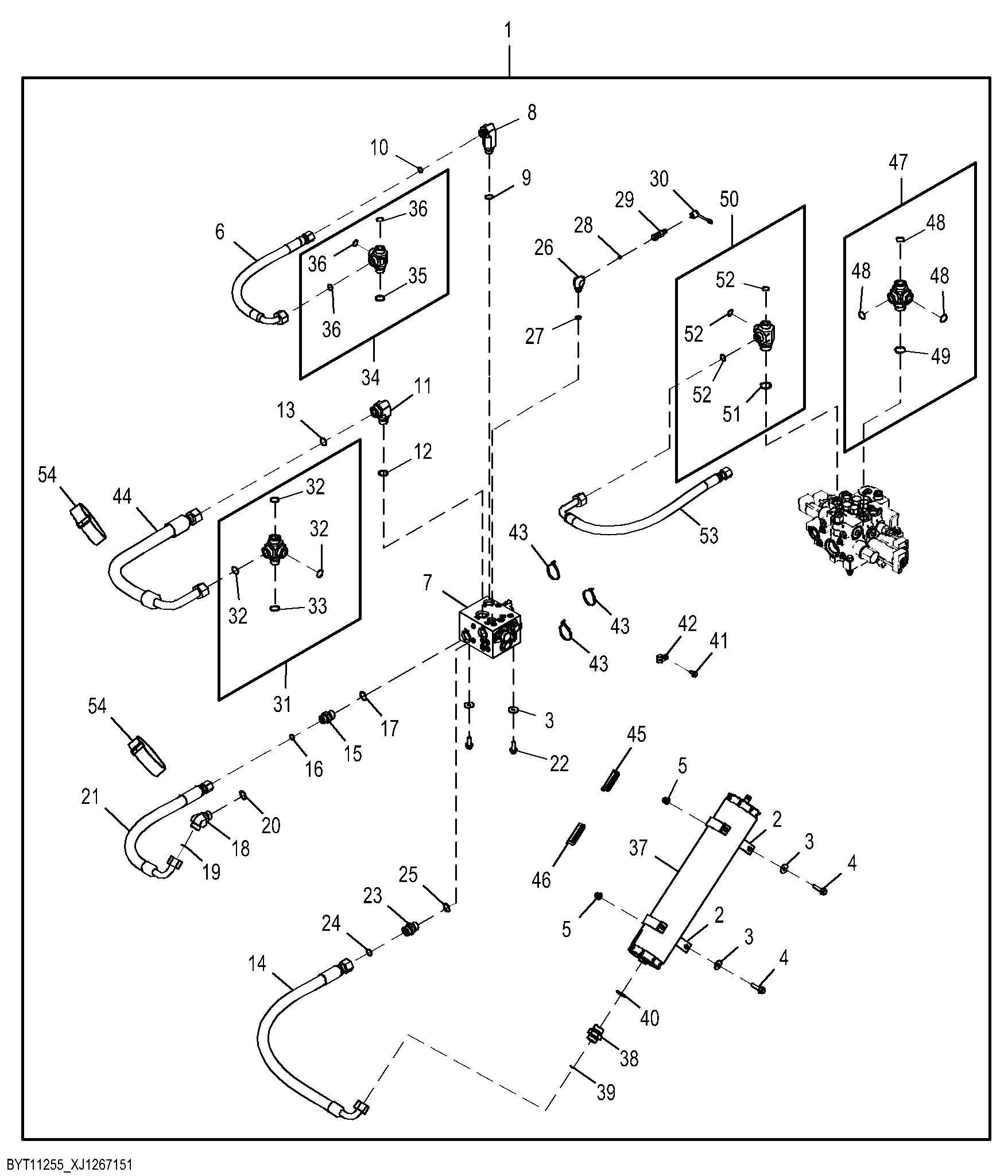

Ride Control System Kit

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11255	1	Mounting Parts	WHOLE GOODS
2	T146490	2	Clamp	-
3	24M7296	6	Washer	10.500 X 30 X 2.500 mm
4	19M7804	4	Screw	M10 X 40
5	14M7400	4	Lock Nut	M10
6	AT465116	1	Hydraulic Hose	-
7	AT466476	1	Hyd Actuated Control Valve	Components on Separate Page
8	38H5519	1	Adapter Fitting	-
9	51M7045	1	O-Ring	19.300 X 2.200 mm
10	T77932	1	O-Ring	-
11	38H5028	1	Elbow Fitting	-
12	51M7047	1	O-Ring	23.600 X 2.900 mm
13	T76938	1	O-Ring	-
14	AT465109	1	Hydraulic Hose	-
14	AT482255	1	Hydraulic Hose	-
14	38H5019	1	Elbow Fitting	-
14	51M7047	1	O-Ring	23.600 X 2.900 mm
14	T77858	1	O-Ring	-
14	AT498319	1	Hydraulic Hose	-
15	38H5152	1	Adapter Fitting	-
16	T77932	1	O-Ring	-
17	51M7047	1	O-Ring	23.600 X 2.900 mm
18	38H5129	1	Elbow Fitting	-
19	T77858	1	O-Ring	-
20	51M7047	1	O-Ring	23.600 X 2.900 mm
21	51M7045	1	O-Ring	19.300 X 2.200 mm
21	T77932	1	O-Ring	-
21	38H5004	1	Adapter Fitting	-
21	AT487369	1	Hydraulic Hose	-
21	AT492319	1	Hydraulic Hose	-
22	19M7786	2	Screw	M10 X 30
23	38H5005	1	Adapter Fitting	-
24	T77858	1	O-Ring	-
25	51M7047	1	O-Ring	23.600 X 2.900 mm
26	38H5244	1	Elbow Fitting	-
27	51M7042	1	O-Ring	13.300 X 2.200 mm
28	T77814	1	O-Ring	-
29	RE60700	1	Diagnostic Coupling	-
30	R77175	1	Cover	-
31	AT466954	1	Fitting	-
32	T76938	3	O-Ring	-
33	51M7047	1	O-Ring	23.600 X 2.900 mm
34	AT466955	1	Fitting	-
35	51M7047	1	O-Ring	23.600 X 2.900 mm
36	T77858	3	O-Ring	-
37	T150961	1	O-Ring	USE WITH AT451188
37	AT451188	1	Valve Kit	Gas Valve, USE WITH AT513930
37	T26209	1	Ring	USE WITH AT196760
37	AT196760	1	Valve Kit	Gas Valve, USE WITH AT490169
37	T225386	1	Safety Sign	Accumulator French, USE WITH AT490169
37	T225385	1	Safety Sign	Accumulator Spanish, USE WITH AT490169
37	T225374	1	Label	Accumulator English, USE WITH AT513930
37	T225375	1	Label	Accumulator French, USE WITH AT513930
37	T225376	1	Label	Accumulator Spanish, USE WITH AT513930
37	AT513930	1	Accumulator Kit	Ride Control Accumulator Service Kit, INCLUDES T225376, T225375, T225374,AND AT451188
37	AT490169	1	Accumulator Kit	Ride Control Accumulator Service Kit, ORDER AT513930; INCLUDES T225384, T225385,AND T225386
37	T225384	1	Safety Sign	Accumulator English, USE WITH AT490169
38	38H5013	1	Adapter Fitting	-
39	T77858	1	O-Ring	-
40	51M7048	1	O-Ring	29.600 X 2.900 mm
41	19M7865	1	Screw	M8 X 16
42	T78974	1	Clamp	-
43	H77698	3	Tie Band	-
44	AT497872	1	Hydraulic Hose	-
45	T146792	3	Safety Sign	Warning, Ride Control
46	T225374	1	Label	Accumulator English, SUB FOR T180944
47	AT475136	1	Fitting	-
48	T76938	3	O-Ring	-
49	51M7048	1	O-Ring	29.600 X 2.900 mm
50	AT475135	1	Fitting	-
51	51M7048	1	O-Ring	29.600 X 2.900 mm
52	T77858	3	O-Ring	-
53	AT486668	1	Hydraulic Hose	Fabricated
54	T256668	2	Adjusting Strap	-
