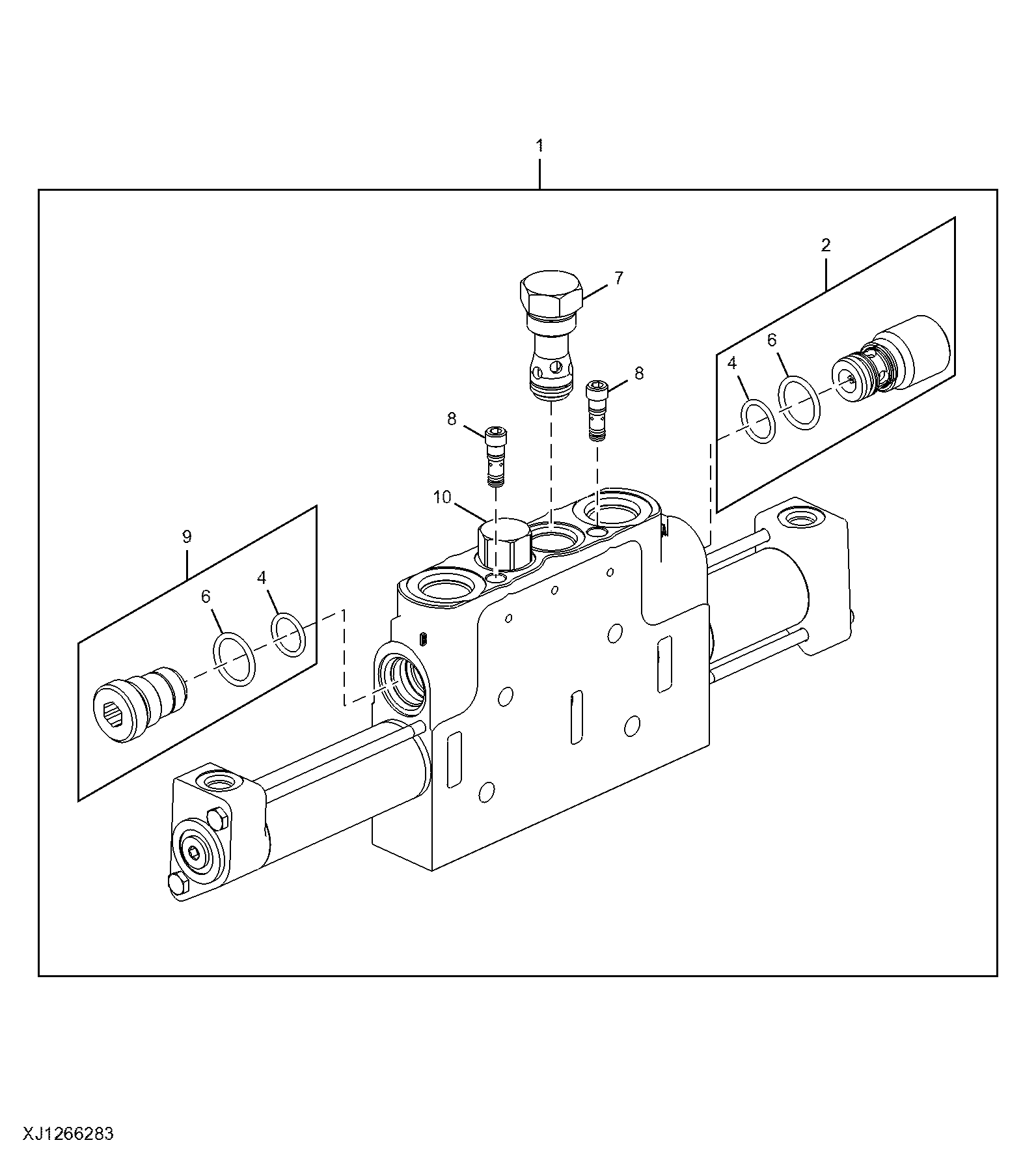

Loader Control Valve, Boom Section, Tool Carrier

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT522343	1	Valve Kit	Boom Section
1	AT488591	1	Valve Kit	Pilot End Cap Seal Kit
1	AT488589	2	Solenoid Hydraulic Valve	INCLUDES AT319043 AND (2) F308978
1	T171072	2	Cap Screw	-
1	19H3776	2	Cap Screw	1/4" X 6-1/4"
1	AT319043	1	Seal Kit	Actuator Seal Kit
1	F308978	2	Cap Screw	-
1	AT488581	1	Seal Kit	Work Section Seal Kit
1	AT493572	1	Valve Kit	Boom Section, ORDER AT522343
2	AT170991	1	O-Ring Kit	Anti-Cavity Valve Seal
2	T154187	1	Back-Up Ring	-
2	T144698	1	Back-Up Ring	ORDER T154187
2	AT103440	1	Valve Kit	ORDER AT170991
2	AT516879	1	Hyd Actuated Control Valve	Anti-Cavity Valve Seal
2	AT104051	1	Poppet	Anticavitation Valve, ORDER AT516879
4	AT124574	1	O-Ring	-
6	U12547	1	O-Ring	-
7	AT314011	1	Valve	Load Check
8	AT537476	2	Check Valve	Check, SUB FOR AT314012
9	AT314019	1	Valve	Relief Valve Plug, ORDER AT516879
9	AT516879	1	Hyd Actuated Control Valve	Relief Valve Plug
9	T144698	1	Back-Up Ring	ORDER T154187
9	T154187	1	Back-Up Ring	-
10	AT489727	1	Compensator	-
10	R26906	1	O-Ring	-

Loader Control Valve, Boom Section, Tool Carrier
