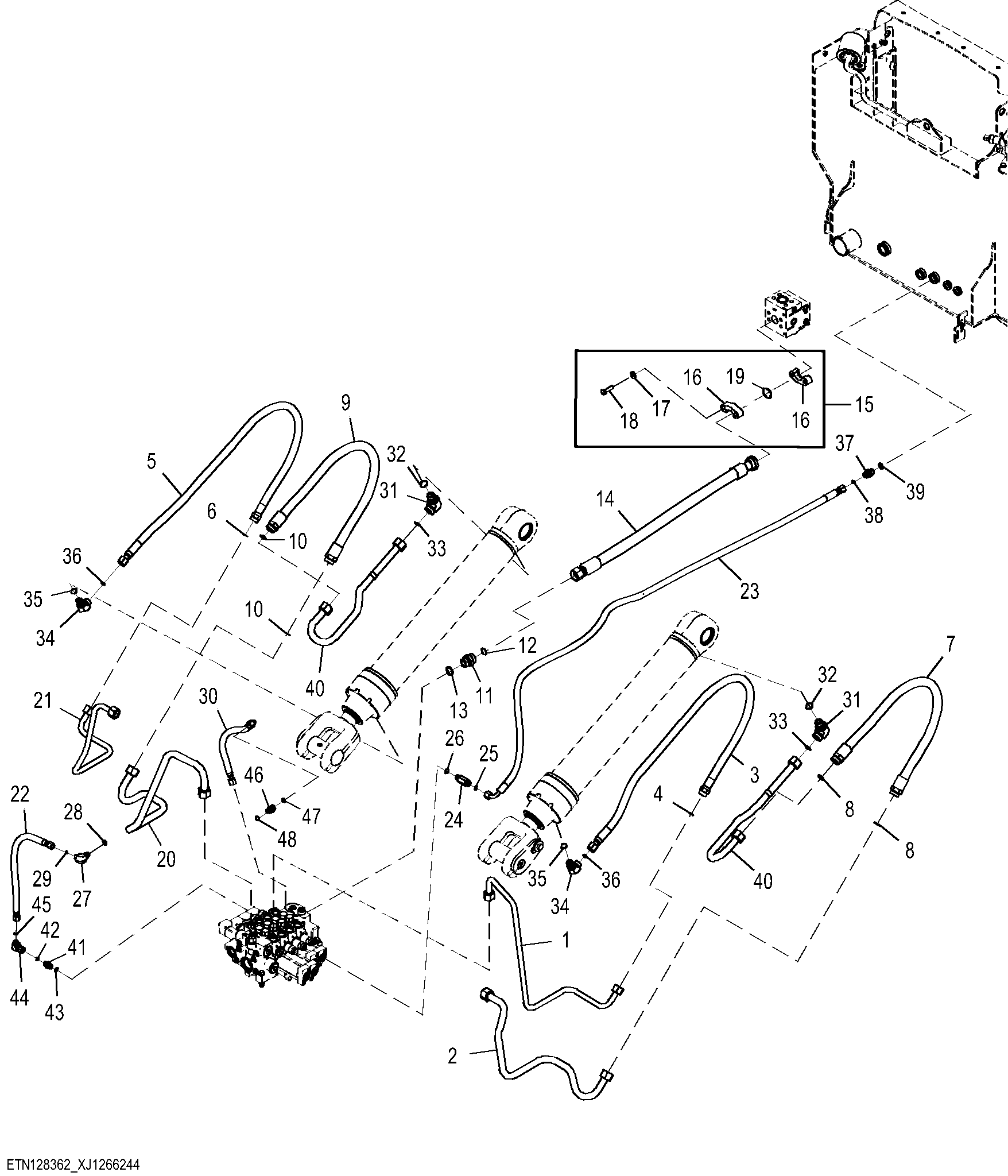

Four Function Plumbing,Tool Carrier Linkage (2 of 3) ( - 15417)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT463477	1	Oil Line	-
2	AT463478	1	Oil Line	-
3	AT483545	1	Hydraulic Hose	INCLUDES T77858
4	T77858	1	O-Ring	-
5	AT483545	1	Hydraulic Hose	INCLUDES T77858
6	T77858	1	O-Ring	-
7	AT483546	1	Hydraulic Hose	INCLUDES (2) T76938
8	T76938	2	O-Ring	-
9	AT483546	1	Hydraulic Hose	INCLUDES (2) T76938
10	T76938	2	O-Ring	-
11	38H5006	1	Adapter Fitting	-
12	T76938	1	O-Ring	-
13	51M7048	1	O-Ring	29.600 X 2.900 mm
14	AT500758	1	Hydraulic Hose	-
15	AT390184	1	Fitting Kit	-
16	AT131685	2	Flange Fitting	-
17	24M7240	4	Washer	13 X 25 X 3 mm
18	19M7496	4	Cap Screw	M12 X 45
19	T78393	1	O-Ring	-
20	AT463481	1	Oil Line	-
21	AT463482	1	Oil Line	-
22	AT483777	1	Hydraulic Hose	-
23	AT498348	1	Hydraulic Hose	-
24	38H5153	1	Adapter Fitting	-
25	T77857	1	O-Ring	-
26	51M7043	1	O-Ring	15.300 X 2.200 mm
27	38H5026	1	Elbow Fitting	-
28	51M7043	1	O-Ring	15.300 X 2.200 mm
29	T77613	1	O-Ring	-
30	AT484221	1	Hydraulic Hose	-
31	38H5028	2	Elbow Fitting	-
32	51M7047	2	O-Ring	23.600 X 2.900 mm
33	T76938	2	O-Ring	-
34	38H5018	2	Elbow Fitting	-
35	51M7045	2	O-Ring	19.300 X 2.200 mm
36	T77932	2	O-Ring	-
37	38H5076	1	Adapter Fitting	-
38	T77857	1	O-Ring	-
39	51M7045	1	O-Ring	19.300 X 2.200 mm
40	AT488029	2	Oil Line	-
41	38H5037	1	Adapter Fitting	-
42	T77613	1	O-Ring	-
43	51M7042	1	O-Ring	13.300 X 2.200 mm
44	38H5145	1	Elbow Fitting	-
45	T77613	1	O-Ring	-
46	38H5135	1	Fitting	-
47	T77857	1	O-Ring	-
48	51M7042	1	O-Ring	13.300 X 2.200 mm
