Four Function Auxiliary Control Valve and Hoses Kit, Z-Bar

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11232	1	Mounting Parts	WHOLE GOODS
2	AT485829	1	Bracket	Hose
3	U46753	3	Hose Clamp	-
4	14M7517	1	Lock Nut	M10
5	T397000	1	Bracket	-
6	T160549	1	Clamp	-
7	AT492101	1	Oil Line	-
8	AT492100	1	Oil Line	-
9	AT486142	1	Hydraulic Hose	Standard
9	AT486103	1	Hydraulic Hose	High Lift
9	AT486151	1	Hydraulic Hose	High Lift Plus
10	T77858	1	O-Ring	-
11	AT486142	1	Hydraulic Hose	Standard
11	AT486103	1	Hydraulic Hose	High Lift
11	AT486151	1	Hydraulic Hose	High Lift Plus
12	T77858	1	O-Ring	-
13	AT500758	1	Hydraulic Hose	-
14	38H5005	2	Adapter Fitting	-
15	T77858	2	O-Ring	-
16	51M7047	2	O-Ring	23.600 X 2.900 mm
17	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
18	24H1263	2	Washer	1-1/4" X 2" X 0.060"
19	19M9803	1	Socket Head Screw	M10 X 40
20	19M8954	1	Screw	M10 X 60
21	19M7784	4	Screw	M10 X 20
22	19M7657	1	Screw	M8 X 25
23	38H5219	2	Union Fitting	-
24	T77858	4	O-Ring	-
25	38H5094	2	Nut	1-3/16"
26	38H5456	2	Fitting	-
27	T78393	1	O-Ring	-
28	AT488584	1	Valve Kit	Auxiliary Section
28	AT488581	1	Seal Kit	-
29	AT314026	4	Rod	Four Section

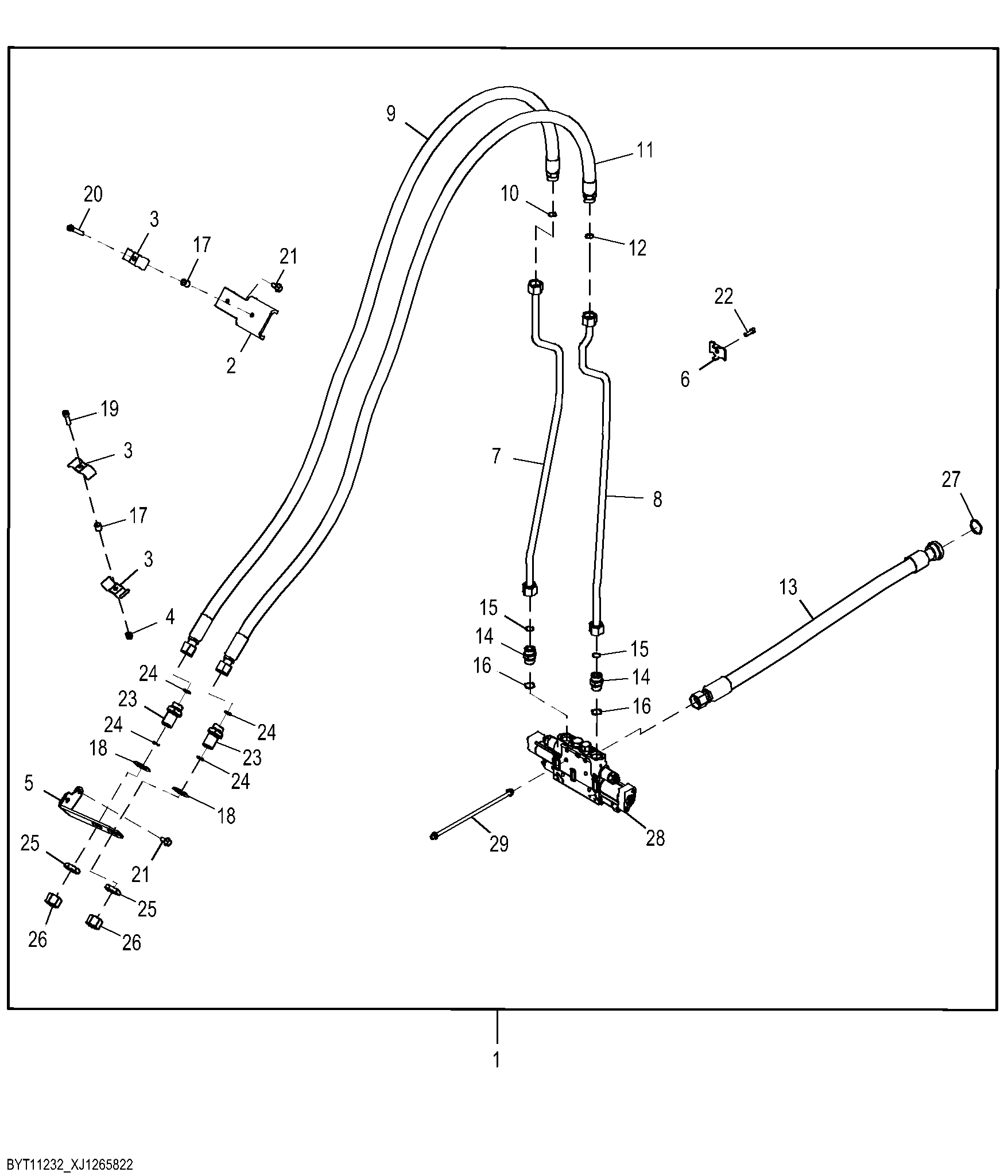

Four Function Auxiliary Control Valve and Hoses Kit, Z-Bar
