Engine Mounting Parts (Engine 6068DW501-DZ114141)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT169022	4	Isolator	Resilient Mount Isolator
2	T380912	1	Support	Engine Support, Rear
3	T380914	1	Support	Engine Support, Rear
4	T184924	1	Hose Clamp	-
5	24M7241	4	Washer	17 X 34 X 4 mm
6	T42977	4	Washer	-
7	AT376005	1	Bracket	Oil Fill Bracket
8	19M7788	2	Screw	M12 X 25
9	T265709	1	Hose	Hose, Oil Fill
10	T274872	2	Support	Engine Mount Support
11	19M8112	8	Screw	M12 X 55
12	RE542844	1	Filler Cap	Oil Fill Bracket Cap
13	H156922	1	Hose Clamp	-
14	T309744	1	Fitting	-
15	51M7045	1	O-Ring	19.300 X 2.200 mm
16	AT466918	1	Elbow Fitting	-
17	51M7043	1	O-Ring	15.300 X 2.200 mm
18	AT466917	1	Elbow Fitting	-
19	51M7043	1	O-Ring	15.300 X 2.200 mm
20	T345559	1	Fitting	ALSO ORDER 51M7041
21	51M7041	1	O-Ring	11.300 X 2.200 mm
22	19M7489	4	Cap Screw	M16 X 45
23	T352710	1	Heat Shield	-
24	T367562	1	Heat Shield	EGR Valve Shield
25	19M7774	3	Screw	M6 X 12
26	AR21837	2	Clamp	-
27	AT468597	1	Bracket	-
28	19M7784	3	Screw	M10 X 20
29	T78787	1	Clamp	-
30	19M7865	5	Screw	M8 X 16
31	57M8736	4	Elec. Connector Accessory	-
32	-	1	Part 32	Drain Hose, MF TY22551, CTL 1.3 ft
33	RE56097	2	Clamp	-
34	AT337234	4	Weld Nut	-
35	T128096	4	Washer	-
36	19M7968	4	Cap Screw	M20 X 130
37	-	1	Part 37	MF TY22328, CTL 2.8 ft
38	-	1	Part 38	MF TY22328, CTL 2.2 ft
39	R44302	1	Tie Band	-

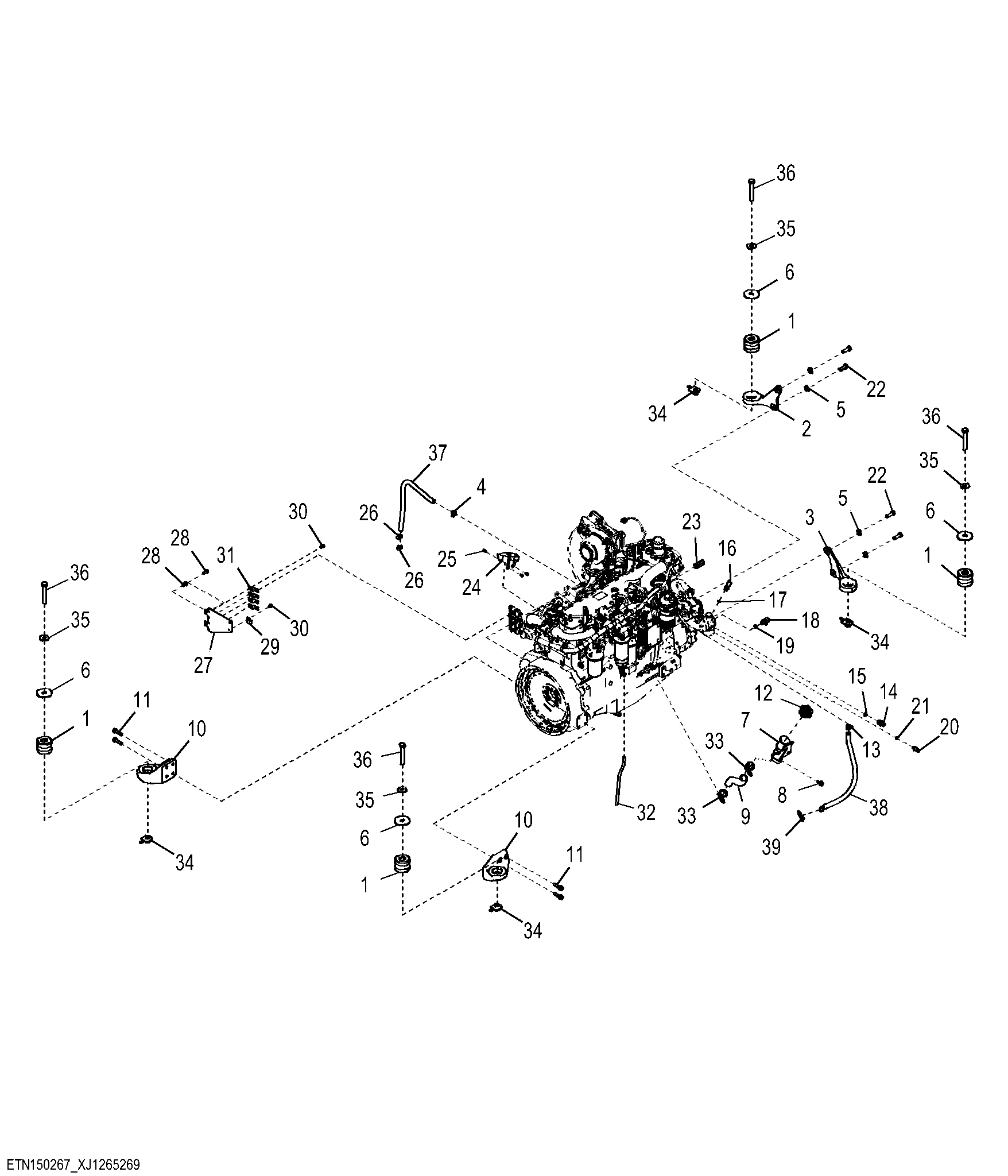

Engine Mounting Parts (Engine 6068DW501-DZ114141)
