Beacon Bracket with Strobe Light Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

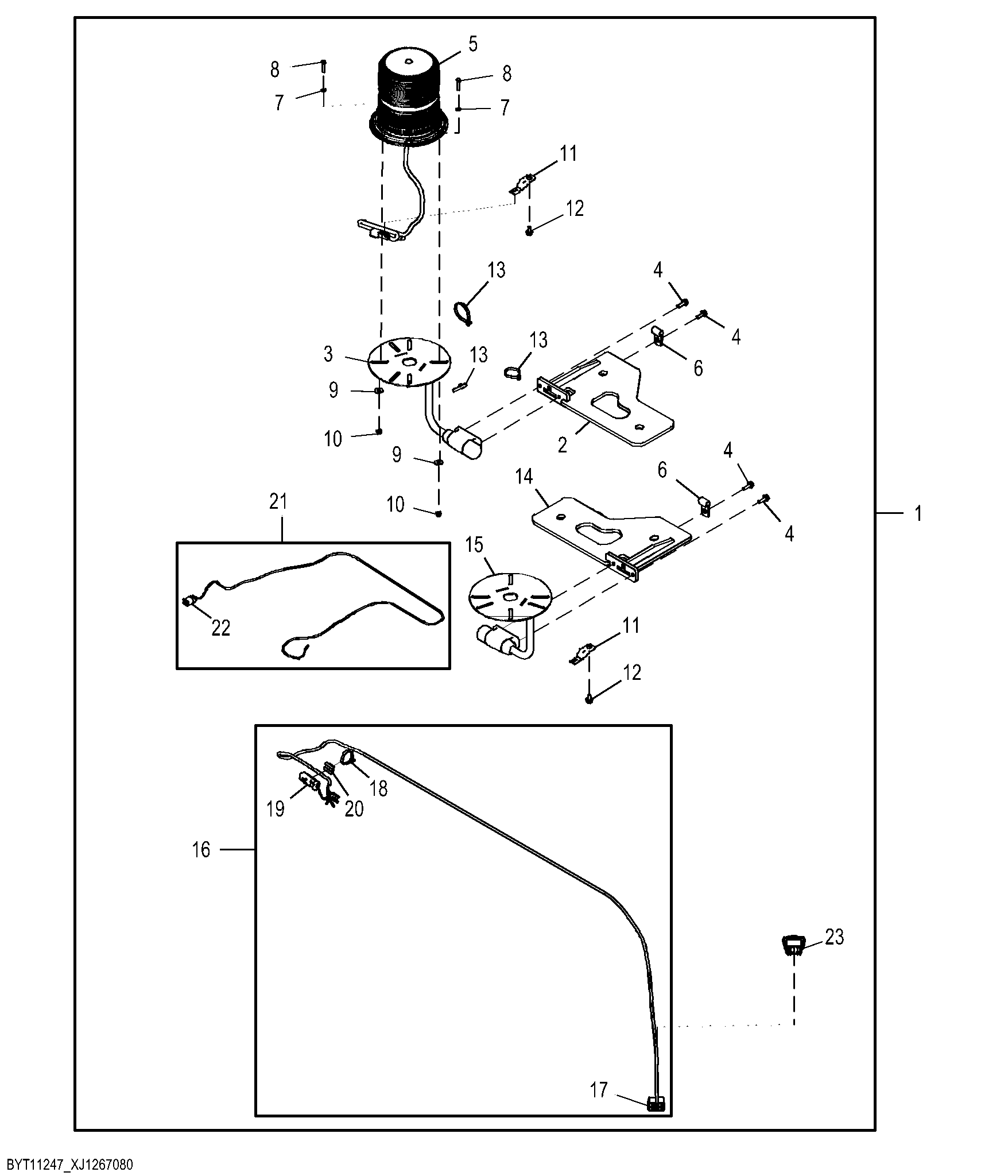

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11247	1	Light Kit	WHOLE GOODS
2	AT490682	1	Bracket	LH
3	AT490191	1	Bracket	LH, Beacon Arm
4	19M9404	4	Screw	M6 X 20
5	AT435890	1	Strobe Light	12-24 Volt
6	T28862	2	Clamp	-
7	24M7087	3	Washer	5.500 X 10 X 1 mm
8	19M7502	3	Cap Screw	M5 X 25
9	24M7139	3	Washer	6.400 X 18 X 1.600 mm
10	14M7568	3	Lock Nut	M5
11	57M8736	2	Elec. Connector Accessory	-
12	19M9830	2	Screw	M6 X 12
13	R44302	20	Tie Band	-
14	AT490691	1	Bracket	RH
15	AT490192	1	Bracket	RH, Beacon Arm
16	AT509772	1	Wiring Harness	Dual Becon Wiring Harness, INCLUDES R78065
16	R78065	3	Elec. Connector Terminal	Roof to Load Center Harness, X10A
17	57M10961	1	Elec. Connector Housing	Beacon Switch, S35
17	57M7880	8	Elec. Connector Terminal	-
18	R44302	1	Tie Band	-
19	57M9731	1	Elec. Connector Housing	Cab Inline
19	R78066	2	Elec. Connector Terminal	-
20	T380249	1	Elec. Connector Accessory	-
21	AT510455	1	Wiring Harness	Beacon Second Wiring Harness, INCLUDES R78066
21	R78066	3	Elec. Connector Terminal	Roof to Load Center Harness, X10A
22	R78065	1	Elec. Connector Terminal	Rotary Beacon Light LH, E15A_1
23	AT376685	1	Toggle/Rocker Switch	Dual Beacon Switch

Beacon Bracket with Strobe Light Kit
