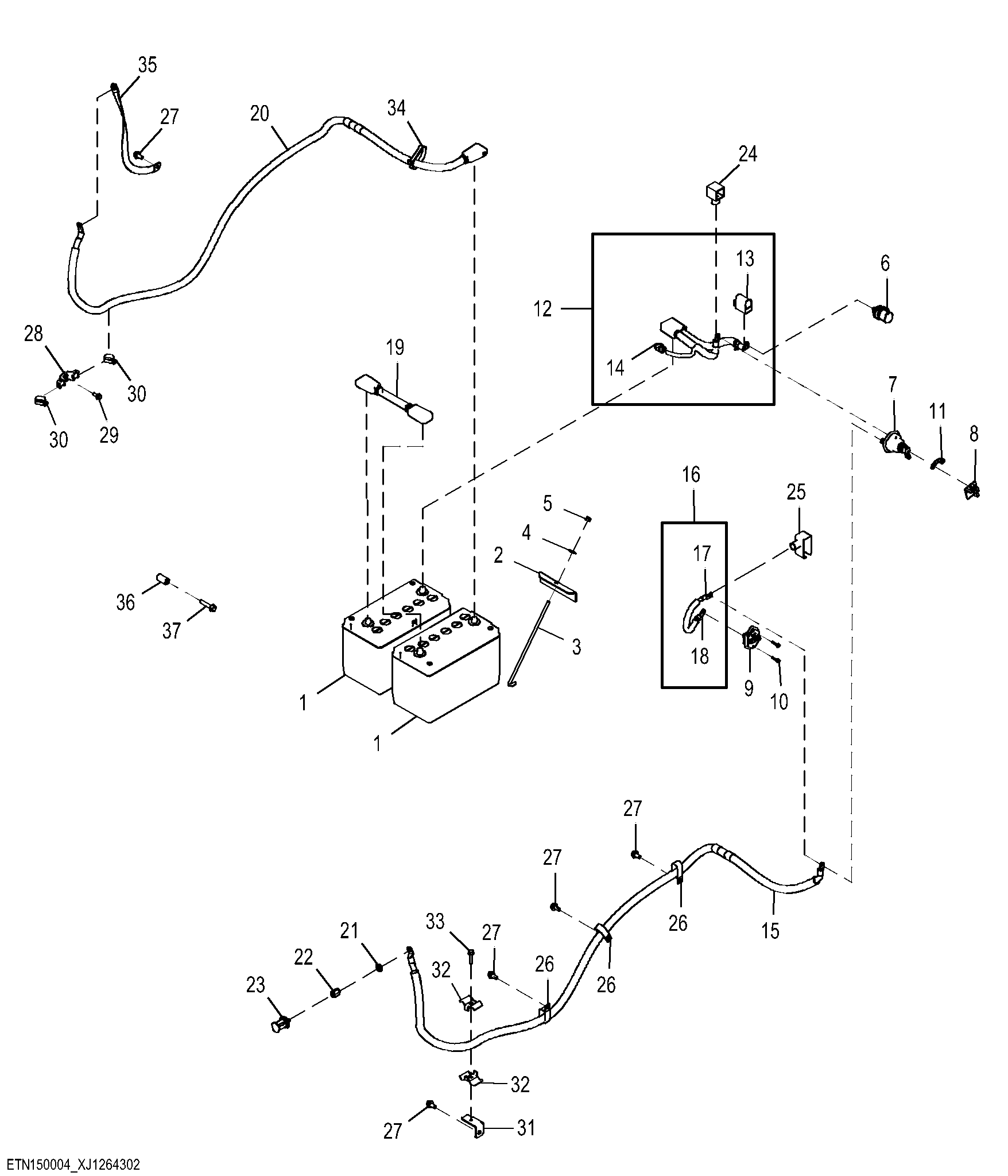

Batteries And Battery Booster Cables ( - 15417)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY25879	2	Dry Charged Battery	950 CCA
1	TY25879B	2	Wet Charged Battery	950 CCA, SUB FOR TY6128
2	T366267	1	Angle	-
3	T315647	1	Hook Bolt	-
4	24M7298	1	Washer	8.400 X 25 X 2 mm
5	14M7396	1	Lock Nut	M8
6	AN205832	1	Elec. Connector Terminal	-
7	AT41188	1	Switch	Battery Disconnect
8	AT414316	1	Handle	-
9	F125640	1	Circuit Breaker	120 A Circuit Breaker
10	19M9197	2	Screw	M5 X 25
11	T268456	1	Label	-
12	AT531340	1	Battery Cable	Positive Battery Cable, SUB FOR AT490153
13	T417665	1	Cover	SUB FOR T384816
14	57M9726	1	Elec. Connector Housing	To JD Link, X4B
15	AT490154	1	Battery Cable	Positive Battery Cable
16	AT492400	1	Battery Cable	Positive Switch To Breaker
17	57M10935	1	Elec. Connector Terminal	-
18	57M10936	1	Elec. Connector Terminal	-
19	AT490502	1	Battery Cable	Battery To Battery
20	AT531339	1	Battery Cable	Negative Battery Cable, SUB FOR AT490240
21	24M7240	1	Washer	13 X 25 X 3 mm
22	E64052	1	Nut	-
23	T134104	1	Cover	-
24	T129165	1	Boot	-
25	T353139	1	Cover	-
26	AH77869	3	Clip	-
27	19M7784	5	Screw	M10 X 20
28	AT360806	1	Hose Clamp	-
29	19M7866	1	Screw	M8 X 20
30	H224073	2	Tie Band	-
31	AT465414	1	Bracket	-
32	KV22609	2	Clamp	-
33	19M7798	1	Screw	M8 X 40
34	H224073	1	Tie Band	-
35	R36545	1	Ground Cable	-
36	T153802	1	Spacer	-
37	19M7806	1	Screw	M10 X 50

Batteries And Battery Booster Cables ( - 15417)

Нет текстового описания
