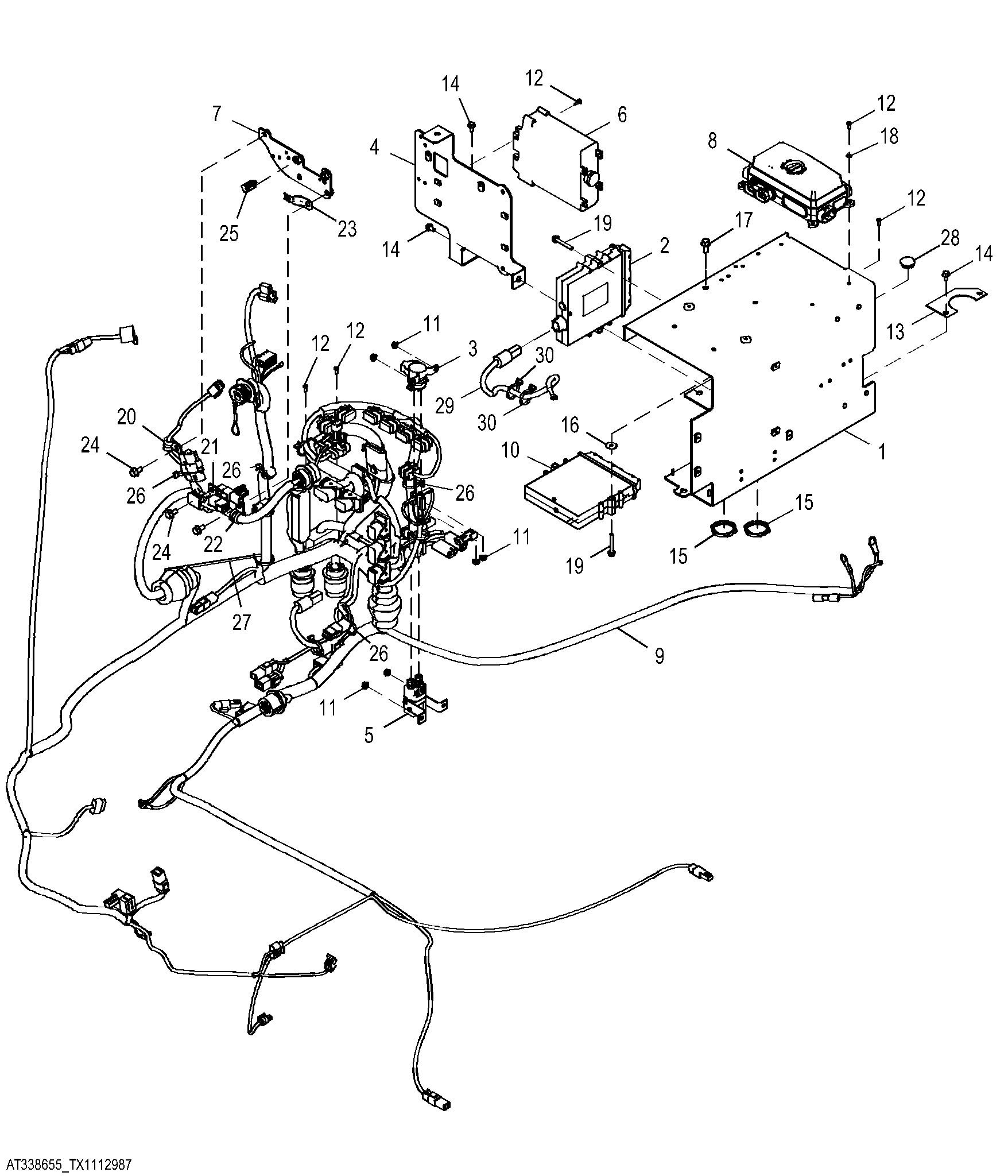

Load Center Wiring Harness and Hardware

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT408898	1	Bracket	SUB FOR AT367734
1	AT371929	1	Housing	NLA; ORDER AT408898
2	AT404865	1	Vehicle Controller	Flex Load Controller (FLC), SUB FOR AT346252
3	AT145341	1	Relay	24 V, 100 A, Start Relay
4	AT340418	1	Bracket	NLA; ORDER AT371934
4	AT371934	1	Bracket	-
5	AT412661	1	Relay	24 V, 100 A
6	AT340609	1	Transmission Controller	-
7	AT352897	1	Bracket	-
8	57M7689	10	Fuse	10 A
8	57M8640	5	Diode	3 A
8	57M8623	2	Fuse	25 A
8	57M7691	3	Fuse	20 A
8	57M7690	5	Fuse	15 A
8	57M7688	21	Fuse	5 A
8	AT353045	1	Vehicle Controller	Vehicle Electrical Center (VEC)
9	AT366946	1	Wiring Harness	Load Center Harness Components on Seperate Page
10	RE526588	1	Engine Controller	ECU for T3 Engine
11	14M7303	6	Flange Nut	M6
12	21M7250	12	Screw	M4 X 12
13	T181604	1	Plate	-
14	19M7774	4	Screw	M6 X 12
15	57M8035	2	Nut	-
16	24M7100	2	Washer	6.600 X 22 X 2 mm
17	19M7866	1	Screw	M8 X 20
18	24M7027	4	Washer	5.300 X 10 X 1 mm
19	19M7834	4	Screw	M6 X 45
20	T75276	1	Clamp	-
21	T102934	1	Clamp	-
22	T74416	1	Clamp	-
23	57M8736	1	Elec. Connector Accessory	-
24	19M7865	3	Screw	M8 X 16
25	57M9716	1	Elec. Connector Housing	-
26	R44302	9	Tie Band	-
27	H77698	1	Tie Band	-
28	T152230	1	Plug	-
29	AT341748	1	Wiring Harness	FLC2 Power Cable
30	R44302	2	Tie Band	-

Load Center Wiring Harness and Hardware
