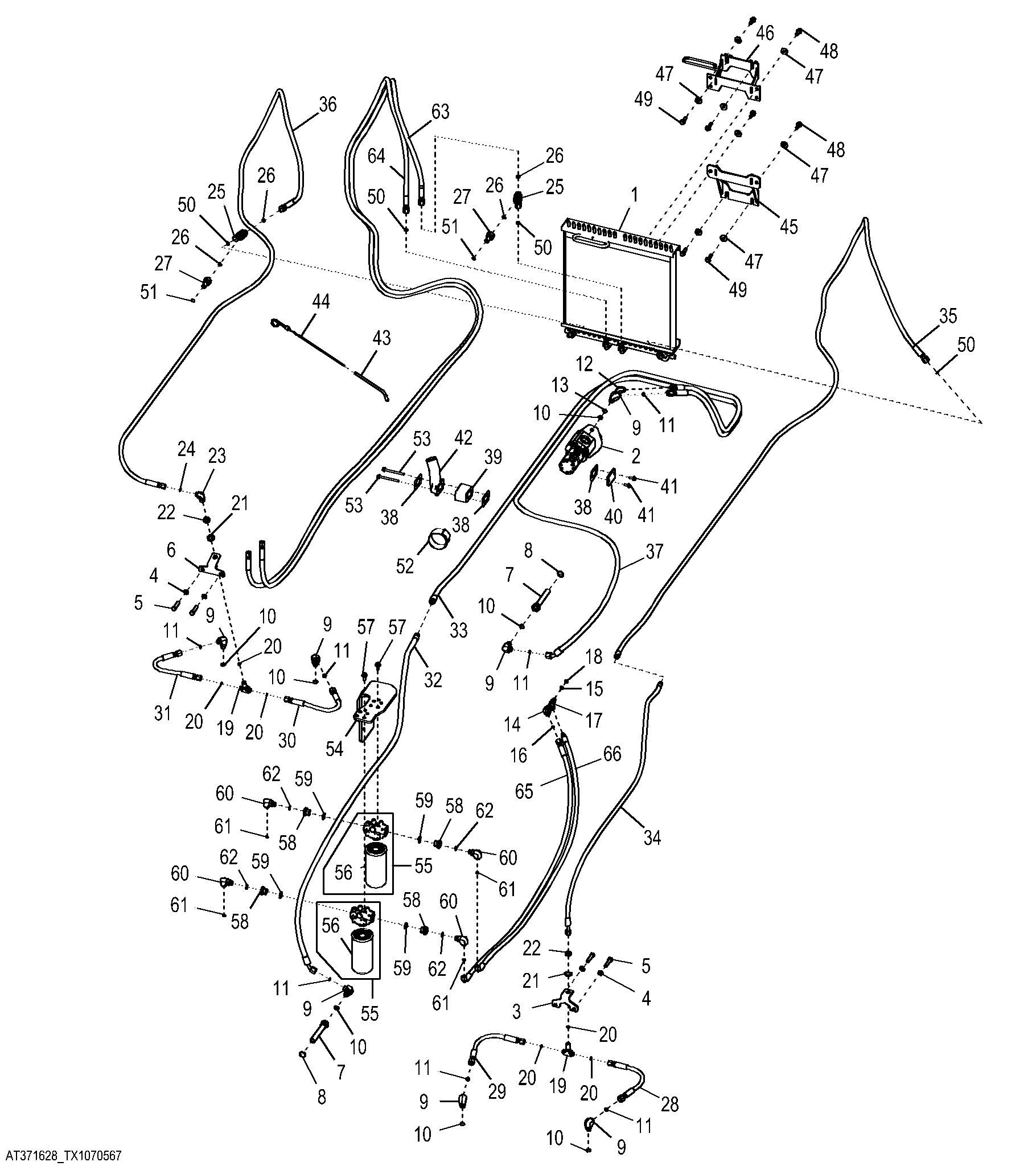

Axle Cooling System w/ Secondary Steering (626438 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT330592	1	Oil Cooler	-
2	-	1	Part 2	Furnish Components
2	AT346051	1	Oil Pump	Axle Oil Circulation
2	AT318789	1	Seal Kit	-
2	AT324289	1	Oil Pump	Fan Drive
3	T213827	1	Plate	-
4	R47172	4	Washer	-
5	19M7361	4	Cap Screw	M12 X 50
6	T234564	1	Plate	-
7	AT220925	1	Oil Filter	-
7	AT386450	1	Oil Filter	-
8	U12547	1	O-Ring	-
9	38H1005	1	Elbow Fitting	-
10	R26375	1	O-Ring	-
11	T77857	1	O-Ring	-
12	62H1012	1	Adapter Fitting	INCLUDES R26375
13	R26375	1	O-Ring	-
14	38H1004	1	Elbow Fitting	-
15	R26448	1	O-Ring	-
16	T77613	1	O-Ring	-
17	62H1011	1	Adapter Fitting	INCLUDES R26448
18	R26448	1	O-Ring	-
19	38H1291	1	Tee Fitting	-
20	T77613	3	O-Ring	-
21	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
22	T81029	2	Nut	-
23	38H1094	1	Elbow Fitting	-
24	T77613	1	O-Ring	-
25	38H1031	1	Tee Fitting	-
26	T77857	2	O-Ring	-
27	AT312932	2	Fitting	-
28	AT335179	1	Hydraulic Hose	Fabricate
29	AT335179	1	Hydraulic Hose	Fabricate
30	AT335179	1	Hydraulic Hose	Fabricate
31	AT335179	1	Hydraulic Hose	Fabricate
32	AT332605	1	Hydraulic Hose	-
33	AT333062	1	Hydraulic Hose	Fabricate
34	AT333055	1	Hydraulic Hose	Fabricate
35	AT333057	1	Hydraulic Hose	Fabricate
36	AT334170	1	Hydraulic Hose	Fabricate
37	AT371083	1	Hydraulic Hose	Fabricate
38	R136495	3	Gasket	-
39	R136514	1	Spacer	-
40	R116296	1	Cover	-
41	19M7866	2	Screw	M8 X 20
42	R517353	1	Filler Neck	-
43	T225866	1	Dipstick Tube	-
44	AT329269	1	Dipstick	-
45	AT330606	1	Bracket	Lower
46	AT330678	1	Bracket	Upper
47	24M7296	8	Washer	10.500 X 30 X 2.500 mm
48	19M7786	4	Screw	M10 X 30
49	19M7835	4	Screw	M10 X 35
50	T77857	4	O-Ring	-
51	T218003	2	Label	Axle/Gearbox Oil
52	T238029	1	Adjusting Strap	-
53	R504604	2	Cap Screw	-
54	AT380104	1	Bracket	-
55	AT371099	2	Filter	-
56	AT367635	2	Filter Element	-
57	19M7785	8	Screw	M10 X 25
58	R70921	4	Adapter Fitting	-
59	U12547	4	O-Ring	-
60	38H1010	1	Elbow Fitting	-
61	T77613	1	O-Ring	-
62	R26375	1	O-Ring	-
63	AT369202	1	Hydraulic Hose	Front Fabricate
64	AT369203	1	Hydraulic Hose	Rear Fabricate
65	AT409828	1	Hydraulic Hose	Front Fabricate, SUB FOR AT380666
66	AT409827	1	Hydraulic Hose	Rear Fabricate, SUB FOR AT380667

Axle Cooling System w/ Secondary Steering (626438 - )
