Открытый узел

Two Lever To Three Lever Pilot Controller Conversion Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H327	2	Lock Washer	3/4"
2	19M7805	1	Screw	M10 X 45
3	38H1418	2	Fitting	-
4	38H1160	2	Adapter Fitting	-
5	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	38H1163	2	Adapter Fitting	-
8	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
10	38H1164	1	Adapter Fitting	-
11	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
12	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
13	38H1276	2	Adapter Fitting	-
14	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
15	62H1001	2	Adapter Fitting	SUB FOR 63H1001
16	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	AT105438	4	Rod	Three Spool Stud Assembly Not Illustrated
18	AT191285	2	Hydraulic Hose	30.1752" X 1295 mm (51") X 30.1752"
19	AT300154	1	Hydr./Pilot Control Valve	3-Lever
20	AT314046	1	Valve	Auxiliary Valve Section Components On Separate Page
21	AT314959	1	Oil Line	-
22	AT314960	1	Oil Line	-
23	AT336507	2	Hydraulic Hose	Fabricate
24	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
25	AT340580	2	Hydraulic Hose	17.4752" X 2133 mm (84") X 17.4752", Fabricate
26	AT341526	1	Plate	-
27	AT349341	1	Hydraulic Hose	30.1752" X 927 mm (36-1/2") X 36.5252"
27	AT367549	1	Hydraulic Hose	36.5252" X 1219 mm (48") X 36.5252", Fabricate
28	T160549	1	Clamp	-
29	T174275	2	Lock Washer	30.950 mm (1-7/32")
30	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
31	T78707	2	Nut	30.175 mm (1-3/16")
32	T81029	2	Nut	17.475 mm (11/16")
50	AT337700	1	Field Installation Kit	Whole Goods
50	AT371362	1	Control Kit	Whole Goods

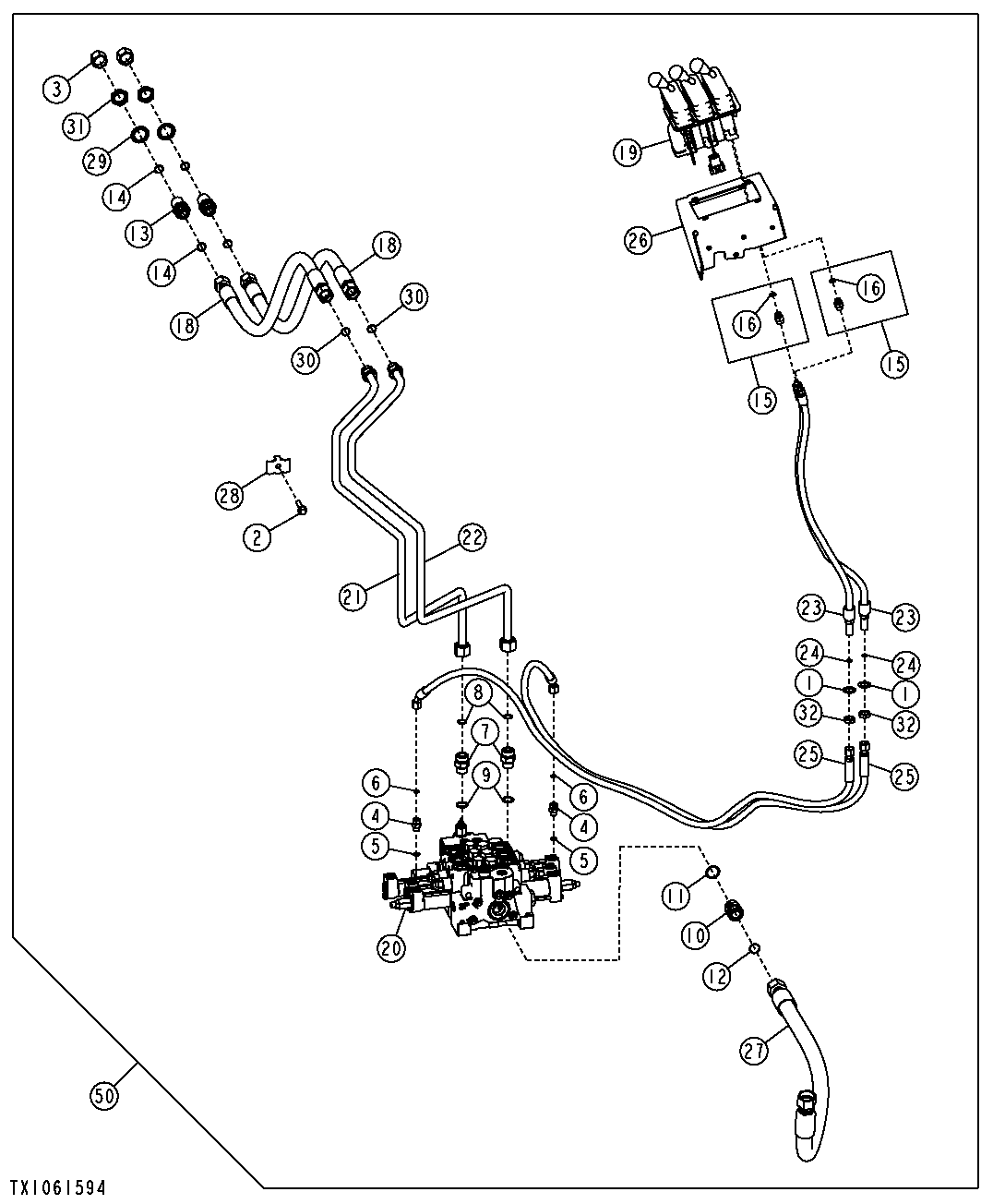

Two Lever To Three Lever Pilot Controller Conversion Kit

Нет текстового описания
