Three Lever To Four Lever Pilot Controller Conversion Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H327	2	Lock Washer	3/4"
2	19M7805	1	Screw	M10 X 45
3	38H1418	2	Fitting	-
4	38H1160	2	Adapter Fitting	-
5	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	38H1163	2	Adapter Fitting	-
8	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
10	38H1276	2	Adapter Fitting	-
11	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
12	62H1001	2	Adapter Fitting	SUB FOR 63H1001
13	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	AT191285	2	Hydraulic Hose	30.1752" X 1295 mm (51") X 30.1752"
15	AT225432	1	Hydr./Pilot Control Valve	4-Lever
16	AT314026	4	Rod	Four Spool Stud Assembly Not Illustrated
17	AT314046	1	Valve	Auxiliary Valve Section Components On Separate Page
18	AT314961	1	Oil Line	-
19	AT314962	1	Oil Line	-
20	AT336507	2	Hydraulic Hose	Fabricate
21	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
22	AT340580	2	Hydraulic Hose	17.4752" X 2133 mm (84") X 17.4752", Fabricate
23	AT341524	1	Plate	-
24	AT349459	1	Hydraulic Hose	30.1752" X 889 mm (35") X 30.1752"
24	AT369295	1	Hydraulic Hose	Fabricate
25	N189220	2	Tie Band	-
26	T160549	1	Clamp	-
27	T174275	2	Lock Washer	30.950 mm (1-7/32")
28	T228348	1	Cover	-
29	T238029	2	Adjusting Strap	-
30	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
31	T78707	2	Nut	30.175 mm (1-3/16")
32	T81029	2	Nut	17.475 mm (11/16")
50	AT364935	1	Field Installation Kit	Whole Goods
50	AT371364	1	Hose Kit	Whole Goods

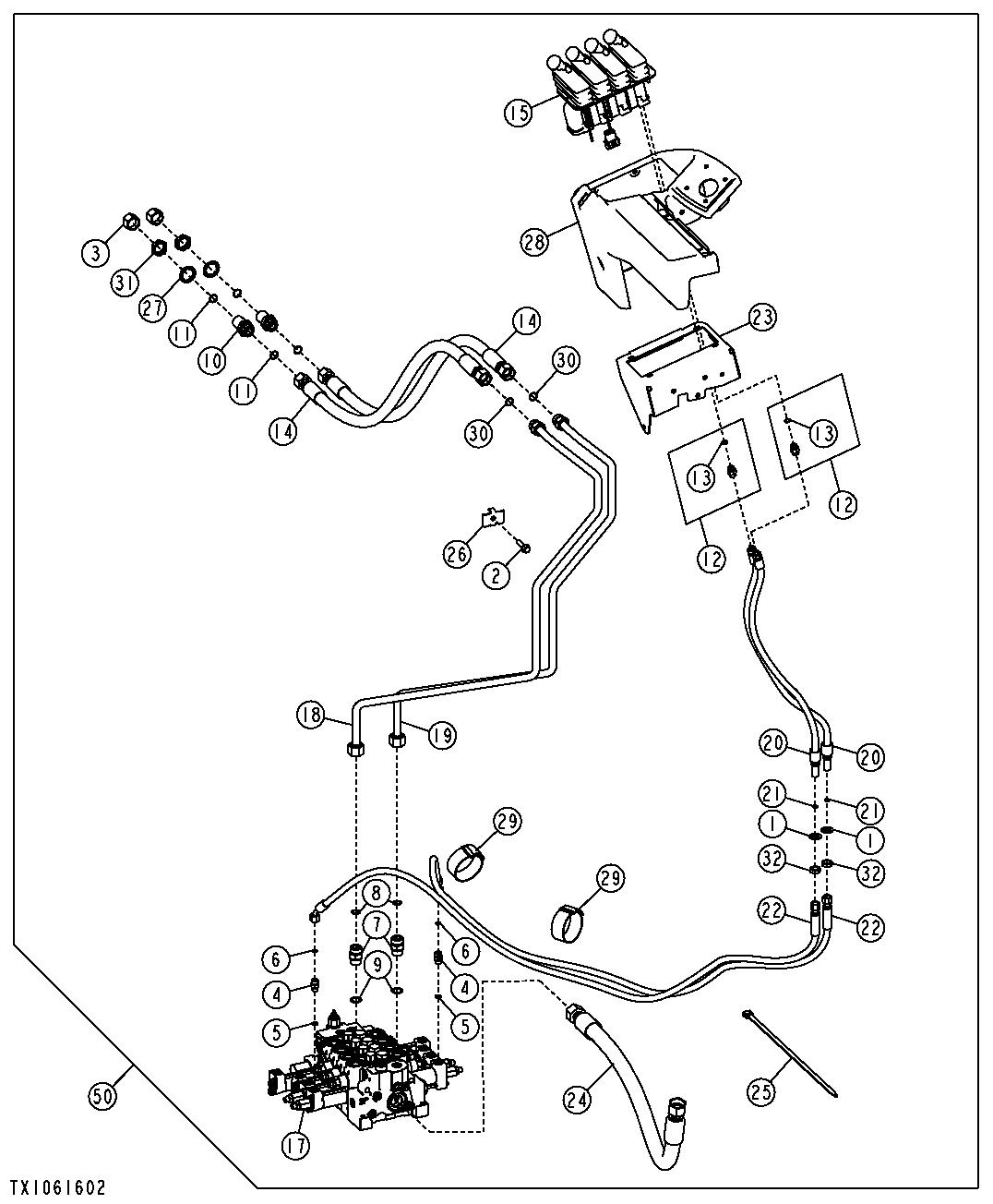

Three Lever To Four Lever Pilot Controller Conversion Kit

Нет текстового описания
