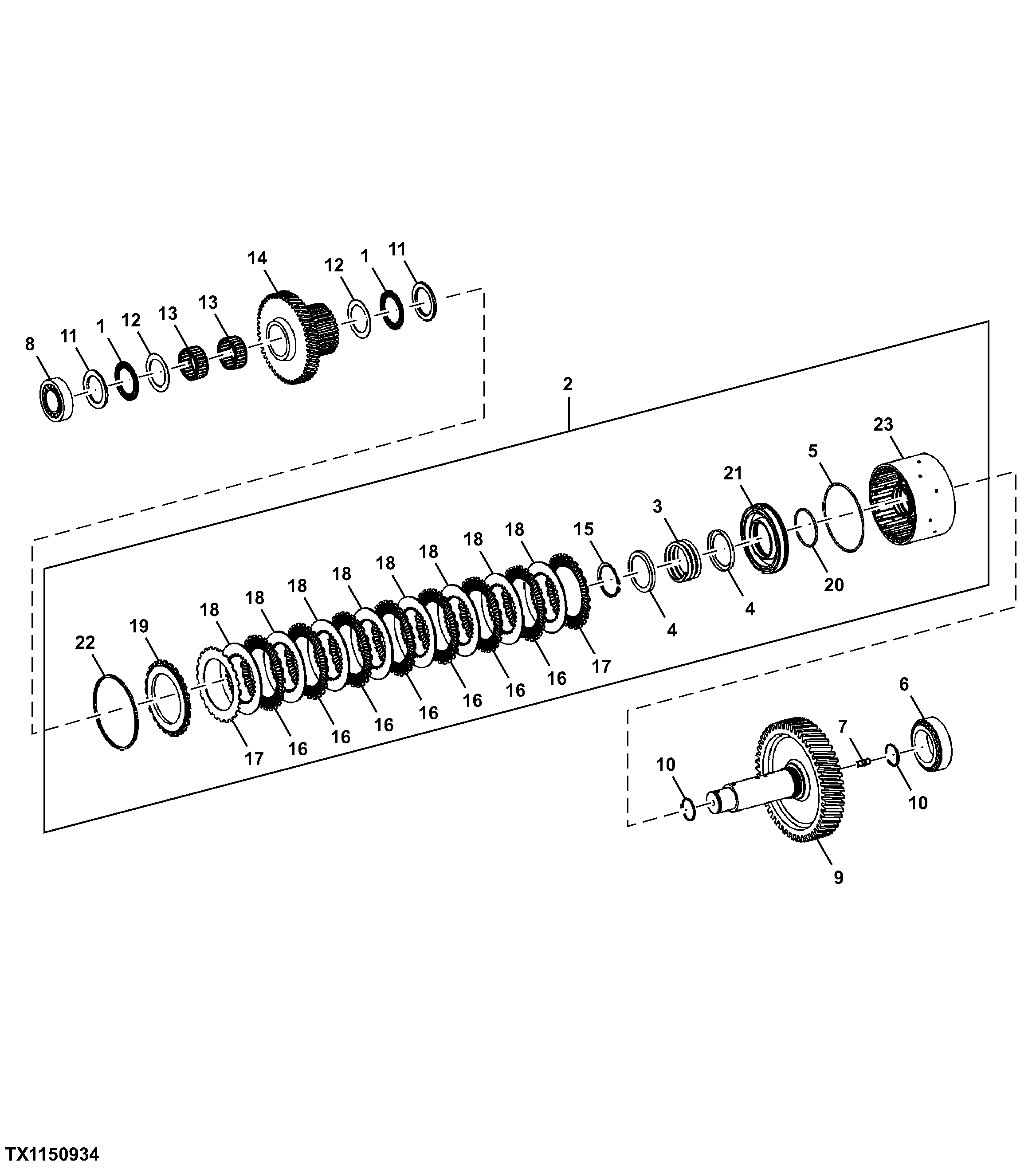

Third Gear Clutch Assembly 4-Speed Transmission

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT179498	2	Needle Bearing	-
2	AT357741	1	Clutch	-
3	T116486	1	Compression Spring	-
4	T116579	2	Ring	-
5	T170712	1	O-Ring	-
6	T310103	1	Bearing	Important - High Tolerance Bearing Required in this Location. Use ONLY John Deere Parts Sourced Bearings., SUB FOR T171126
7	T171153	1	Stud	-
8	T294935	1	Bearing	Important - High Tolerance Bearing Required in this Location. Use ONLY John Deere Parts Sourced Bearings., SUB FOR T171156
9	T310109	1	Pinion Shaft	SUB FOR T171212
10	T172115	2	Piston Ring	-
11	T172136	2	Disk	-
12	T172138	2	Thrust Washer	-
13	T172139	2	Needle Bearing	-
14	T172275	1	Gear	-
15	T172299	1	Snap Ring	-
16	T173640	7	Disk With Outer Spline	-
17	T173641	2	Disk With Outer Spline	-
18	T173642	8	Disk With Inner Spline	-
19	T294877	1	Solid Shim	SUB FOR T173643
20	T173965	1	O-Ring	-
21	T178280	1	Piston	-
22	T153941	1	Snap Ring	2.4 mm
22	T181878	1	Snap Ring	2.7 mm
22	T181879	1	Snap Ring	3.0 mm
22	T181880	1	Snap Ring	3.3 mm
22	T172265	1	Snap Ring	3.6 mm
22	T172269	1	Snap Ring	4.2 mm
23	T244799	1	Clutch	-

Third Gear Clutch Assembly 4-Speed Transmission

Нет текстового описания
