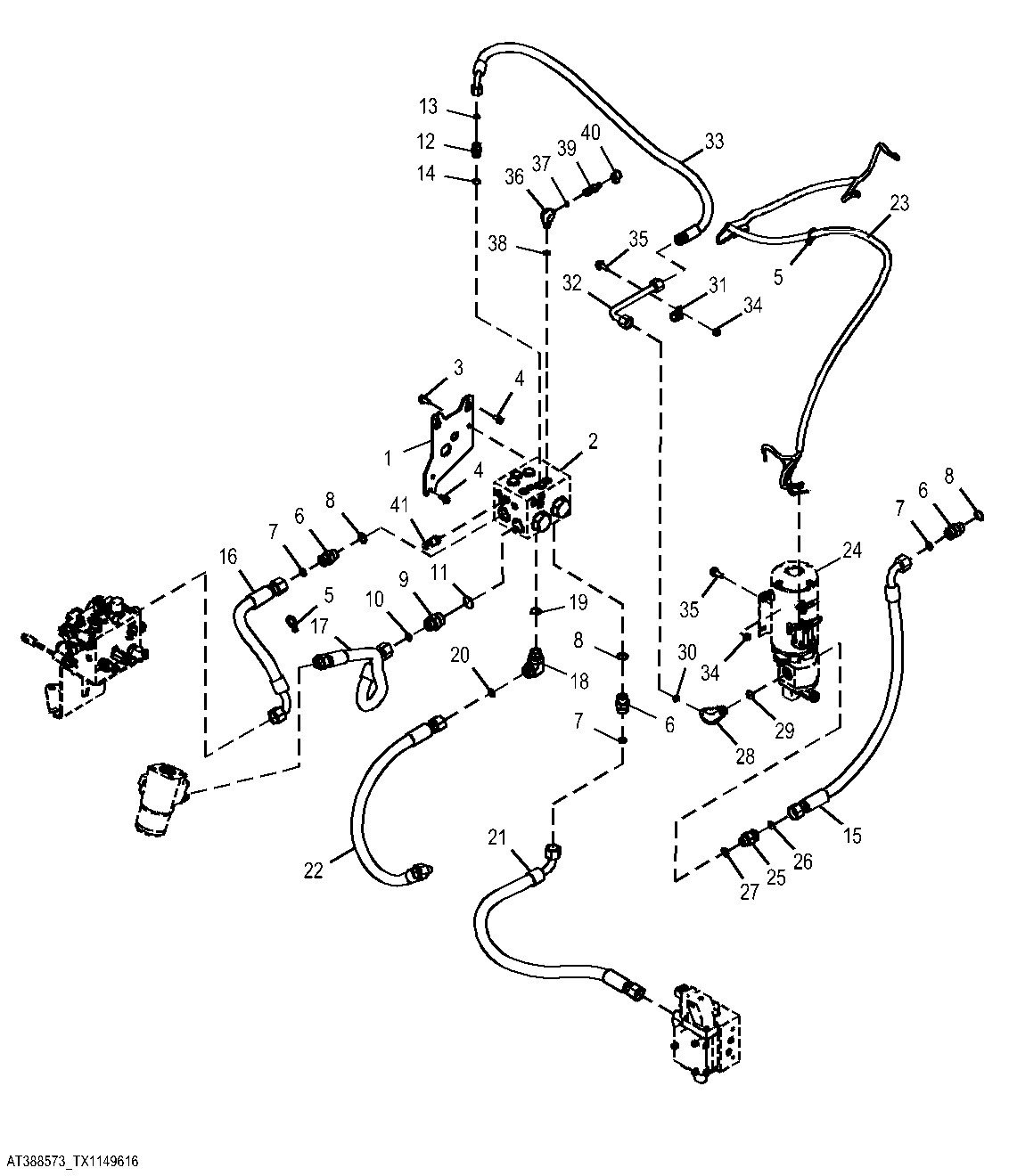

Secondary Steering System for Joystick Steering (654411 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T275106	1	Plate	-
2	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page
3	19M7784	2	Screw	M10 X 20
4	19M7866	3	Screw	M8 X 20
5	R44302	2	Tie Band	-
6	38H1163	3	Adapter Fitting	-
7	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
9	38H1194	1	Adapter Fitting	-
10	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
11	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
12	38H1161	1	Adapter Fitting	-
13	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
14	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
15	AT346034	1	Hydraulic Hose	-
16	AT345343	1	Hydraulic Hose	Fabricate
17	AT354871	1	Hydraulic Hose	Fabricate
18	38H1007	1	Elbow Fitting	-
19	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
20	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
21	AT344998	1	Hydraulic Hose	Fabricate
22	AT349514	1	Hydraulic Hose	Fabricate
23	AT371365	1	Wiring Harness	Secondary Steering Harness
24	AT210093	1	Solenoid	-
24	AT210094	1	Motor	-
24	AT390168	1	Pump	-
24	AT390169	1	Pressure Relief Valve	-
24	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
25	38H1193	1	Adapter Fitting	-
26	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
27	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
28	38H1006	1	Elbow Fitting	-
29	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
30	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
31	T76252	1	Clamp	-
32	AT409040	1	Oil Tube	-
33	AT409051	1	Hydraulic Hose	-
34	14M7274	5	Nut	M10
35	19M7785	5	Screw	M10 X 25
36	38H1009	1	Elbow Fitting	-
37	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
38	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
39	RE60700	1	Diagnostic Coupling	-
40	R77175	1	Cover	-
41	AT442924	1	Pressure Sensor	Pressure Sensor, SUB FOR AT358048

Secondary Steering System for Joystick Steering (654411 - )

Нет текстового описания
