Secondary Steering System for Joystick Steering ( - 654410)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T275106	1	Plate	-
2	AT420496	1	Manifold	Secondary Steering Valve Components On Separate Page, NLA, SUB AT438550
2	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page, SUB FOR AT420496 AND AT380627
3	19M7784	2	Screw	M10 X 20
4	19M7866	3	Screw	M8 X 20
5	R44302	2	Tie Band	-
6	38H1030	2	Tee Fitting	-
7	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	38H1004	1	Elbow Fitting	-
9	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	38H1163	3	Adapter Fitting	-
12	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1194	1	Adapter Fitting	-
15	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
16	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
17	38H1161	1	Adapter Fitting	-
18	T77857	1	O-Ring	-
19	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
20	38H1171	1	Adapter Fitting	-
21	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
22	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
23	AT354832	1	Hydraulic Hose	Fabricate
24	AT354069	1	Hydraulic Hose	Fabricate
25	AT346034	1	Hydraulic Hose	-
26	AT345343	1	Hydraulic Hose	Fabricate
27	AT354871	1	Hydraulic Hose	Fabricate
28	AT383153	1	Hydraulic Hose	Fabricate, NLA
29	38H1007	1	Elbow Fitting	-
30	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
31	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
32	38H1097	1	Elbow Fitting	-
33	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
34	AT344998	1	Hydraulic Hose	Fabricate
35	AT349514	1	Hydraulic Hose	Fabricate
36	AT371365	1	Wiring Harness	Secondary Steering Harness
37	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
37	AT210093	1	Solenoid	-
37	AT210094	1	Motor	-
37	AT390168	1	Pump	-
37	AT390169	1	Pressure Relief Valve	-
38	38H1193	1	Adapter Fitting	-
39	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
40	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
41	38H1006	1	Elbow Fitting	-
42	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
43	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
44	T76252	1	Clamp	-
45	AT409040	1	Oil Tube	-
46	AT409051	1	Hydraulic Hose	-
47	14M7274	5	Nut	M10
48	19M7785	5	Screw	M10 X 25
49	38H1009	1	Elbow Fitting	-
50	T77814	1	O-Ring	-
51	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
52	RE60700	1	Diagnostic Coupling	-
53	R77175	1	Cover	-
54	AT358048	1	Transducer	Pressure Sensor

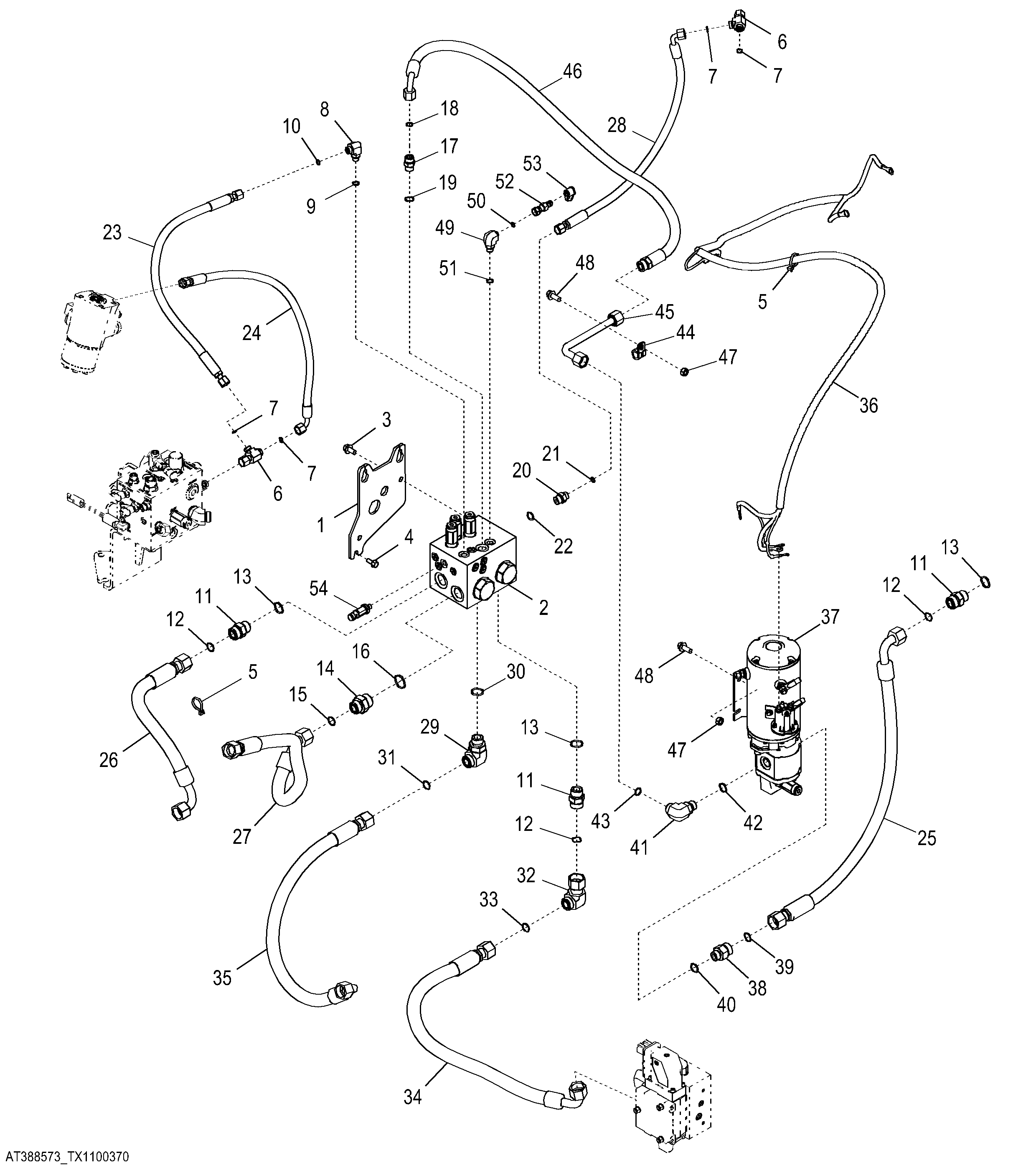

Secondary Steering System for Joystick Steering ( - 654410)
