Открытый узел

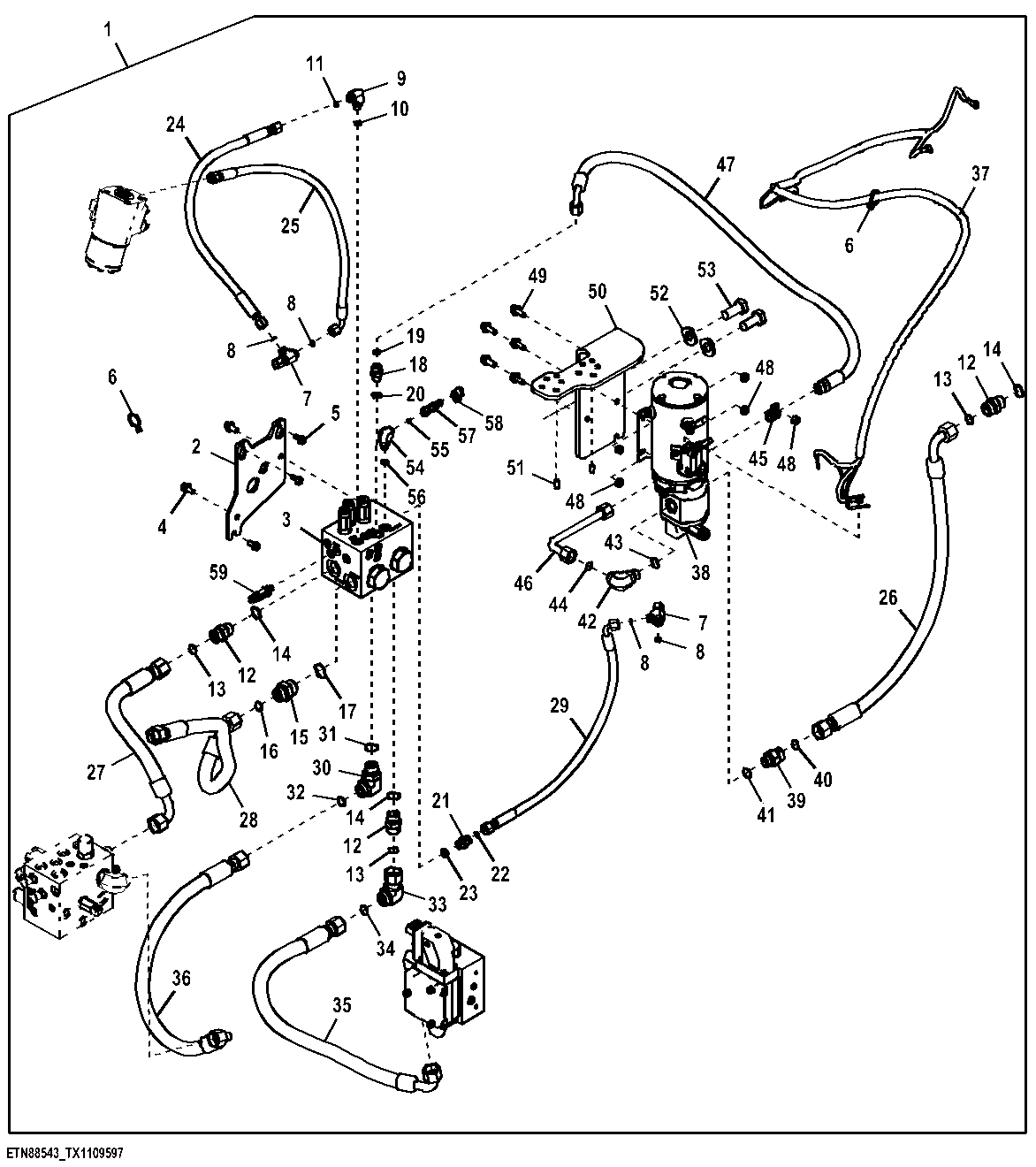

Secondary Steering System Conversion Kit ( - 654410)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT439847	1	Steering System	Whole Goods, SUB FOR ETN88543
1	ETN88543	1	Steering System	Whole Goods, NLA, SUB AT439847
2	T275106	1	Plate	-
3	AT420496	1	Manifold	Secondary Steering Valve Components On Separate Page, NLA, SUB AT438550
3	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page, SUB FOR AT420496 AND AT380627
4	19M7784	2	Screw	M10 X 20
5	19M7866	3	Screw	M8 X 20
6	R44302	2	Tie Band	-
7	38H1030	2	Tee Fitting	-
8	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	38H1004	1	Elbow Fitting	-
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H1163	3	Adapter Fitting	-
13	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
15	38H1194	1	Adapter Fitting	-
16	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
18	38H1161	1	Adapter Fitting	-
19	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
20	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
21	38H1171	1	Adapter Fitting	-
22	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
24	AT354832	1	Hydraulic Hose	Fabricate
25	AT354069	1	Hydraulic Hose	Fabricate
26	AT346034	1	Hydraulic Hose	-
27	AT345343	1	Hydraulic Hose	Fabricate
28	AT354871	1	Hydraulic Hose	Fabricate
29	AT383153	1	Hydraulic Hose	Fabricate
30	38H1007	1	Elbow Fitting	-
31	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
32	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
33	38H1097	1	Elbow Fitting	-
34	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
35	AT344998	1	Hydraulic Hose	Fabricate
36	AT349514	1	Hydraulic Hose	Fabricate
37	AT371365	1	Wiring Harness	Secondary Steering Harness
38	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
38	AT210093	1	Solenoid	-
38	AT210094	1	Motor	-
38	AT390168	1	Pump	-
38	AT390169	1	Pressure Relief Valve	-
39	38H1193	1	Adapter Fitting	-
40	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
41	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
42	38H1006	1	Elbow Fitting	-
43	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
44	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
45	T76252	1	Clamp	-
46	AT409040	1	Oil Tube	-
47	AT409051	1	Hydraulic Hose	-
48	14M7274	5	Nut	M10
49	19M7785	5	Screw	M10 X 25
50	T304367	1	Plate	-
51	34M7250	2	Spring Pin	10 X 20 mm
52	24M7242	2	Washer	21.400 X 42 X 5 mm
53	19M7950	2	Cap Screw	M20 X 45
54	38H1009	1	Elbow Fitting	-
55	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
56	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
57	RE60700	1	Diagnostic Coupling	-
58	R77175	1	Cover	-
59	AT358048	1	Transducer	Steering System Pressure Switch

Secondary Steering System Conversion Kit ( - 654410)

Нет текстового описания
