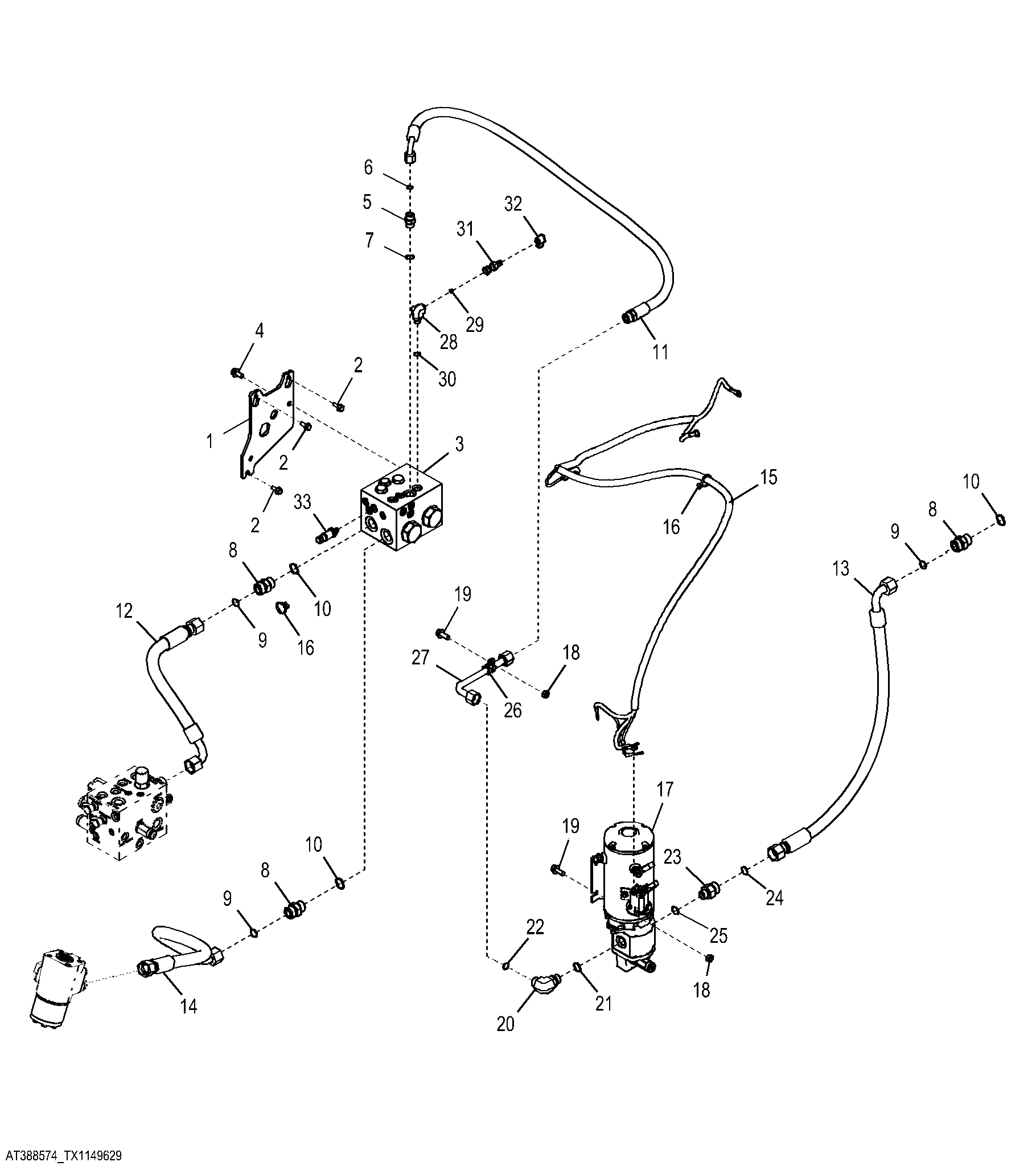

Secondary Steering System (654411 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T275106	1	Plate	-
2	19M7866	3	Screw	M8 X 20
3	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page
4	19M7784	2	Screw	M10 X 20
5	38H1161	1	Adapter Fitting	-
6	T77857	1	O-Ring	-
7	R26375	1	O-Ring	-
8	38H1163	3	Adapter Fitting	-
9	T77858	3	O-Ring	-
10	U12547	3	O-Ring	-
11	AT409051	1	Hydraulic Hose	-
12	AT345343	1	Hydraulic Hose	Fabricate
13	AT346034	1	Hydraulic Hose	-
14	AT354871	1	Hydraulic Hose	Fabricate
15	AT371365	1	Wiring Harness	Secondary Steering Harness
16	R44302	2	Tie Band	-
17	AT390169	1	Pressure Relief Valve	-
17	AT390168	1	Pump	-
17	AT210094	1	Motor	-
17	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
17	AT210093	1	Solenoid	-
18	14M7274	5	Nut	M10
19	19M7785	5	Screw	M10 X 25
20	38H1006	1	Elbow Fitting	-
21	R26906	1	O-Ring	-
22	T77932	1	O-Ring	-
23	38H1193	1	Adapter Fitting	-
24	T77858	1	O-Ring	-
25	R26906	1	O-Ring	-
26	T76252	1	Clamp	-
27	AT409040	1	Oil Tube	-
28	38H1009	1	Elbow Fitting	-
29	T77814	1	O-Ring	-
30	R26448	1	O-Ring	-
31	RE60700	1	Diagnostic Coupling	-
32	R77175	1	Cover	-
33	AT442924	1	Pressure Sensor	Pressure Sensor, SUB FOR AT358048

Secondary Steering System (654411 - )

Нет текстового описания
