Secondary Steering System ( - 654410)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

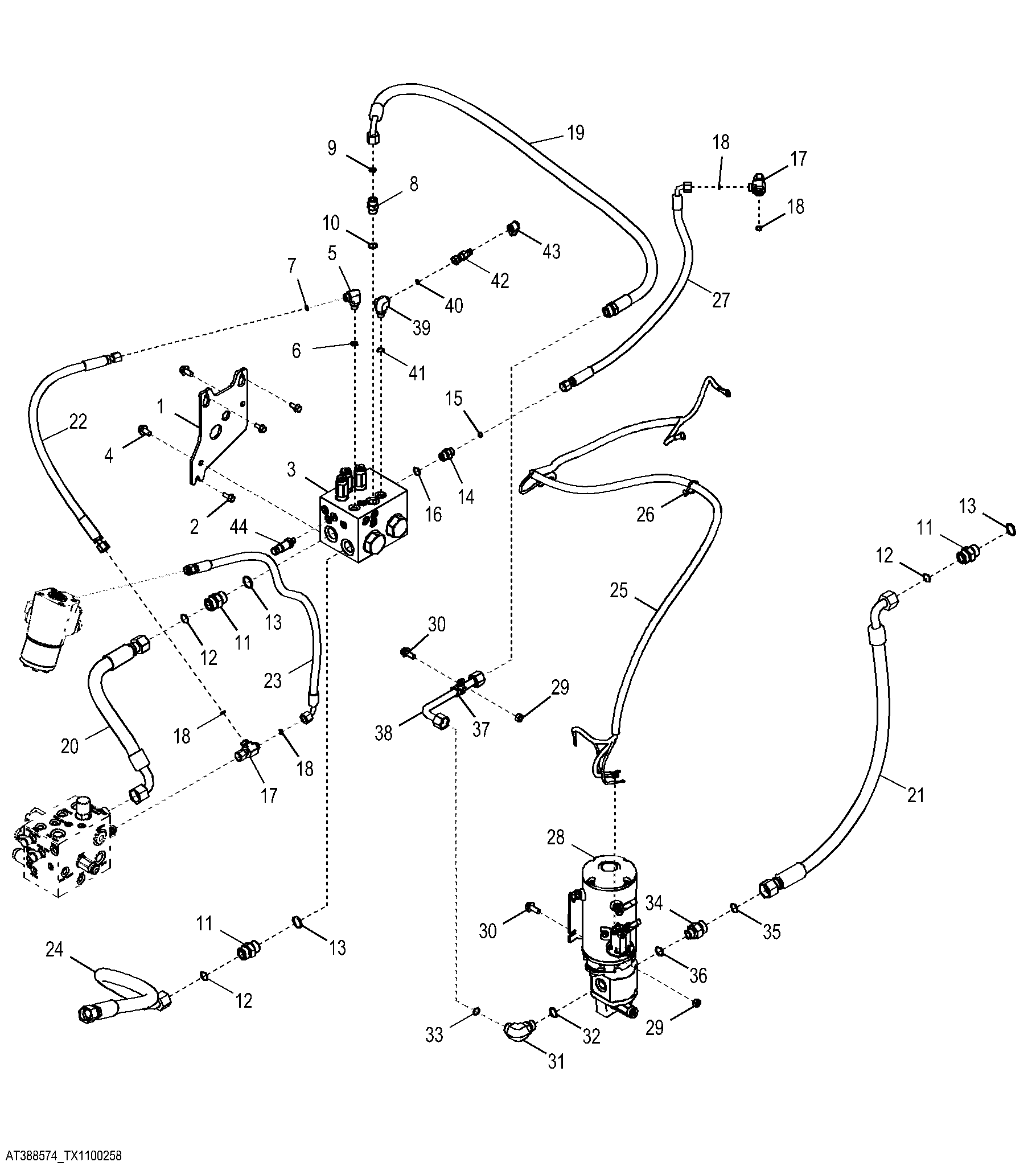

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T275106	1	Plate	-
2	19M7866	3	Screw	M8 X 20
3	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page, SUB FOR AT420496 AND AT380627
3	AT420496	1	Manifold	Secondary Steering Valve Components On Separate Page, NLA, SUB AT438550
4	19M7784	2	Screw	M10 X 20
5	38H1004	1	Elbow Fitting	-
6	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	38H1161	1	Adapter Fitting	-
9	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
11	38H1163	3	Adapter Fitting	-
12	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1171	1	Adapter Fitting	-
15	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
17	38H1030	2	Tee Fitting	-
18	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	AT409051	1	Hydraulic Hose	-
20	AT345343	1	Hydraulic Hose	Fabricate
21	AT346034	1	Hydraulic Hose	-
22	AT354832	1	Hydraulic Hose	Fabricate
23	AT354069	1	Hydraulic Hose	Fabricate
24	AT354871	1	Hydraulic Hose	Fabricate
25	AT371365	1	Wiring Harness	Secondary Steering Harness
26	R44302	1	Tie Band	-
27	AT383153	1	Hydraulic Hose	Fabricate, NLA
28	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
28	AT210093	1	Solenoid	-
28	AT210094	1	Motor	-
28	AT390168	1	Pump	-
28	AT390169	1	Pressure Relief Valve	-
29	14M7274	5	Nut	M10
30	19M7785	5	Screw	M10 X 25
31	38H1006	1	Elbow Fitting	-
32	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
33	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
34	38H1193	1	Adapter Fitting	-
35	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
36	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
37	T76252	1	Clamp	-
38	AT409040	1	Oil Tube	-
39	38H1009	1	Elbow Fitting	-
40	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
41	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
42	RE60700	1	Diagnostic Coupling	-
43	R77175	1	Cover	-
44	AT358048	1	Transducer	Pressure Sensor

Secondary Steering System ( - 654410)
