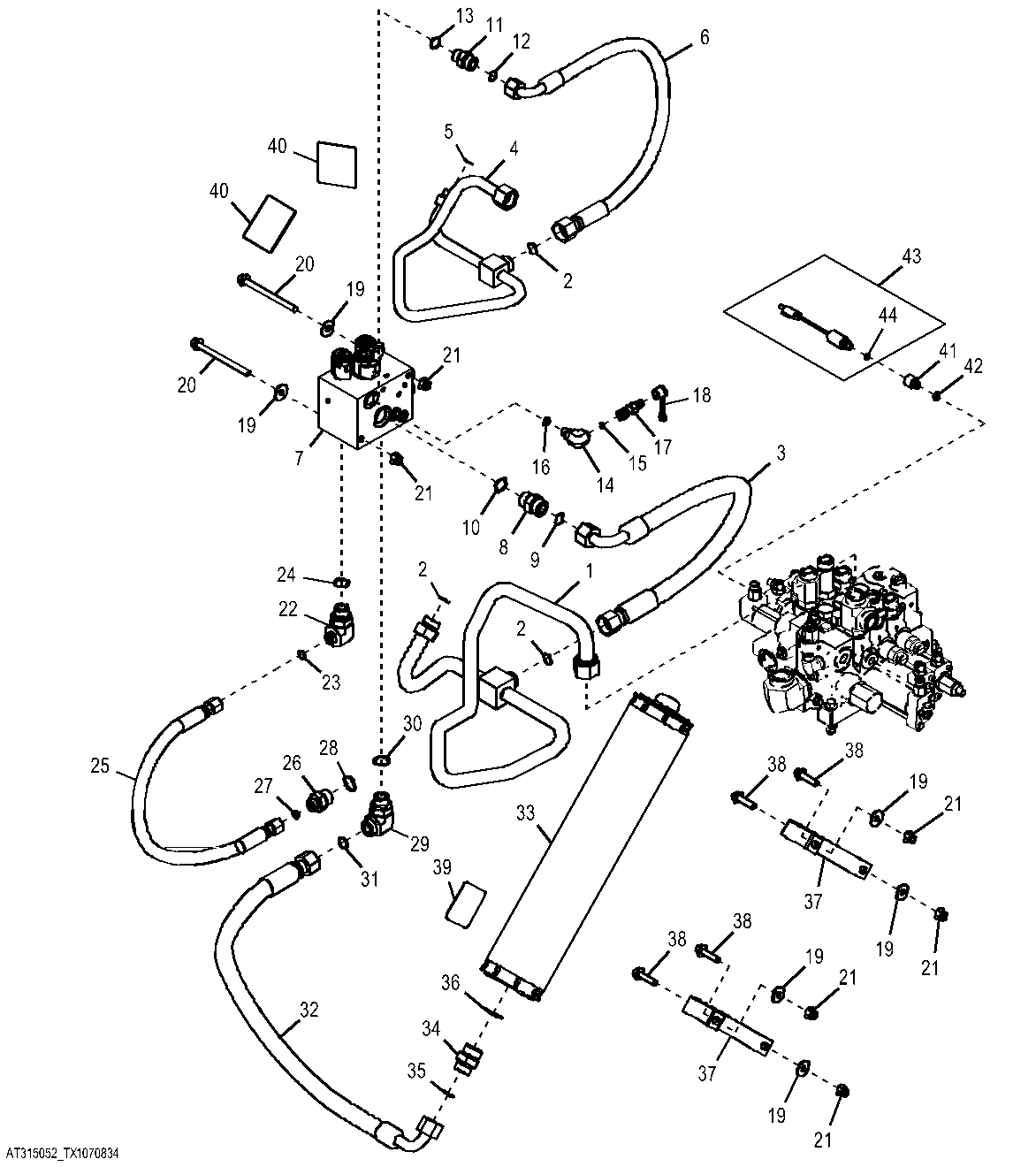

Ride Control System, Z-Bar

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT301093	1	Oil Line	-
2	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
3	AT226808	1	Hydraulic Hose	30.1752" X 850 mm (33-1/2") X 30.1752"
4	AT307661	1	Oil Line	-
5	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
6	AT225445	1	Hydraulic Hose	30.1752" X 965 mm (38") X 1"
7	-	1	Part 7	Ride Control Valve Components On Separate Page, AT332291 NLA, ORDER AT442499
7	AT442499	1	Hyd Actuated Control Valve	Ride Control Valve Components On Separate Page
8	38H1163	1	Adapter Fitting	-
9	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
10	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	38H1162	1	Adapter Fitting	-
12	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
13	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
14	38H1009	1	Elbow Fitting	-
15	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
16	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	RE60700	1	Diagnostic Coupling	-
18	R77175	1	Cover	-
19	24M7296	6	Washer	10.500 X 30 X 2.500 mm
20	19M8896	2	Screw	M10 X 140, SUB FOR 19M7898
21	14M7400	6	Lock Nut	M10
22	38H1013	1	Elbow Fitting	-
23	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
24	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
25	AT207010	1	Hydraulic Hose	13/16" X 711 mm (28") X 13/16"
26	38H1175	1	Adapter Fitting	-
27	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
28	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
29	38H1007	1	Elbow Fitting	-
30	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
31	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
32	AT228189	1	Hydraulic Hose	30.1752" X 1030 mm (40-1/2") X 30.1752"
33	AT383880	1	Accumulator Kit	Ride Control Accumulator, INCLUDES AT196760
33	AT196760	1	Valve Kit	Accumulator Gas Valve
34	38H1194	1	Adapter Fitting	-
35	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
36	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
37	T146490	2	Clamp	-
38	19M7804	4	Screw	M10 X 40
39	T180944	1	Label	Warning Accumulator
40	T146792	2	Safety Sign	Warning Ride Control
41	T158047	1	Adapter Fitting	-
42	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
43	AT223535	1	Pressure Switch	Ride Control Pressure Switch
44	R26287	1	O-Ring	7.645 X 1.626 mm (0.301" X 0.064")
