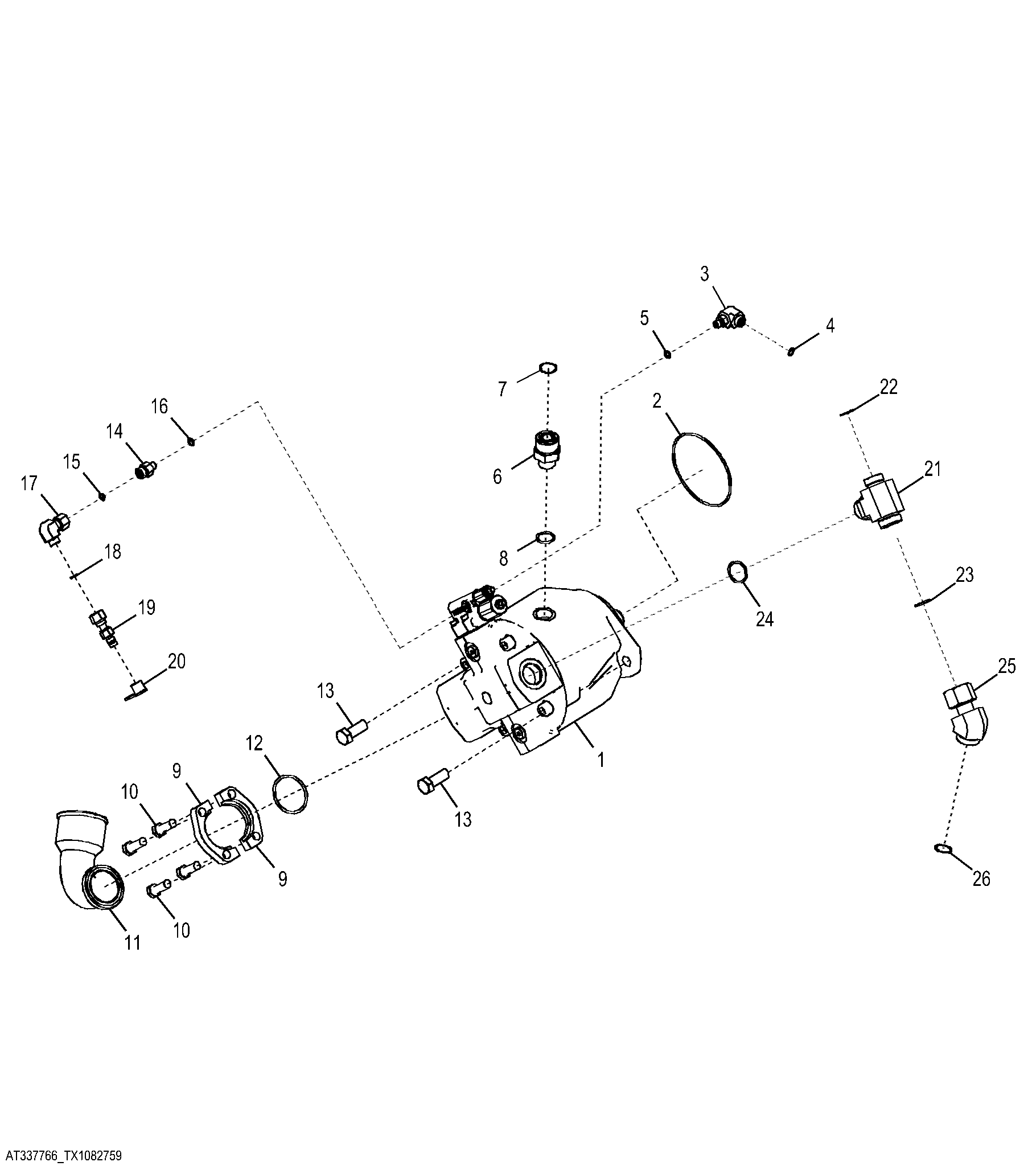

Main Hydraulic Pump (625725 - 642121)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200858	1	Hydraulic Pump Reman	REMAN FOR AT337775
1	AT310889	1	Seal Kit	-
1	AT334877	1	Pump/Valve Controller	-
1	AT341165	1	Seal Kit	Pump Controller Seal Kit
1	T201521	1	Gasket	Controller Seal Plate
1	AT337775	1	Hydraulic Pump	-
2	T107883	1	O-Ring	124 X 3 mm (4.882" X 0.118")
3	38H1435	1	Elbow Fitting	-
4	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
5	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
6	38H1179	1	Adapter Fitting	-
7	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
8	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
9	R37023	2	Flange Fitting	-
10	19H2993	4	Cap Screw	1/2" X 1-1/2"
11	T158298	1	Line	-
12	F1870R	1	O-Ring	56.744 X 3.531 mm (2-15/64" X 0.139")
13	19M7488	2	Cap Screw	M16 X 40
14	38H1309	1	Adapter Fitting	-
15	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
17	38H1094	1	Elbow Fitting	-
18	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	RE60701	1	Diagnostic Coupling	-
20	R77175	1	Cover	-
21	38H1437	1	Tee Fitting	-
22	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
23	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
24	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
25	38H1622	1	Adapter Fitting	-
26	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")

Main Hydraulic Pump (625725 - 642121)
