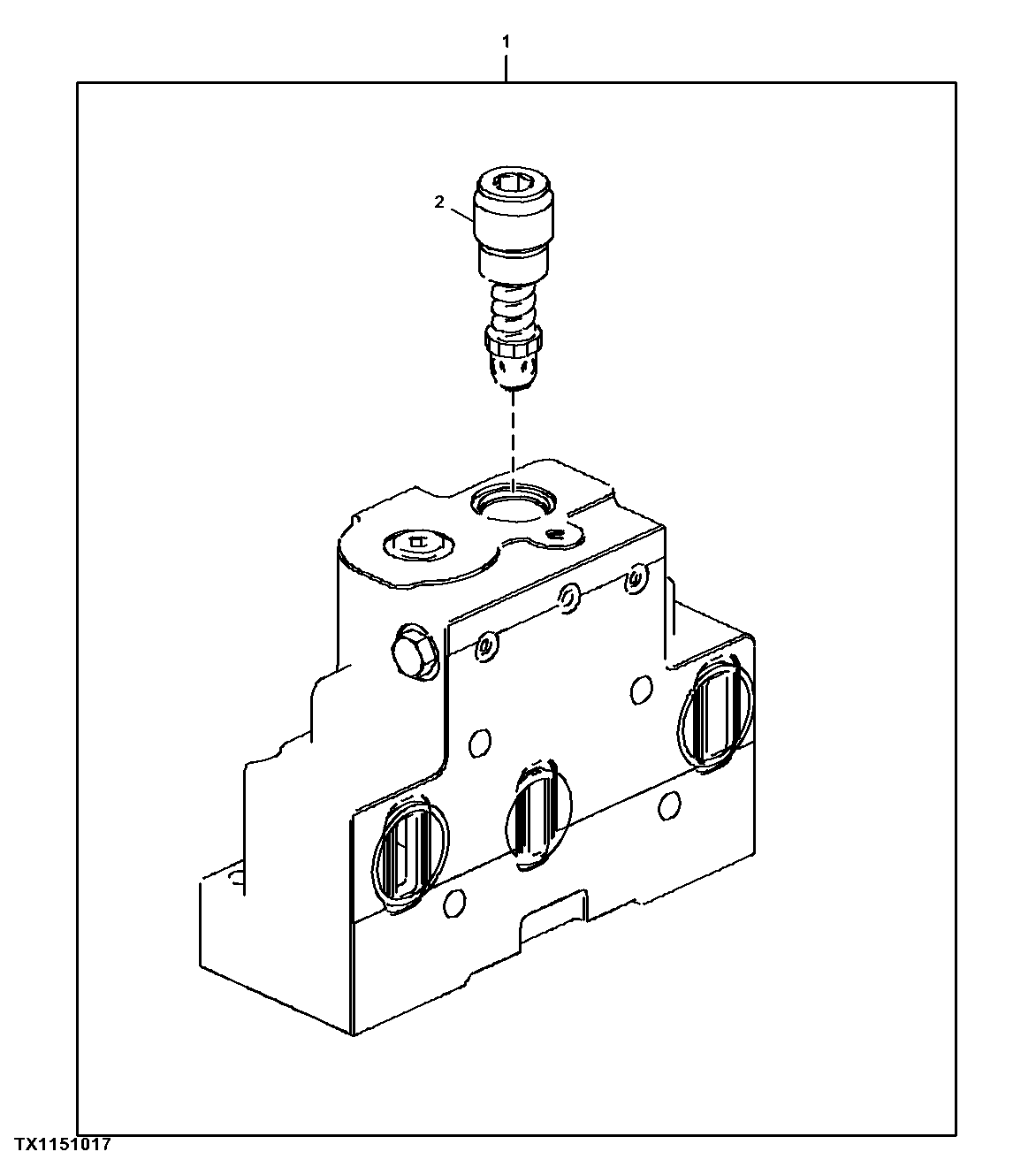

Loader Control Valve, Inlet Section

Loader Control Valve, Inlet Section
Loader Control Valve, Inlet Section
Нет текстового описания
Открытый узел
Loader Control Valve, Inlet Section

Нет текстового описания
| № на схеме | Серийный номер | Кол-во | Название | Описание | |
|---|---|---|---|---|---|
| 1 | AT314008 | 1 | Valve | - | |
| 1 | AT314017 | 1 | Seal Kit | Inlet Section and Interface Seal Kit | |
| 2 | AT314015 | 1 | Pressure Relief Valve | INCLUDES U15192 | |
| 2 | U15192 | 1 | O-Ring | Not Illustrated | |
| 3 | AT314016 | 1 | Orifice | Not Illustrated |
