Открытый узел

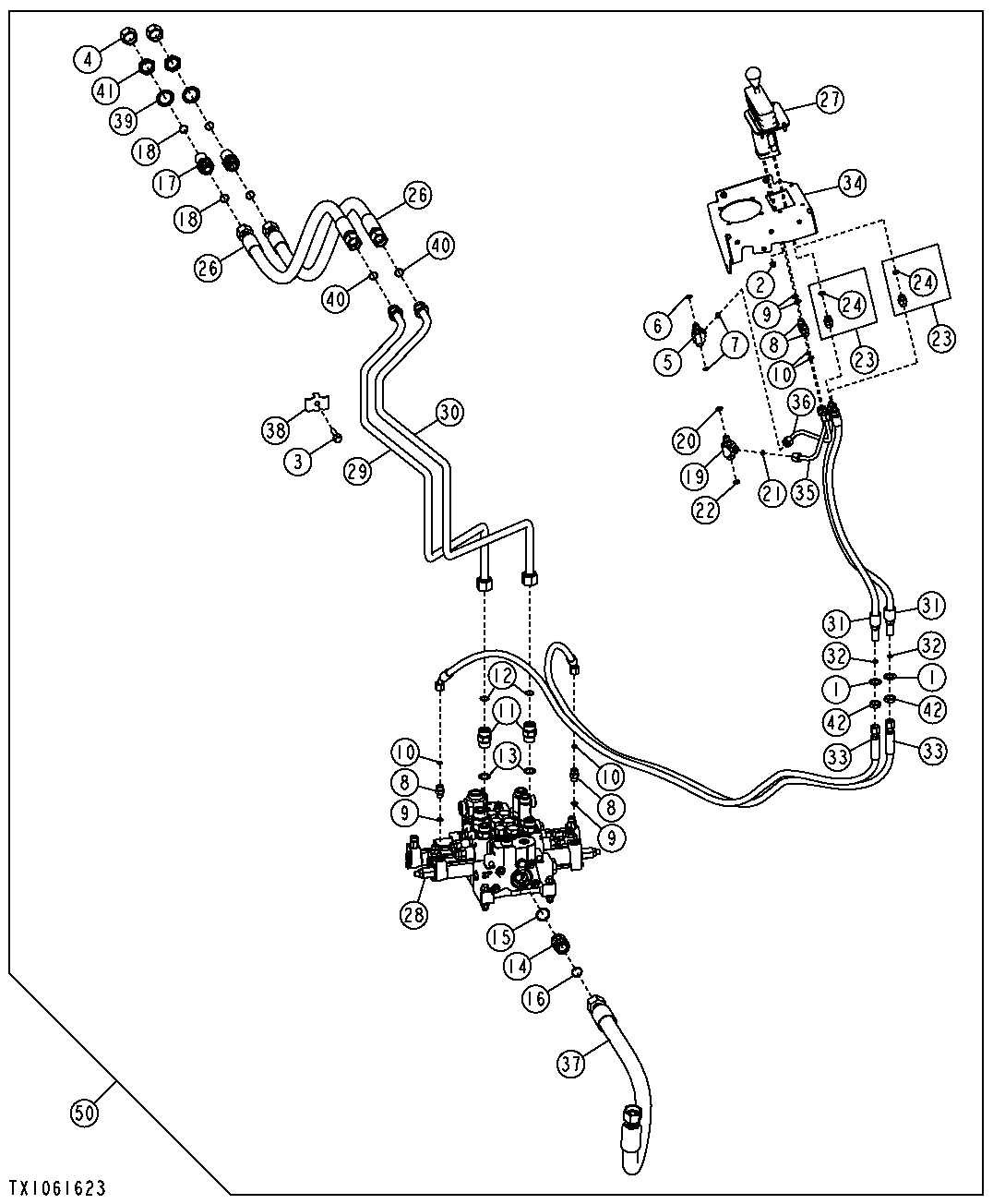

Joystick To Joystick with Auxiliary Lever Conversion Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H327	2	Lock Washer	3/4"
2	14M7397	4	Lock Nut	M6
3	19M7805	1	Screw	M10 X 45
4	38H1418	2	Fitting	-
5	38H1023	1	Tee Fitting	-
6	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	38H1160	4	Adapter Fitting	-
9	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	38H1163	2	Adapter Fitting	-
12	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1164	1	Adapter Fitting	-
15	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
16	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
17	38H1276	2	Adapter Fitting	-
18	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
19	38H1642	1	Adapter Fitting	-
20	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
21	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
22	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
23	62H1001	2	Adapter Fitting	SUB FOR 63H1001
24	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25	AT105438	4	Rod	Three Spool Stud Assembly Not Illustrated
26	AT191285	2	Hydraulic Hose	30.1752" X 1295 mm (51") X 30.1752"
27	AT228250	1	Hydr./Pilot Control Valve	Auxiliary Single Lever Controller Components Listed On Separate Page
28	AT314046	1	Valve	Auxiliary Valve Section Components Listed On Separate Page
29	AT314959	1	Oil Line	-
30	AT314960	1	Oil Line	-
31	AT336507	2	Hydraulic Hose	Fabricate
32	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
33	AT340580	2	Hydraulic Hose	Fabricate
34	AT341527	1	Plate	-
35	AT342616	1	Oil Line	-
36	AT342617	1	Oil Line	-
37	AT349341	1	Hydraulic Hose	-
37	AT367549	1	Hydraulic Hose	Fabricate
38	T160549	1	Clamp	-
39	T174275	2	Lock Washer	30.950 mm (1-7/32")
40	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
41	T78707	2	Nut	30.175 mm (1-3/16")
42	T81029	2	Nut	17.475 mm (11/16")
50	AT337485	1	Field Installation Kit	Whole Goods
50	AT371363	1	Hose Kit	Whole Goods

Joystick To Joystick with Auxiliary Lever Conversion Kit

Нет текстового описания
