Joystick Pilot Controller With Forward Neutral Reverse (FNR) Switch and Auxiliary Control Lever

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT228250	1	Hydr./Pilot Control Valve	Auxiliary Control Lever Components Listed On Separate Page
2	AT362746	1	Hydr./Pilot Control Valve	Joystick Controller With Forward Neutral Reverse (FNR) Components Listed On Separate Page, ORDER AT488662
2	AT488662	1	Hydr./Pilot Control Valve	-
3	19M9831	4	Screw	M6 X 16
4	38H1023	1	Tee Fitting	-
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	38H1023	1	Tee Fitting	-
7	38H1642	1	Adapter Fitting	-
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	38H1160	2	Adapter Fitting	-
12	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
13	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	62H1001	6	Adapter Fitting	SUB FOR 63H1001
15	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	AT344124	1	Hydraulic Hose	Fabricate
17	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	AT344125	1	Hydraulic Hose	Fabricate
18	AT363800	1	Hydraulic Hose	Fabricate
19	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
20	AT336507	1	Hydraulic Hose	Fabricate
21	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
22	AT336507	1	Hydraulic Hose	Fabricate
23	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
24	AT336507	1	Hydraulic Hose	Fabricate
25	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
26	AT336507	1	Hydraulic Hose	Fabricate
27	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	AT336507	1	Hydraulic Hose	Fabricate
29	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
30	AT336507	1	Hydraulic Hose	Fabricate
31	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
32	AT342616	1	Oil Line	-
33	AT342617	1	Oil Line	-
34	T81029	7	Nut	17.475 mm (11/16")
35	T78716	1	Nut	20.625 mm (13/16")
36	T197182	1	Label	Joystick Controls With Forward Neutral Reverse (FNR)
37	AT352891	1	Plate	-
38	19M7868	2	Screw	M8 X 30
39	T125994	2	Plug	-
40	T196079	2	Nut	M8
41	T230554	1	Conduit	-
42	AT341527	1	Plate	-
43	14M7397	4	Lock Nut	M6, SUB FOR 14M7592
44	-	1	Part 48	MAKE FROM T66419, CTL 0.671 m (2.2 ft)
45	12H328	1	Lock Washer	7/8"
46	12H327	7	Lock Washer	3/4"
47	R44302	1	Tie Band	-
48	T212304	1	Tool	Snap To Connect (STC) Release Tool

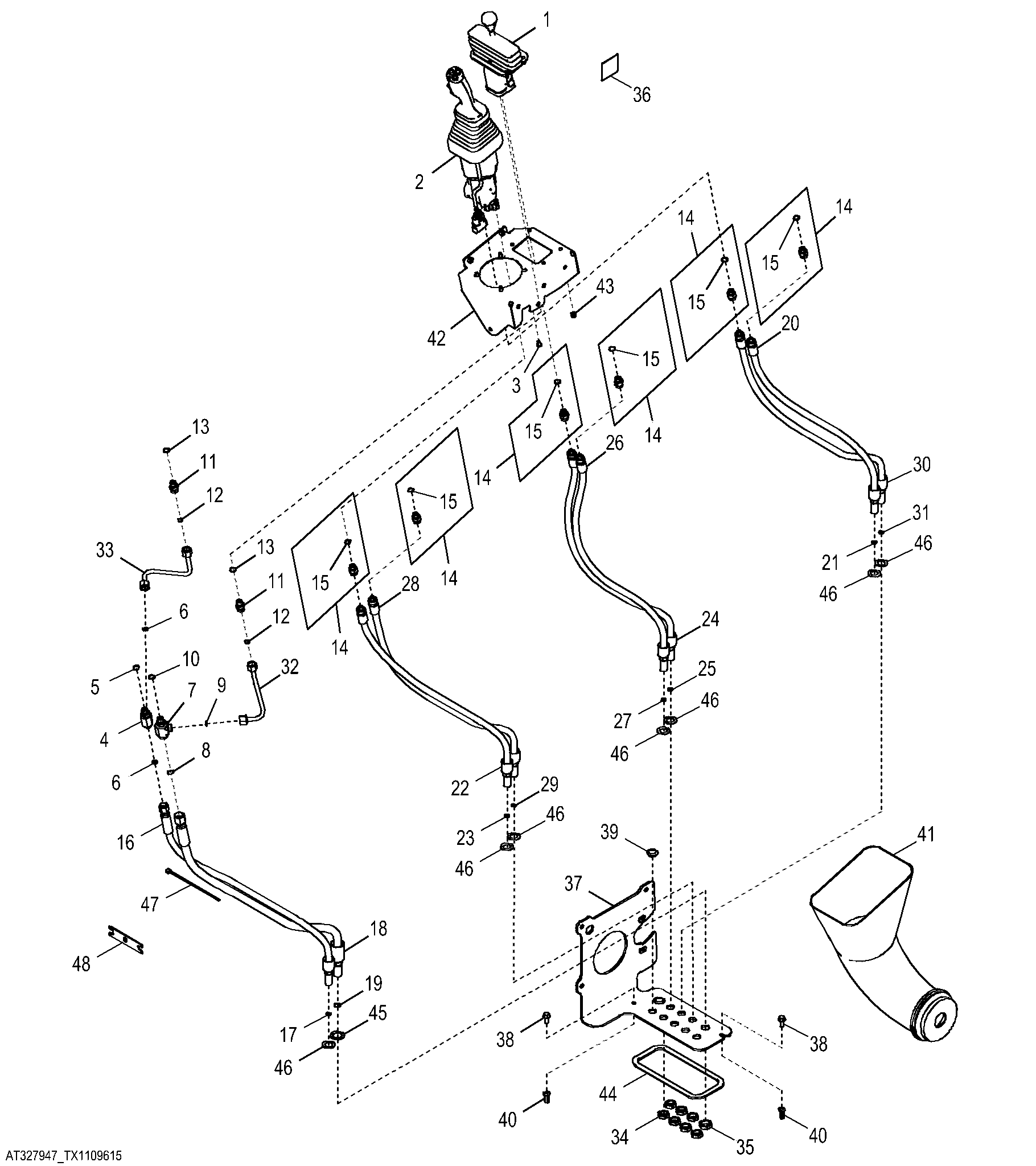

Joystick Pilot Controller With Forward Neutral Reverse (FNR) Switch and Auxiliary Control Lever
