Открытый узел

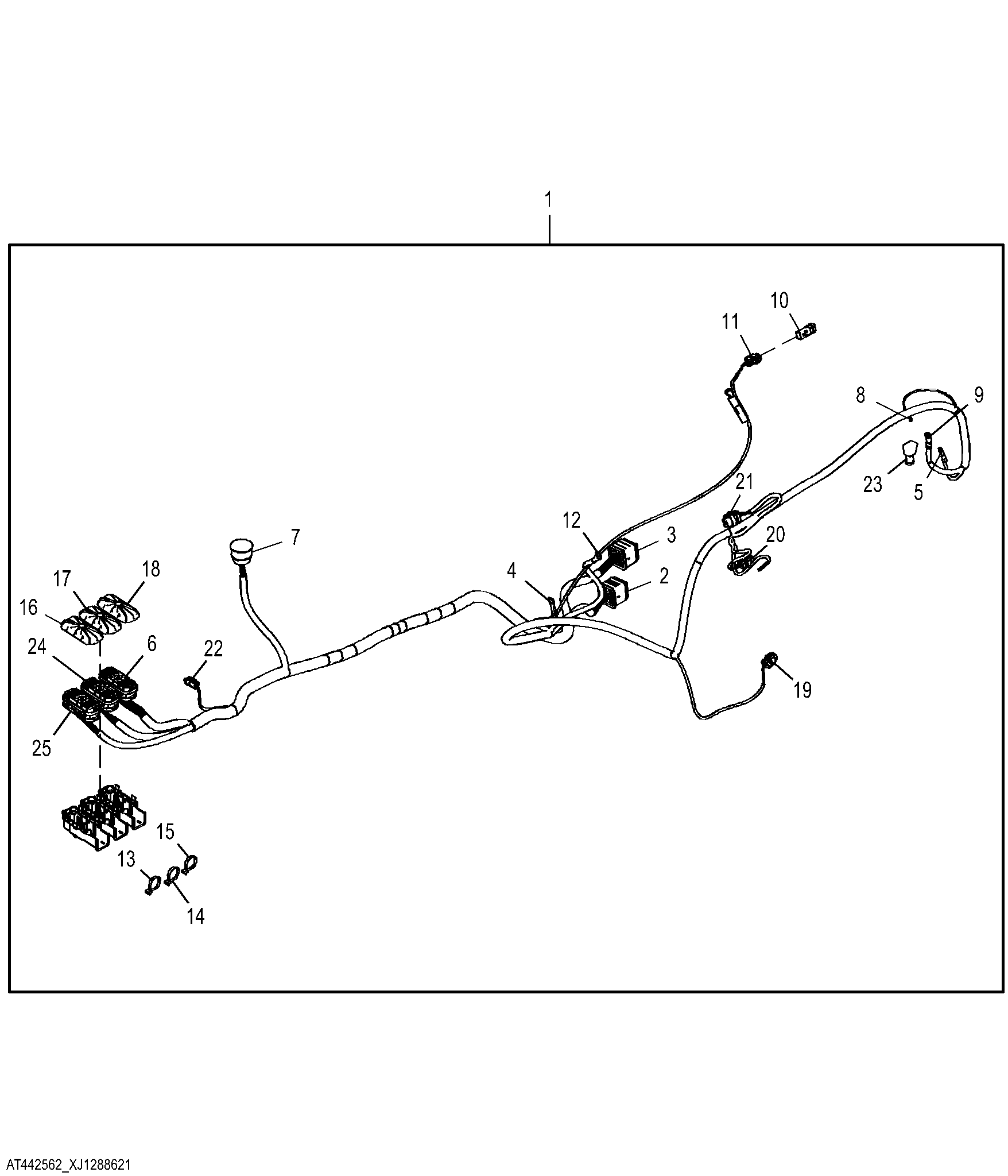

Engine Wiring Harness and Connectors (661438 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT442562	1	Wiring Harness	-
2	57M10793	1	Elec. Connector Housing	To Engine Connector 2, F
2	Z64310	3	Elec. Connector Terminal	-
2	57M8263	35	Elec. Connector Terminal	-
2	R78069	2	Elec. Connector Cavity Plug	-
3	57M10141	1	Elec. Connector Housing	To Engine Connector 1, E
3	57M8263	39	Elec. Connector Terminal	-
3	R78069	1	Elec. Connector Cavity Plug	-
4	57M9952	1	Elec. Connector Terminal	Starter Motor B Positive, H
5	57M9944	1	Elec. Connector Terminal	Alternator Ground, L
6	RE538505	1	Elec. Connector Accessory	Electronic Control Unit 3, C
6	57M8263	18	Elec. Connector Terminal	-
6	57M9814	36	Elec. Connector Cavity Plug	-
7	57M8110	1	Electrical Connector Assy	-
8	57M11361	1	Elec. Connector Terminal	-
9	57M9945	1	Elec. Connector Terminal	Alternator B Positive, K
9	57M11064	1	Elec. Connector Accessory	-
10	57M9776	1	Elec. Connector Housing	-
11	57M9772	1	Elec. Connector Housing	Air Conditioning Clutch, N
11	R78065	2	Elec. Connector Terminal	-
11	57M11333	1	Elec. Connector Accessory	-
12	57M9952	1	Elec. Connector Terminal	Starter Motor Ground, J
13	R44302	1	Tie Band	-
14	R44302	1	Tie Band	-
15	R44302	1	Tie Band	-
16	R529159	1	Cap	-
17	R529159	1	Cap	-
18	R529159	1	Cap	-
19	57M9726	1	Elec. Connector Housing	Water In Fuel, U
19	R78065	2	Elec. Connector Terminal	-
20	57M9729	1	Elec. Connector Housing	Fuel Transfer Pump, T
20	57M7542	2	Elec. Connector Terminal	-
20	57M9733	1	Elec. Connector Housing	-
21	57M9751	1	Elec. Connector Housing	-
22	R78065	3	Elec. Connector Terminal	-
22	57M8019	1	Elec. Connector Terminal	-
22	57M8018	1	Electrical Connector Assy	ECU CAN, G
23	57M11064	1	Elec. Connector Accessory	-
24	RE538504	1	Elec. Connector Accessory	ECU 2, B
24	57M8263	33	Elec. Connector Terminal	-
24	57M9814	20	Elec. Connector Cavity Plug	-
24	Z64310	1	Elec. Connector Terminal	-
25	RE538503	1	Elec. Connector Accessory	ECU 1, A
25	57M8263	33	Elec. Connector Terminal	-
25	57M9814	20	Elec. Connector Cavity Plug	-
25	Z64310	1	Elec. Connector Terminal	-
25	R528122	1	Elec. Connector Accessory	-

Engine Wiring Harness and Connectors (661438 - )
