Открытый узел

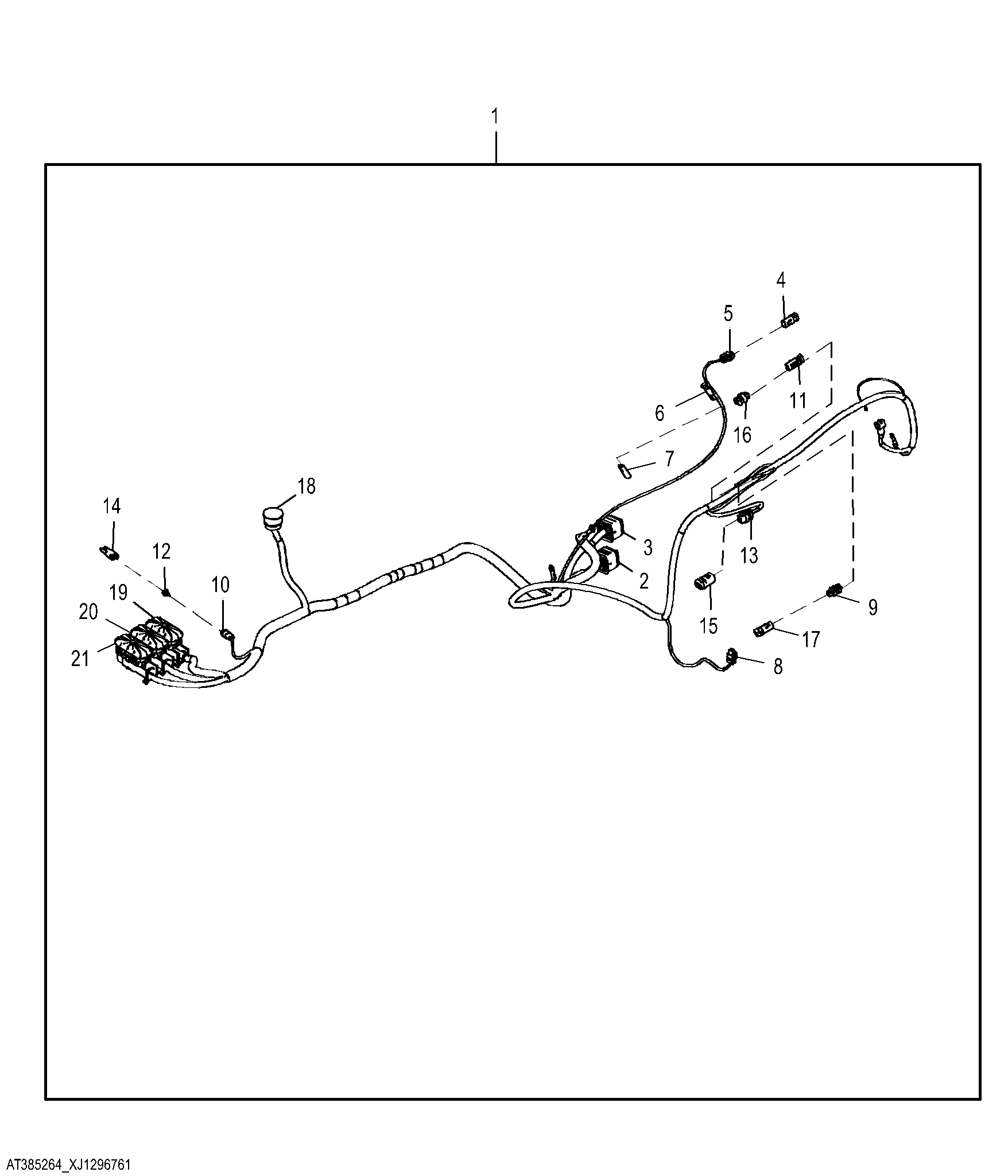

Engine Wiring Harness and Connectors ( - 661437)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT385264	1	Wiring Harness	-
2	57M10793	1	Elec. Connector Housing	To Engine Connector 2, F
2	Z64310	3	Elec. Connector Terminal	-
2	57M8263	35	Elec. Connector Terminal	-
2	R78069	2	Elec. Connector Cavity Plug	-
3	57M10141	1	Elec. Connector Housing	To Engine Connector 1, E
3	57M8263	38	Elec. Connector Terminal	-
3	R78069	1	Elec. Connector Cavity Plug	-
3	R78065	1	Elec. Connector Terminal	-
4	57M9776	1	Elec. Connector Housing	-
5	57M9772	1	Elec. Connector Housing	Air Conditioning Clutch, N
5	R78065	2	Elec. Connector Terminal	-
5	57M11333	1	Elec. Connector Accessory	-
6	-	1	Part 14	Air Conditioning Clutch Diode, P
6	57M10686	2	Elec. Connector Terminal	-
6	57M10689	2	Elec. Connector Terminal	-
7	AR94101	1	Diode	-
8	57M9726	1	Elec. Connector Housing	Water in Fuel, U
8	R78065	2	Elec. Connector Terminal	-
9	57M9729	1	Elec. Connector Housing	Fuel Transfer Pump, T
9	57M7542	2	Elec. Connector Terminal	-
9	57M9733	1	Elec. Connector Housing	-
10	57M8018	1	Electrical Connector Assy	ECU CAN, G
10	R78065	3	Elec. Connector Terminal	-
10	57M8019	1	Elec. Connector Terminal	-
11	57M9730	1	Elec. Connector Housing	Pump Register, V
11	57M7541	2	Elec. Connector Terminal	-
11	57M9726	1	Elec. Connector Housing	-
12	57M8221	1	Elec.Connect Locking Device	-
13	57M7542	1	Elec. Connector Terminal	-
13	R78065	3	Elec. Connector Terminal	-
13	57M9814	1	Elec. Connector Cavity Plug	-
13	57M9790	1	Elec. Connector Housing	-
13	57M9787	1	Elec. Connector Housing	Fuel Transfer Pump, R
14	57M8020	1	Elec. Connector Housing	-
15	57M9790	1	Elec. Connector Housing	-
16	57M9726	1	Elec. Connector Housing	-
17	57M9733	1	Elec. Connector Housing	-
18	57M7667	1	Electrical Connector Assy	To Load Center, D
18	R78069	9	Elec. Connector Cavity Plug	-
18	R78065	18	Elec. Connector Terminal	-
18	57M7542	4	Elec. Connector Terminal	-
19	RE538503	1	Elec. Connector Accessory	ECU 1, A
19	R528122	1	Elec. Connector Accessory	-
19	57M9814	11	Elec. Connector Cavity Plug	-
19	Z64310	2	Elec. Connector Terminal	-
19	57M8263	41	Elec. Connector Terminal	-
20	RE538504	1	Elec. Connector Accessory	ECU 2, B
20	57M8263	33	Elec. Connector Terminal	-
20	57M9814	20	Elec. Connector Cavity Plug	-
20	Z64310	1	Elec. Connector Terminal	-
20	R528122	1	Elec. Connector Accessory	-
21	RE538505	1	Elec. Connector Accessory	ECU 3, C
21	57M8263	18	Elec. Connector Terminal	-
21	57M9814	36	Elec. Connector Cavity Plug	-
21	R528122	1	Elec. Connector Accessory	-

Engine Wiring Harness and Connectors ( - 661437)

Нет текстового описания
